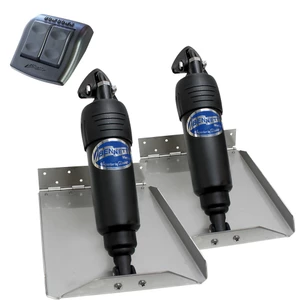

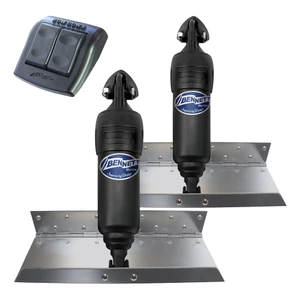

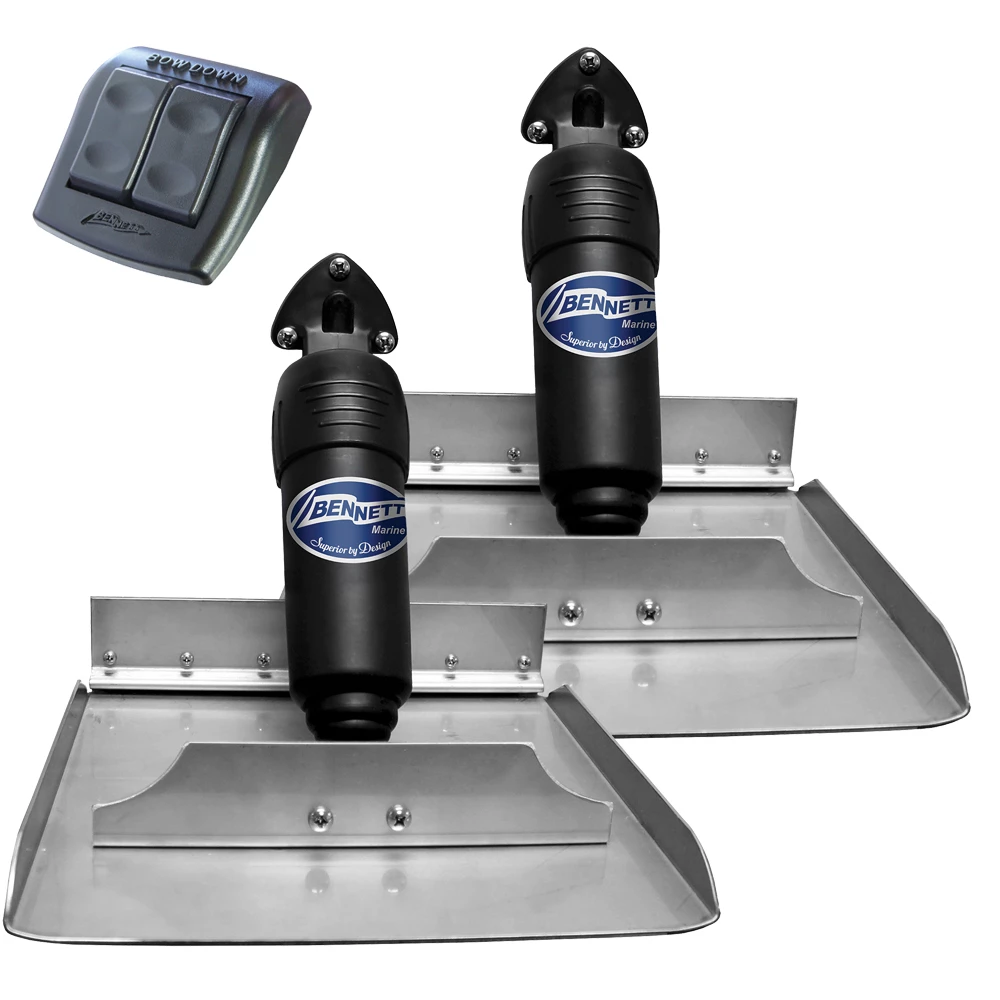

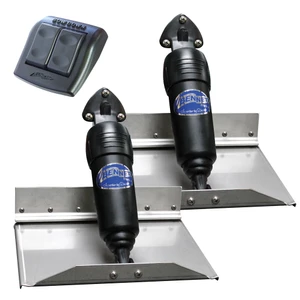

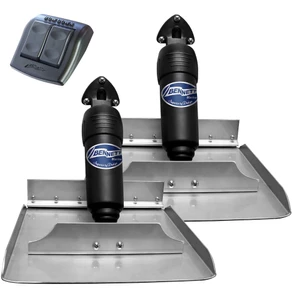

Bennett Marine Bolt Electric Trim Tab Kit With Rocker Control

Bennett BOLT Electric Trim Tab Kits deliver power, precision and durability, allowing the skipper to get the best performance from the boat, reducing fuel consumption and improving pitching and porpoising, promoting earlier planing and reducing time in displacement mode.

BOLT electric actuators stop and start immediately with the press of the switch, they provide precise control and instant response time, they are simpler to fit and do not require the installation of hydraulic hoses or a pump.

This system comes complete with the Rocker Control (BRC4000), an entry level ergonomically designed, water resistant control that provides a distinctive ‘click’ when operated.

Features

• Lifetime warranty for electric actuators
• Water-tight design provides trouble-free operation for years
• Installation is fast and simple
• Reduce fuel consumption
• Minimise labouring of engines
• Minimise hull stress through pounding
• Reduce boat wake
• Eliminate squatting, listing and porpoising
• Improve visibility
• Increase speed whilst reducing fuel consumption
• Multiple control options, tab sizes, and mounting options available

Sizing guidelines

In general the widest span tabs that will fit on the transom will be the most effective. The greater the surface area, the greater the lift. We‘ll typically recommend a 9” chord tab (length), but depending on available transom space a shorter or longer chord tab, or specially shaped tabs with upfins or dropfins may be advised.

As a general rule for boats with max speeds of 40MPH, choose at least one inch of trim tab span (per side) for every foot of boat length. For example, a 22′ boat would use a 24”x9”.

For speeds 40MPH and over, we’ll generally point you to a Performance, or Premier Line high-performance systems.

Choose the approximate tab size for your boat using the sizing chart below. Make sure the tabs will fit your transom using the diagrams shown as a guideline. When measuring, disregard the strakes and follow the Vee of the hull.

The sizing guidelines above are intended to assist in the selection of tab sizes for vessels that do not currently have tabs installed by the boat manufacturer.

In the Box

• 12-volt fixed upper hinge actuators with 6-ft. wire harnesses and waterproof connectors (BEA2000) * 2
• Stainless steel trim planes (tabs) and mounting plates * 2
• 20-ft. wire harnesses with waterproof connectors (BAW2020) * 2
• Rocker switch(BRC4000)
• Installation instructions
