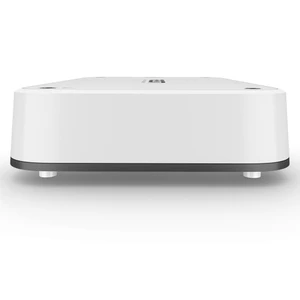

Fusion Apollo Marine Amplifier

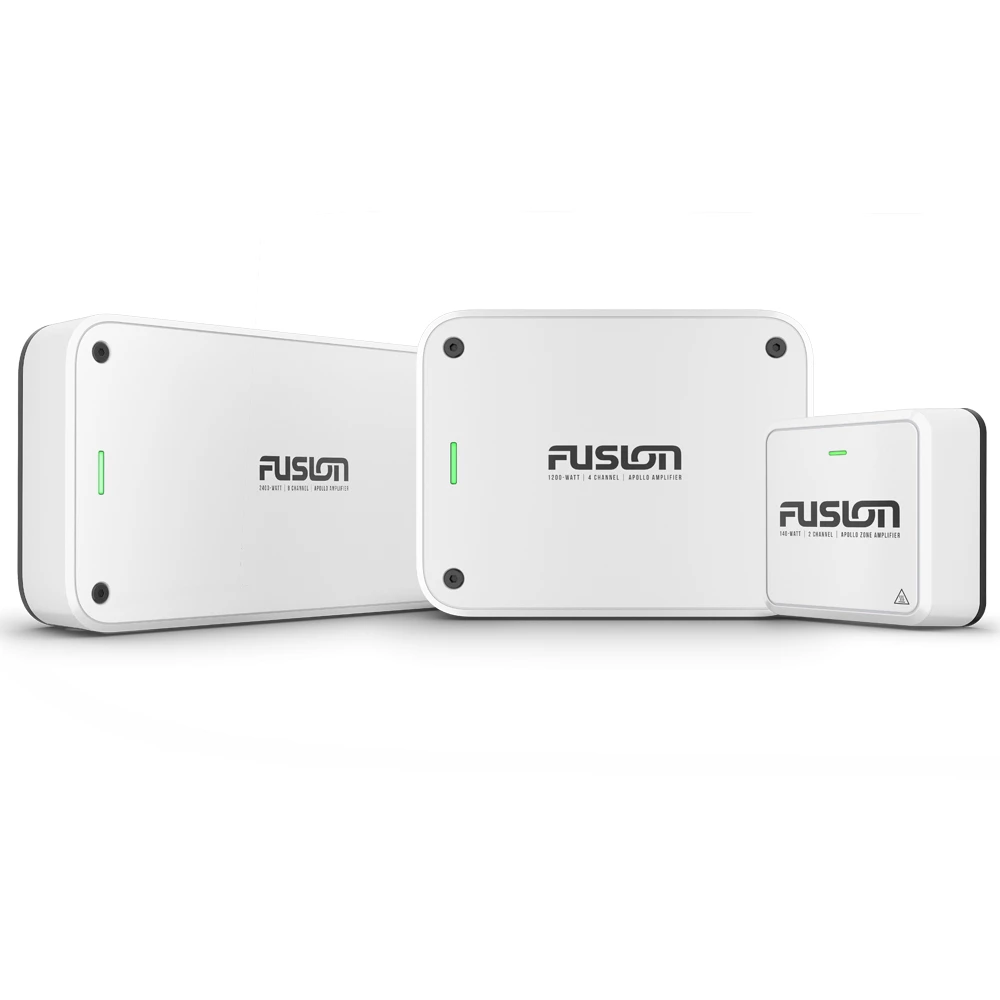

Available in 4 channel, 6 channel, 8 channel configurations, these amplifiers enhance audio clarity and reduce distortion for a superior onboard entertainment experience. These amplifiers are designed exclusively for use with Fusion DSP-enabled stereos (Apollo RA770, Apollo RA670, Apollo WB670 and RA210) and Fusion speakers

They are efficient, easy to install and work with your compatible Fusion stereo system. They all use less power, so you can listen to music longer with less drain on your battery. Plus, the Easy Tune feature automatically regulates audio settings for the best sound quality without manual adjustments. Identify electrical or temperature issues with just a glance at the amp’s LED indicators. The included mounting brackets make this amp easy to install and ideal for your setup.

More Power, Better Performance

With an impressive 150-watt RMS per channel, High Power Mode and reduced Total Harmonic Distortion (THD), the Apollo marine amplifiers deliver clearer audio at higher volume levels to allow you to truly feel the music. The amplifiers also feature Multiple Protection Modes and are ignition protected to perform and last on board.

Simple Installation and Setup

The Easy Tune Functionality makes setting up your amplifier easier than ever with a Fusion-Link™ wireless connection from a compatible mobile device. Simply select the relevant DSP audio profiles from the Fusion-Link app to sync and tune the amplifier for optimal audio reproduction – no fine-tuning or adjusting complex audio settings required. Mounting brackets are also included in the box to simplify installation, allowing you to clip the amplifier in place for a clean finish.

Built for the Marine Environment

The Apollo marine amplifiers are True-Marine™ designed and come with a 3-year warranty. Built to last season after season, they have been tested to a high level of salt fog, temperature, vibration and UV protection. Enclosed in a slick, white powder-coated aluminium chassis – they add style to any boat with their modern aesthetic design.

Features

• Impressive Power: 150-watt RMS per channel (at 4 ohms)
• Efficient Class-D Design: Uses less power, so you can listen to music for longer at higher volumes, with less drain on the battery.
• Easy Tune Feature: Automatically adjusts audio settings for the best possible sound quality with no manual adjustments required (Requires setup using the Fusion-Link app on a compatible smartphone).
• LED Indicator: Show issues with electrical currents and shorts as well as temperature.
• Less Total Harmonic Distortion: The amplifier is designed with minimal distortion and noise, allowing for better quality audio.
• Ignition Protected: Intelligent electronic fuse prevents damage from over/under current, temperature, output short and other faults.
• Conformal Coated PCBs: The amplifier circuit board has been specially coated to provide enhanced protection from the marine elements.
• Powder Coated Aluminium Finish: Salt fog, temperature, vibration and UV tested with a modern aesthetic design to add style to your boat.
• Easy Installation: Proprietary cable connectors and a mounting bracket is included in the box. The cable connectors allow you to pre-wire your speakers/subwoofers, while the mounting bracket allows you to simply clip the amplifier in place for a clean finish.
• True-Marine™ Design: Designed to withstand the harshest marine environments season after season and comes with a 3-year warranty.

Specifications

All Models

• Water Rating: IPX2
• Amplifier Class: Class-D
• Input Sensitivity: 1.3 V RMS
• Input Impedance: 22k ohm
• Operating Voltage: 10.8 V - 16 V DC
• Current Consumption (StandBy): < 5 mA @ 14.4 V input
• Ignition Safety Protected (SAE J1171): Yes
• Protection Circuits: Reverse voltage, input under/over voltage, over temperature, output short circuit
• Operating Temperature Range: 32° to 122° F (0° to 50° C)
• Warranty: 3 years

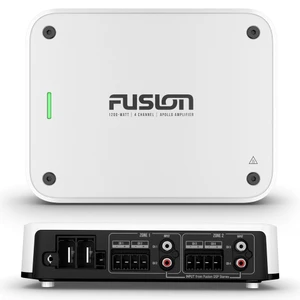

4 Channel

• Physical Dimensions Without Bracket (WxHxD): 235 x 180 x 45 mm
• Physical Dimensions With Bracket (WxHxD): 235 x 180 x 50 mm
• Weight: 2.2 kg
• CEA-2006 Power Rating: 150 W RMS x 4 @ 14.4 V input - 4 ohm < 1% THD
• Peak Power (watt) 1200 W
• Current Consumption (Idle): < 1.15 A @ 14.4 V input
• Current Consumption (Max): 53A
• Fuse Rating: 85 A electronic fuse (no replacement necessary)

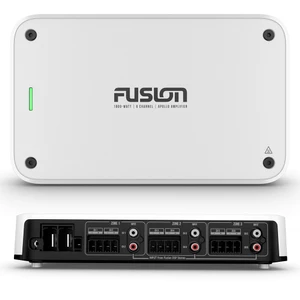

6 Channel

• Physical Dimensions Without Bracket (WxHxD): 297 x 180 x 45 mm
• Physical Dimensions With Bracket (WxHxD): 297 x 180 x 50 mm
• Weight: 2.7 kg
• CEA-2006 Power Rating: 150 W RMS x 6 @ 14.4 V input - 4 ohm < 1% THD
• Peak Power (watt) 1800 W
• Current Consumption (Idle): < 1.32 A @ 14.4 V input
• Current Consumption (Max): 78A
• Fuse Rating: 125 A electronic fuse (no replacement necessary)

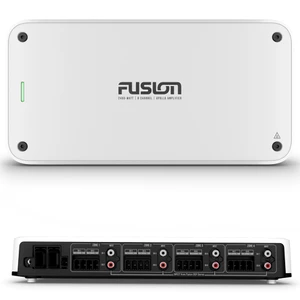

8 Channel

• Physical Dimensions Without Bracket (WxHxD): 359 x 180 x 45 mm
• Physical Dimensions With Bracket (WxHxD): 359 x 180 x 50 mm
• Weight: 3.15 kg
• CEA-2006 Power Rating: 150 W RMS x 8 @ 14.4 V input - 4 ohm < 1% THD
• Peak Power (watt) 2400 W
• Current Consumption (Idle): < 1.60 A @ 14.4 V input
• Current Consumption (Max): 104A
• Fuse Rating: 125 A electronic fuse (no replacement necessary)

In The Box

• Apollo Multichannel Amplifier
• Connection Terminal blocks
• Quick mount bracket and screws
• Installation instructions

Click here for the installation manual
