Garmin GPSMAP 1223xsv With GMR 18 HD3 Radome Bundle

Catalogue Code: 220727
£3,959.95
In Stock Online
Save £440.04 RRP £4,399.99
See Product Description Check Stock in Store Add to Wish List
  • Get it on Thursday, 14th November if ordered within the next --:--:-- and select Next Day Delivery *UK Mainland Only
  • Ask a question
Optional Extras Tick to add optional extras to your basket
SteadyCast Heading Sensor
SteadyCast Heading Sensor £164.95 Save £15.04 RRP £179.99
  • Description
  • Videos
  • Availability
  • Delivery & Returns
  • Reviews
Description

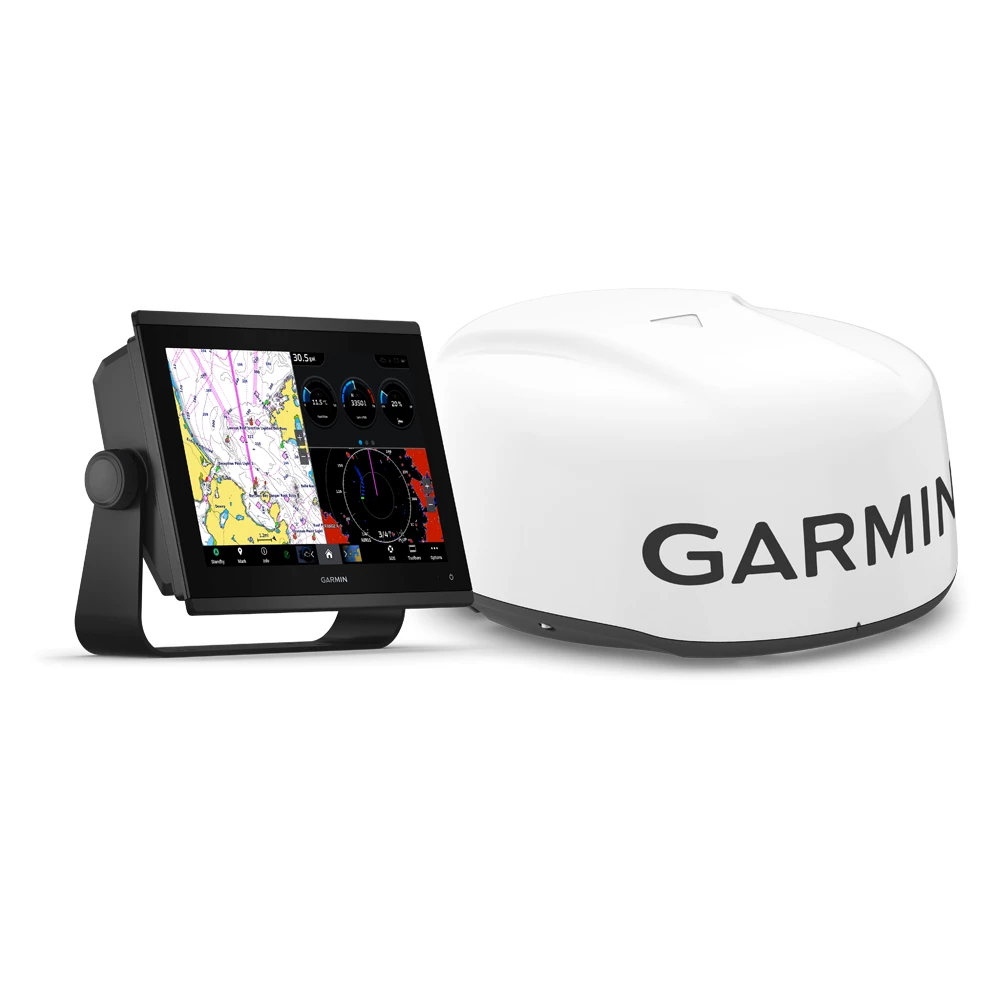

Garmin GPSMAP 1223xsv With GMR 18 HD3 Radome Bundle

A chartplotter and radar bundle consisting of the GPSMAP 1223xsv multifunction display and the compact 4 kW GMR™ HD3 18” dome radar.

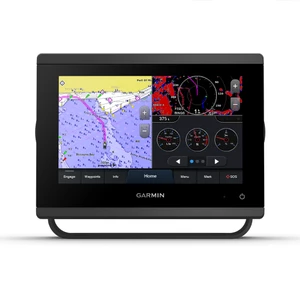

GPSMAP 1223xsv

With more display pixels and nearly double the processing power of previous-generation GPSMAP devices, this crisp high-resolution chartplotter integrates seamlessly into your Garmin marine system.

FASTER, SHARPER, SMARTER

With its added processing power and new slimline design featuring edge-to-edge glass and a smaller unit footprint, it’s easy to retrofit this plotter in a wider range of dash configurations.

ULTRA HIGH-DEFINITION SCANNING SONAR

Get built-in Ultra High-Definition SideVü and ClearVü scanning sonars with vivid, high-contrast colour palettes to help distinguish fish from structure. GPSMAP 923xsv also supports 1 kW CHIRP traditional sonar capabilities.

PANOPTIX SONAR SUPPORT

Pair with Panoptix or Panoptix LiveScope easy-to-interpret live sonar (transducer sold separately) with FrontVü scanning sonar4 to help you see and avoid submerged obstacles in real time as you approach within a 91-metre range.

IMPROVED DISPLAY OPTICS

New higher-resolution displays offer improved sunlight readability with more pixels than previous-generation GPSMAP devices.

GARMIN SAILASSIST SAILING FEATURES

View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed and more.1

OPTIONAL BLUECHART G3 VISION CHARTS

These optional charts offer the best of Garmin and Navionics data, Auto Guidance2 technology and other premium navigation features.

GARMIN MARINE NETWORK

If you have multiple compatible Garmin devices on your boat, you can share information — such as maps, user data, radar and IP camera video — among them.

NMEA 2000 AND NMEA 0183 NETWORKS

Connect to compatible autopilots, digital switching, weather, Fusion-Link audio system, media, VHF, AIS and more from one screen.

ACTIVECAPTAIN APP

Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart feature, smart notifications, software updates, Garmin Helm digital switching, Garmin Quickdraw Community data and more.3

INTEGRATED ANT TECHNOLOGY

Connect with some of your favourite devices, such as quatix marine watches, gWind Wireless 2 transducers, GNX Wind marine instruments and wireless remote control

J1939 CONNECTIVITY

Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines.

ONEHELM FEATURE

This exclusive feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus digital switching, on one screen.

1 Requires compatible wind transducer (Sold separately).

2 Auto Guidance is for planning purposes only and does not replace safe navigation operations.

3 When paired with your compatible smartphone.

4 The ability to effectively avoid forward collisions with FrontVü sonar decreases as speed rises above 8 knots.

Specifications

  • PHYSICAL DIMENSIONS: 30.8 x 22.8 x 8.2 cm
  • DISPLAY SIZE: 26.2 x 16.3 cm
  • DISPLAY RESOLUTION:1280 x 800 pixels
  • DISPLAY TYPE: WSVGA display
  • WEIGHT: 3.0 kg
  • WATER RATING: IPX7
  • TRANSMIT POWER: 1kW Traditional: 1kW CHIRP
  • FREQUENCIES SUPPORTED:(dependent on transducer)
  • Traditional: 50/77/83/200 kHz
  • CHIRP (low, medium, high)
  • ClearVü/SideVü (260/455/800 kHz)
  • POLARISED SUPPORT
  • POWER CONSUMPTION: Typical current draw at 12 Vdc: 1.7 A
  • ANTENNA: Internal or external over NMEA 2000
  • RECEIVER: 10 Hz high-sensitivity
  • MOUNTING OPTIONS: Bail, flush or flat

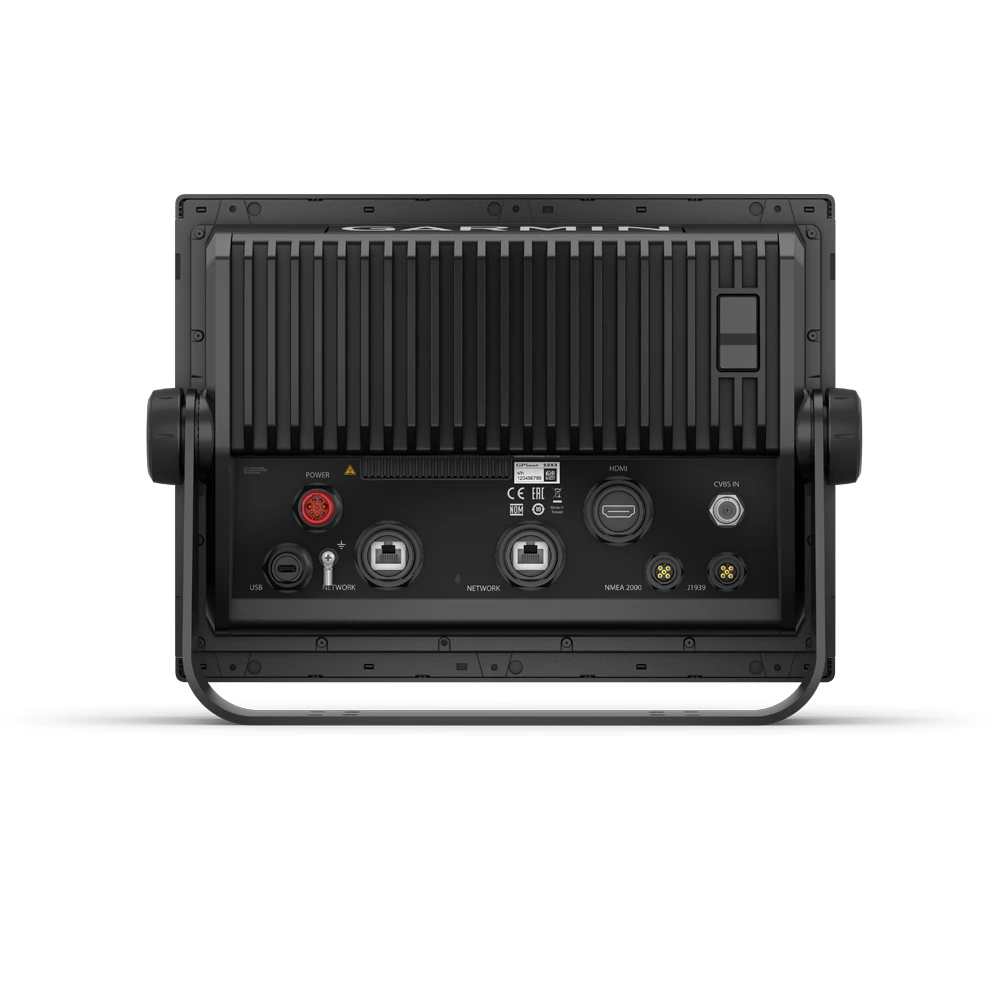

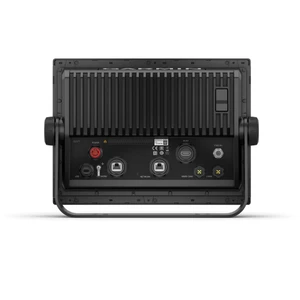

  • GARMIN MARINE NETWORK PORTS: 1
  • NMEA 2000 PORT:1
  • NMEA 0183 PORT: 1
  • VIDEO INPUT PORT: 1 BNC
  • VIDEO OUTPUT PORT: 1 HDMI
  • ACCEPTS DATA CARDS: 2 microSD cards (back of unit)
  • WAYPOINTS: 5,000
  • TRACK LOG: 50,000 points; 50 saved tracks
  • ROUTES: 100

In The Box

  • GPSMAP 1223 XSV chartplotter
  • Power cable
  • NMEA 2000 T-connector
  • NMEA 2000 drop cable (2 metres)
  • Bail mount kit with knobs
  • Flush mount kit with gasket
  • Protective cover
  • Trim piece snap covers
  • Documentation

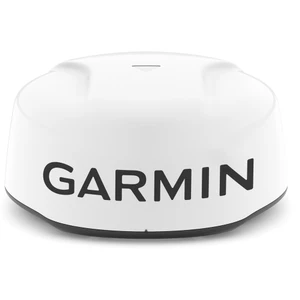

GMR™ HD3 18”​​​​​​​ Radar

For high-performance scanning at an entry-level price, the GMR™ HD3 18” dome radar is designed for mariners who want to make the most of their time on the water. Combining high-definition imaging with Garmin’s latest magnetron platform technology, these robust 4-kW radars offer reliable target detection to maximize situational awareness in low-visibility conditions. The reliable dome drive motor offers low-noise operation and low power consumption to keep things running smoothly at sea. Plus, these radars easily connect to your compatible Garmin chartplotter or MFD via the Garmin Marine Network, delivering crisp, high-resolution image quality and a 36-nautical mile detection range.

  • 18” magnetron dome radar features improved target detection on your compatible Garmin chartplotter/MFD
  • Dual radar support allows each of your compatible chartplotters on your boat to pull data from one of two different radar sources to provide redundancy
  • Dynamic Auto Gain automatically adjusts to your surroundings for optimal performance in all conditions
  • Dynamic Sea Filter automatically adjusts sea clutter based on sea conditions
  • MARPA technology tracks selected targets, helping users keep track of other vessels and avoid collisions (requires heading sensor, sold separately)

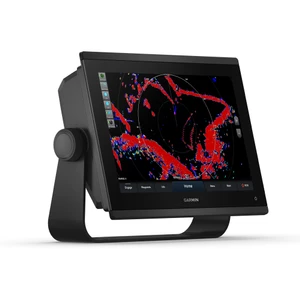

  • Radar overlay displays radar images over maps on your compatible chartplotter (requires heading sensor, sold separately)
  • The reliable dome drive motor offers low-noise operation
  • Radar detection range extends from 20 meters out to 36 nautical miles

Specifications

  • Maximum range: 36 nm
  • Radar type: Radome
  • Dimension: 20″ diameter, 9.8″ high (508 mm diameter, 248 mm high)
  • Transmit power: 4 kW
  • Beam width: 5.2° horizontal, 25° vertical
  • Power Input: 11 - 32 V DC
  • Antenna Length: 17″ (43 cm)
  • Rotation speed (RPM): 24 rpm
  • Minimum range: 20 metres
  • Waterproof: IPX7
  • Weight: 7.0 kg

In the Box

  • GMR 18 HD3 dome radar
  • Power cable (15 m/49.21 ft)
  • Network cable (15 m/49.21 ft)
  • Mounting hardware kit and template
  • Installation instructions
