Garmin GPSMAP 723/923/1223/1623 Multifunction Display

FREE GIFT - Free Large area Garmin Navionics Vision UK Chart worth £319.99 - GNNV+EUL - with GPSMAP 12" & New 16" Chartplotters.
Chart Automatically Added at Checkout. Whilst Stocks Last.

With more display pixels and nearly double the processing power of previous-generation GPSMAP devices, this crisp high-resolution chartplotter integrates seamlessly into your Garmin marine system.

FASTER, SHARPER, SMARTER
With its added processing power and new slimline design featuring edge-to-edge glass and a smaller unit footprint, it’s easy to retrofit this plotter in a wider range of dash configurations.

IMPROVED DISPLAY OPTICS
New higher-resolution displays offer improved sunlight readability with more pixels than previous-generation GPSMAP devices.

GARMIN SAILASSIST™ SAILING FEATURES
View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed and more.1

OPTIONAL BLUECHART® G3 VISION® CHARTS
These optional charts offer the best of Garmin and Navionics® data, Auto Guidance2 technology and other premium navigation features.

GARMIN MARINE NETWORK
If you have multiple compatible Garmin devices on your boat, you can share information — such as maps, user data, radar and IP camera video — among them.

NMEA 2000® AND NMEA 0183 NETWORKS
Connect to compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS and more from one screen.

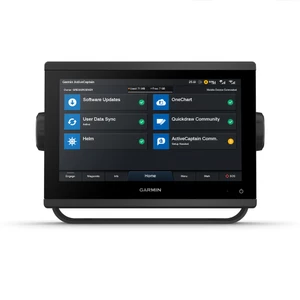

ACTIVECAPTAIN® APP
Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Helm™ digital switching, Garmin Quickdraw™ Community data and more.3

INTEGRATED ANT® TECHNOLOGY
Connect with some of your favourite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments and wireless remote control

J1939 CONNECTIVITY
Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines.

ONEHELM™ FEATURE
This exclusive feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus™ digital switching, on one screen.

PANOPTIX™ SONAR SUPPORT
Pair with Panoptix or Panoptix LiveScope™ easy-to-interpret live sonar (transducer sold separately) with FrontVü scanning sonar4 to help you see and avoid submerged obstacles in real time as you approach within a 91-metre range.

1 Requires compatible wind transducer (Sold separately).
2 Auto Guidance is for planning purposes only and does not replace safe navigation operations.
3 When paired with your compatible smartphone.
4 The ability to effectively avoid forward collisions with FrontVü sonar decreases as speed rises above 8 knots.

Specifications

• PHYSICAL DIMENSIONS:
  • 723 MODEL 19.2 x 14.0 x 7.4 cm
  • 923 MODEL 23.3 x 16.2 x 7.6 cm
  • 1223 MODEL 30.8 x 22.8 x 8.2 cm
  • 1623 MODEL 38.4 x 26.2 x 7.6 cm
• DISPLAY SIZE:
  • 723 MODEL - 15.4 x 9.1 cm
  • 923 MODEL – 19.9 x 11.2 cm
  • 1223 MODEL – 26.2 x 16.3 cm
  • 1623 MODEL – 34.5 x 19.5 cm
• DISPLAY RESOLUTION:
  • 723 MODEL -  1024 x 600 pixels
  • 923 MODEL – 1280 x 720 pixels
  • 1223 MODEL – 1280 x 800 pixels
  • 1623 MODEL – 1920 x 1080 pixels
• DISPLAY TYPE: WSVGA display
• WEIGHT:
  • 723 MODEL – 1.3 kg
  • 923 MODEL – 1.6 kg
  • 1223 MODEL – 3.0 kg
  • 1623 MODEL – 4.4 kg
• WATER RATING: IPX7
• POLARISED SUPPORT
• POWER CONSUMPTION: Typical current draw at 12 Vdc:
  • 723 MODEL – 1.1 A
  • 923 MODEL – 1.3 A
  • 1223 MODEL – 1.7A
  • 1623 MODEL – 2.9A
• ANTENNA: Internal or external over NMEA 2000
• RECEIVER: 10 Hz high-sensitivity
• MOUNTING OPTIONS: Bail, flush or flat
• GARMIN MARINE NETWORK™ PORTS: 1
• NMEA 2000 PORT:1
• NMEA 0183 PORT: 1
• VIDEO INPUT PORT: 1 BNC
• VIDEO OUTPUT PORT: 1 HDMI (1223 MODEL ONLY)
• ACCEPTS DATA CARDS: 2 microSD™ cards (back of unit)
• WAYPOINTS: 5,000
• TRACK LOG: 50,000 points; 50 saved tracks
• ROUTES: 100

In The Box

• GPSMAP  chartplotter
• Power cable
• NMEA 2000® T-connector
• NMEA 2000 drop cable (2 metres)
• Bail mount kit with knobs
• Flush mount kit with gasket
• Protective cover
• Trim piece snap covers
• Documentation
