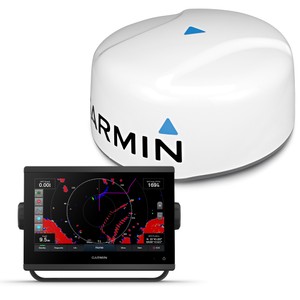

Garmin GPSMAP 923xsv & GMR18HD Plus Bundle

A chartplotter and radar bundle consisting of the GPSMAP 923xsv multifunction display and the compact 4 kW GMR™ 18 HD+ dome radar.

GPSMAP 923xsv

With more display pixels and nearly double the processing power of previous-generation GPSMAP devices, this crisp high-resolution chartplotter integrates seamlessly into your Garmin marine system.

FASTER, SHARPER, SMARTER

With its added processing power and new slimline design featuring edge-to-edge glass and a smaller unit footprint, it’s easy to retrofit this plotter in a wider range of dash configurations.

ULTRA HIGH-DEFINITION SCANNING SONAR

Get built-in Ultra High-Definition SideVü and ClearVü scanning sonars with vivid, high-contrast colour palettes to help distinguish fish from structure. GPSMAP® 923xsv also supports 1 kW CHIRP traditional sonar capabilities.

PANOPTIX™ SONAR SUPPORT

Pair with Panoptix or Panoptix LiveScope™ easy-to-interpret live sonar (transducer sold separately) with FrontVü scanning sonar4 to help you see and avoid submerged obstacles in real time as you approach within a 91-metre range.

IMPROVED DISPLAY OPTICS

New higher-resolution displays offer improved sunlight readability with more pixels than previous-generation GPSMAP devices.

GARMIN SAILASSIST™ SAILING FEATURES

View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed and more.1

OPTIONAL BLUECHART® G3 VISION® CHARTS

These optional charts offer the best of Garmin and Navionics® data, Auto Guidance2 technology and other premium navigation features.

GARMIN MARINE NETWORK

If you have multiple compatible Garmin devices on your boat, you can share information — such as maps, user data, radar and IP camera video — among them.

NMEA 2000® AND NMEA 0183 NETWORKS

Connect to compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS and more from one screen.

ACTIVECAPTAIN® APP

Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Helm™ digital switching, Garmin Quickdraw™ Community data and more.3

INTEGRATED ANT® TECHNOLOGY

Connect with some of your favourite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments and wireless remote control

J1939 CONNECTIVITY

Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines.

ONEHELM™ FEATURE

This exclusive feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus™ digital switching, on one screen.

1 Requires compatible wind transducer (Sold separately).

2 Auto Guidance is for planning purposes only and does not replace safe navigation operations.

3 When paired with your compatible smartphone.

4 The ability to effectively avoid forward collisions with FrontVü sonar decreases as speed rises above 8 knots.

Specifications

• PHYSICAL DIMENSIONS: 23.3 x 16.2 x 7.6 cm
• DISPLAY SIZE: 19.9 x 11.2 cm
• DISPLAY RESOLUTION:1280 x 720 pixels
• DISPLAY TYPE: WSVGA display
• WEIGHT: 1.6 kg
• WATER RATING: IPX7
• TRANSMIT POWER: 1kW Traditional: 1kW CHIRP
• FREQUENCIES SUPPORTED:(dependent on transducer)
• Traditional: 50/77/83/200 kHz
• CHIRP (low, medium, high)
• ClearVü/SideVü (260/455/800 kHz)
• POLARISED SUPPORT
• POWER CONSUMPTION: Typical current draw at 12 Vdc: 1.3 A
• ANTENNA: Internal or external over NMEA 2000
• RECEIVER: 10 Hz high-sensitivity
• MOUNTING OPTIONS: Bail, flush or flat
• GARMIN MARINE NETWORK PORTS: 1
• NMEA 2000 PORT:1
• NMEA 0183 PORT: 1
• VIDEO INPUT PORT: 1 BNC
• ACCEPTS DATA CARDS: 2 microSD™ cards (back of unit)
• WAYPOINTS: 5,000
• TRACK LOG: 50,000 points; 50 saved tracks
• ROUTES: 100

In The Box

• GPSMAP 923 XSV chartplotter
• Power cable
• NMEA 2000T-connector
• NMEA 2000 drop cable (2 metres)
• Bail mount kit with knobs
• Flush mount kit with gasket
• Protective cover
• Trim piece snap covers
• Documentation

GMR18HD+ Radar

The compact GMR 18 HD+ dome radar is a good choice for boats with limited room for radar placement. It delivers 4 kW of transmit power and clear echo definition at all ranges to enhance situational awareness. Overlay radar images onto your chartplotter map page; for best overlay results, an optional autopilot or heading sensor is recommended. It also helps you avoid traffic on the water. GMR 18 HD+ provides MARPA target tracking when combined with a multifunction display and heading sensor (sold separately).

• Streamlined 18-inch 4 kW dome radar
• Delivers 4 kW transmit power and clear echo definition at all ranges
• Dynamic Auto Gain automatically adjusts to your surroundings for optimal performance in all conditions
• Dynamic Sea Filter automatically adjusts to changing sea conditions
• Overlays radar image on the chartplotter map page (autopilot or heading sensor recommended for best results)

GMR 18 HD+ features 8-bit true colour resolution for a clear presentation on your chartplotter screen. It has a maximum range of 36 nautical miles with a minimum range of 20 meters and a rotation speed of 24 RPM. There are no complex user settings, and it’s easy to install and start using.

Specifications

• Physical dimensions - 50.8 cm diameter, 24.8 cm high (20" diameter, 9.75" high)
• Weight - 7.7 kg (17 lbs)
• Water rating - IPX7
• Power consumption - 30 W typical; 48 W max
• Antenna length- 43.18 cm (17")
• Rotation speed (RPM) - 24 rpm
• Transmit power - 4 kW
• Power input - 11-35 V DC
• Beam width - 5.2° horizontal, 25° vertical
• Maximum range - 36 nm
• Minimum range - 20 meters

In the Box

• GMR 18 HD+ radome
• Mounting hardware kit
• Power cable (15 m/49.21 ft)
• Network cable (15 m/49.21 ft)
• Installation instructions
• Mounting template



This item has been discontinued and is not available to purchase.
