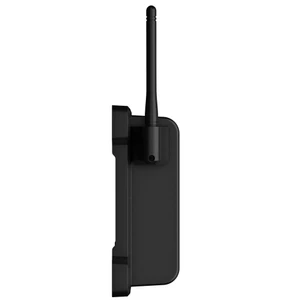

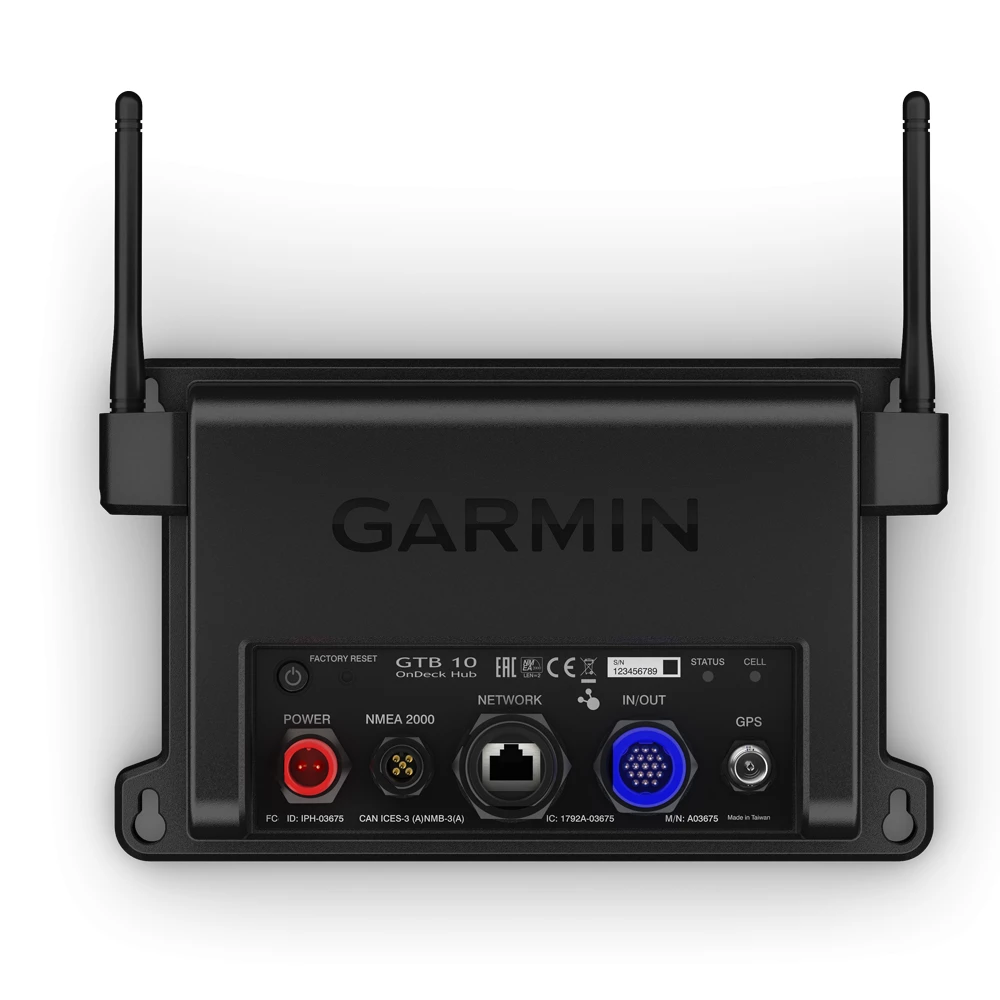

Garmin OnDeck Hub Boat Monitoring System

Track, monitor and control up to 5 switches on your boat with the OnDeck™ system, a fully integrated remote connectivity solution.

TRACK
Be the first to know if a security sensor has been triggered, or if your boat has been moved. The internal GPS sensor updates every 15 minutes and will send text alerts* if your boat leaves the geo-fenced area.

MONITOR
Get updates* on your boat’s battery status, bilge activity, shore power, temperature changes and more. Set up alarm notifications in the ActiveCaptain® app.

CONTROL
Get out on the water faster when you turn on up to 5 selected systems, including battery chargers, ice makers and more, from afar via relay switches.

ACTIVECAPTAIN® APP
Download the ActiveCaptain app to your compatible smartphone to manage your vessel. It’s where you can set up alarm notifications, take control of your boat and so much more*.

STORE DATA
Securely collect vessel data with the GTB 10 OnDeck Hub and store it in the cloud for up to 30 days.

ALWAYS-ON CONNECTION
The GTB 10 hub uses global 3G/4G coverage.

BACKUP BATTERY
A 48-hour internal backup battery allows access to OnDeck after the boat battery is depleted or the power is disconnected.

SUBSCRIPTION
To stay in touch with your vessel, a subscription plan is required. Choose between an annual plan or pay month-to-month.

FULL INTEGRATION
The OnDeck system is a seamless addition to your current marine electronics (MFD via Garmin Marine Network, engines, NMEA 2000® sensors).

* An active subscription plan is required. Both OnDeck Hub and user’s device must have connectivity to a 3G/4G network.

Specifications

GENERAL

• Physical dimensions without antennas: 23.1 x 4.9 x 14.2 cm
• Physical dimensions with antennas pointing up: 23.1 x 13.2 x 14.2 cm
• Weight: 0.64 kg
• Power consumption: 20 W max at 10 Vdc
• Input voltage range: From 10 to 32 Vdc
• Battery life: Up to 48 hours
• Monitoring frequency:  15 minutes

CONNECTIVITY

• NMEA 2000® compatible: Yes
• ActiveCaptain compatible: Yes
• Cellular connectivity: Yes (3G/4G)
• Wi-Fi®: Yes
• Garmin Marine Network: Yes

SENSORS

• Bilge pump: Yes (2)
• Security: Yes
• Battery voltage: Yes (2)
• Temperature: Yes
• Shore power: Yes
• GPS location: Yes
• Distance log: Yes

NMEA 2000 SENSORS

• Fluid level: Yes
• Temperature: Yes
• Water depth: Yes
• Position: Yes
• Course over ground: Yes
• Speed over ground: Yes
• Vessel speed: Yes
• Wind data: Yes
• Fuel flow rate: Yes
• Engine hours: Yes
• Engine warning indicators: Yes

SWITCH CONTROLS

• Relay switch: Yes (5)

ALARMS

• Temperature: Yes
• Geofence: Yes
• Offline: Yes
• Voltage: Yes
• Shore power: Yes
• Security sensor:  Yes
• Depth: Yes

In The Box

• OnDeck™ Hub
• OnDeck™ security sensor
• OnDeck™ temperature sensor
• OnDeck™ shore power sensor
• OnDeck™ relay switch 12 Vdc (1x)
• Power cable
• In/out data cable (19-pin), sensor/relay output
• Garmin Marine Network cable
• NMEA 2000® drop cable
• NMEA 2000 T-connector

.
