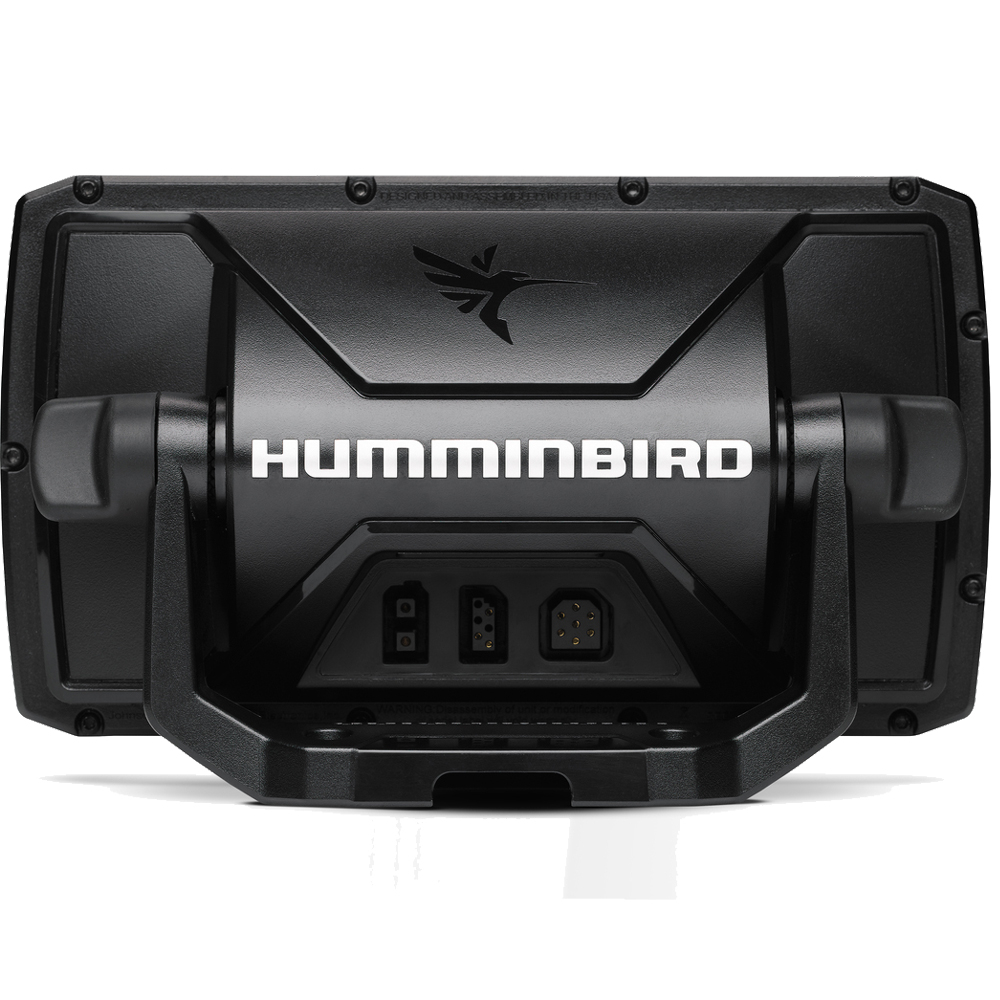

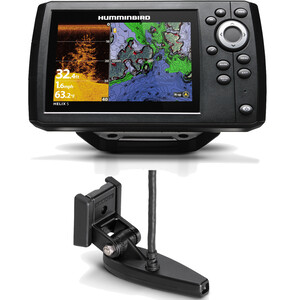

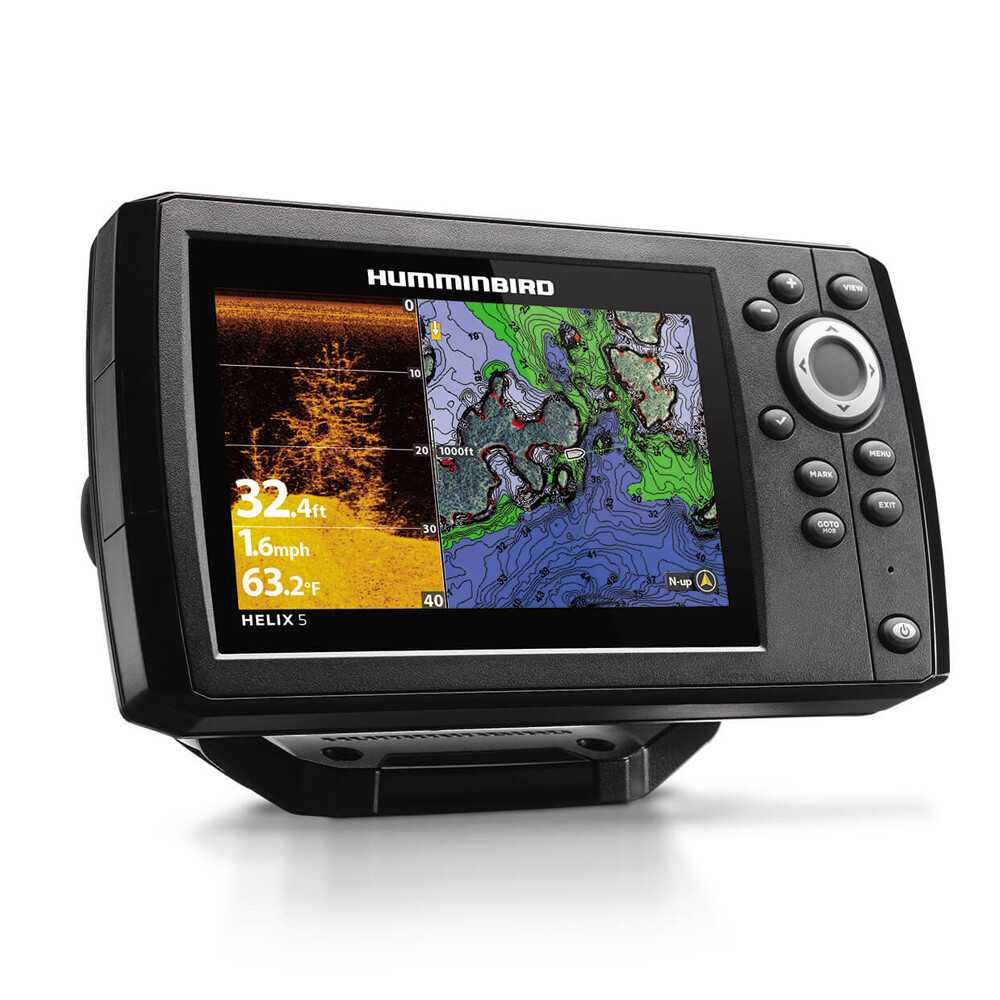

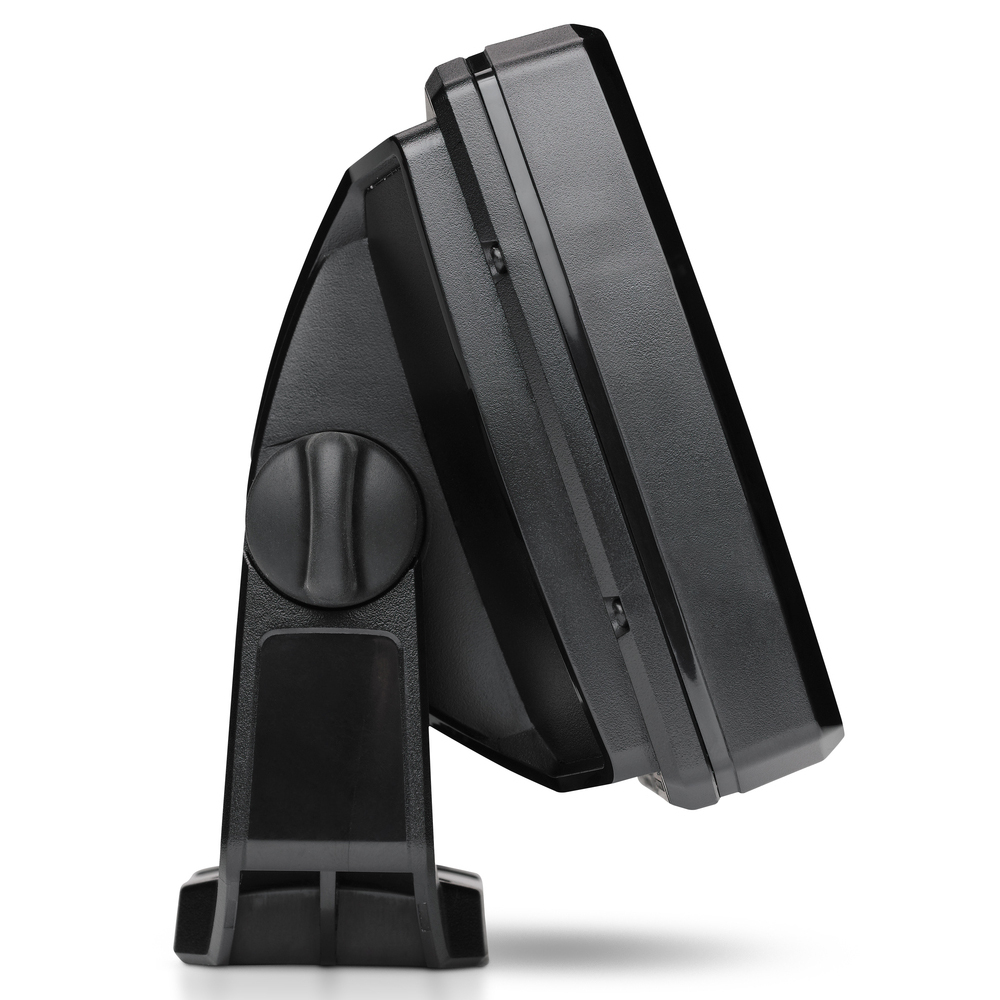

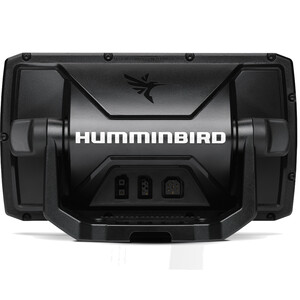

Humminbird Helix 5 CHIRP DI GPS G2 Chartplotter Fishfinder Combo

The HELIX 5 CHIRP DI GPS G2 model features CHIRP Digital Sonar, CHIRP Down Imaging, GPS mapping, AutoChart Live, the new Humminbird?basemap, DualBeam PLUS and SwitchFire.

CHIRP Down Imaging: Filter out noise and clutter for a clearer view beneath your boat. It's the perfect blend of CHIRP Digital Sonar precision and Down Imaging detail.

CHIRP Digital Sonar: View details that other forms of sonar won't show you. Humminbird CHIRP Digital Sonar is engineered to help you see individual fish, clearly identify bait and structure, and reach greater depths and range.

SwitchFire Sonar: Take command of how your sonar returns appear. With two display modes, you can add or remove detail, account for water depth, temperature and turbulence, even watch lure presentations - all at the push of a button.

Dual Beam PLUS Sonar: Two beams combine for great detail and a generous coverage area, helping you identify fish, structure and contours. Use the narrow beam for high-accuracy returns of fish, structure, detail and the bottom profile. Opt for the wide beam when you want a larger search area. You can view the beams separately, side-by-side or blended together for the complete picture. Your coverage area will be equal to your depth.

AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness and vegetation as you drive your boat, with eight hours of built-in recording time.

Navionics Compatible: Humminbird provides even more map options thanks to additional Navionics compatibility. Available maps regions include detailed cartography for saltwater and freshwater applications which make Navionics a great option for fishing, cruising or sailing.

Specifications

• Display Size - Diagonal 5"
• Display Pixels - 800H x 480V
• Sonar - CHIRP Digital Sonar, CHIRP Down Imaging, DualBeam PLUS
• CHIRP - Frequencies Supported 83/200 (75-155/130-250 kHz), 50/200 (28-75/130-250 kHz), High (130-250 kHz), Low (28-75 kHz), Med (75-155 kHz)
• Sonar-Frequencies Supported 50/83/200/455/800 kHz
• Depth-Sonar 2,500 ft (optional 50 kHz), 2,500 ft (optional Airmar CHIRP), 600 ft (standard transducer)
• CHIRP - Imaging-Frequencies Supported 455 kHz (420-520 kHz), 800 kHz (790-850 kHz)
• Depth-Down Imaging: 350 ft
• Interface: Keypad Control
• Memory Card Slot: Single Micro SD
• Power Draw: 615 mA
• Input Voltage: 12 VDC
• Power Output Peak-to-Peak 4000 Watts
• Power Output RMS 500 Watts
• Screen Snap Shot: Included
• Sonar Recording: Included
• Mount-Standard: Gimbal
• Mount-Standard Size: 7.55" W x 4.64" H x 3.3" D
• Transducer Included: XNT 9 DI T
• GPS Receiver: Internal
• Waypoints, Routes, Tracks/Points: 2,500, 45, 50/20,000
• NMEA0183 : With Optional cable

In The Box

• Helix 5 CHIRP DI
• Power Cable
• Transom Mount Transducer
• Mounting Bracket and Knobs
• Documentation
