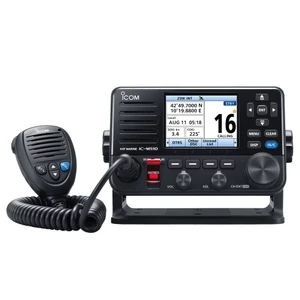

Icom IC-M510E VHF Radio With CT-M500 Interface

The IC-M510 is a stylish, new advanced VHF/DSC marine radio from Icom that gives smartphone control of your radio using the RS-M500 app (iOS™/Android™). Up to three smartphones can act as remote controllers via the radio’s WLAN. It is even possible to have an intercom function between your smartphone and the radio itself.

The IC-M510’s all-new sleek design is suitable for either panel or trunnion mounting…the radio has a depth of just 71.2 mm; 2.8 inches making it an easy install for your boat. The stunning colour TFT LCD provides nearly a 180-degree viewing angle. The wide display has high-resolution characters and function icons. The night mode screen ensures good readability in low light conditions.

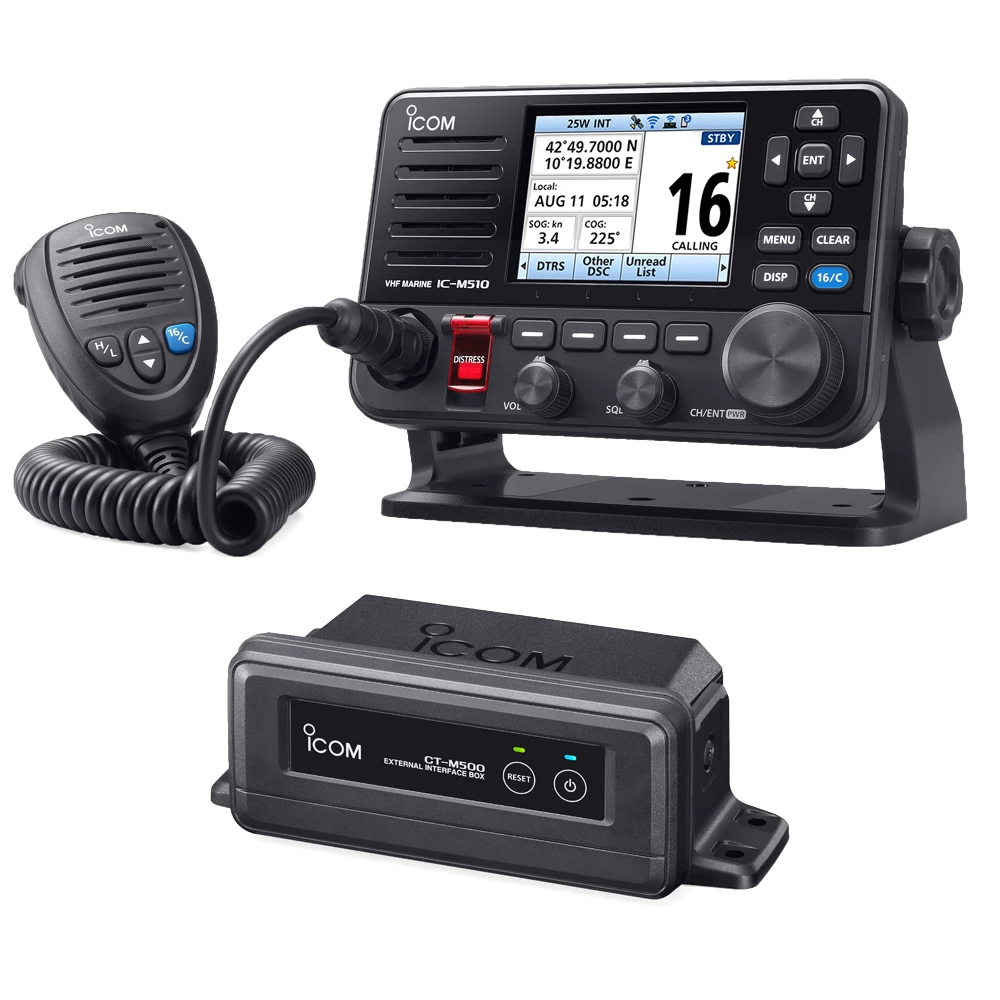

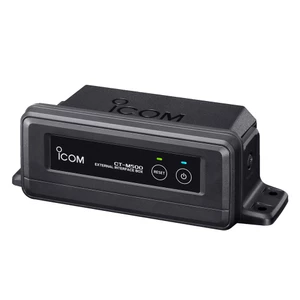

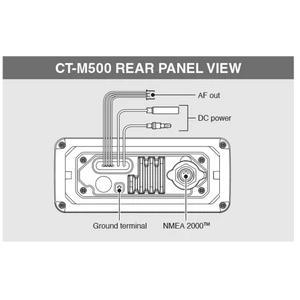

The CT-M500 wireless interface box provides NMEA 2000 connectivity and Hailer/PA feature. The CT-M500 and the radio can be connected through WLAN.

Features

• Integrated GNSS receiver (GPS antenna is switchable between internal and external)
• Active Noise cancelling
• The Navigation function guides you to a specified waypoint or AIS target
• Supplied HM-205RB speaker microphone can be connected to the rear panel
• Stylish, Sleek Design
• Wide Viewing Angle Colour TFT LCD
• Simplified Navigation Function
• Provides Clear, Loud Audio
• Includes Interface Box for NMEA 2000™ and Hailer
• NMEA 0183/-HS connectivity
• Optional UT-112A voice scrambler
• AquaQuake prevents audio degradation from a water-logged speaker
• External speaker connection
• Second station with an optional HM-195GB COMMANDMIC
• Supports 4-digit channels

Specifications

• Power Supply: 12Vdc
• Audio Output: 15W
• Waterproof Protection: IP68 (1 m depth of water for 60 minutes)

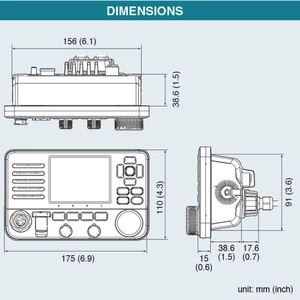

• Flush mount cut out: 156W x 91H mm
• Dimensions: 175W x 110H x 71D mm
• Weight: 750g ( not including microphone)

In The Box

• Icom IC-M510E VHF Radio
• HM-205RB Speaker Microphone
• Mic Hanger
• Mounting Bracket kit
• CT-M500 Interface

Click here for the user manual

Click here for the product datasheet
