Iris 735 Micro-Compact Flush Mounting 316L Stainless Steel Wide Angle Camera

Add video to your vessel with this miniature wide angle camera. Machined from stainless steel this camera can withstand the harsh marine environment. Perfect for deck/engine room monitoring or a docking/reversing camera. Compatible with chart plotters that have a composite/analogue video input.

• Compatible with all Chart Plotters supporting Composite/Analogue Video
• Micro-Compact Form Factor – 28mmø x 36mm (8mm from panel)
• 316L Marine Grade, Corrosion Proof Stainless Steel Body
• 4-in-1 Video Format (User Selectable) – CVBS, TVI, CVI, AHD
• 2.9mm Wide Angle Lens
• Starlight Sensor for Superb Low Light Operation
• Compatible with CMAC and CMAC HVR Systems
• Set to TVI for HD TV Viewing with IRIS995 Convertor
• IP67 Environmental Rating
• Extremely Low Power Consumption

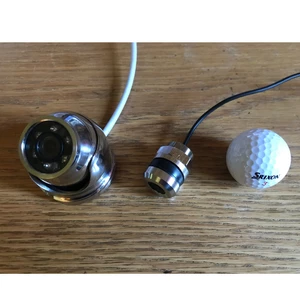

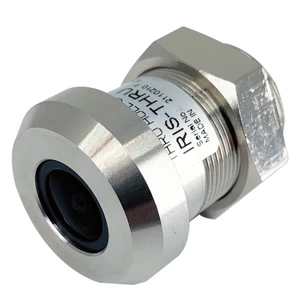

Introducing the worlds smallest through hull camera - the IRIS735 machined from corrosion resistant marine grade 316L stainless steel and measuring only 28mmø by 36mm long.

The 735 has been designed to sit flush into the hull, super struc­ture or transom of your vessel to provide all round coverage without impacting on the lines of your vessel, with a bezel height of only 8.5mm.

The camera module itself features a Sony Starlight sensor to provide excellent performance in low light, and can be user-set to output composite (CVBS) or analogue Hi-Def (TVI, CVI, AHD) video formats. When set to CVBS, the 735 is compatible with all chart plotter models that support composite video inputs. When set to TVI, the 735 will provide hi-definition real time video which can be viewed on an MFD via the IRIS CMAC systems or fed to a TV via our TVI~HDMI convertors.

The camera has a 140° wide angle field of view which makes it great to position along the sides and transom of your vessel to provide all round coverage whilst docking, and is also a great solution for sports fishing applications.

If you are looking for a tiny, cost effective docking camera, sports fishing camera or for unobtrusive cameras to add to your on­board security set up, the IRIS735 is the perfect solution.

Specifications

• Sensor: 1/2.8” SONY STARVIS CMOS Sensor
• Resolution: 1920 x 1080P @ 30fps (NTSC) / 25fps (PAL) / 906H in CVBS mode
• Minimum Illumination: 0.001 Lux (F-1.2)
• Day & Night Operation: Auto / Colour / Monochrome / External
• Video Output Modes: Analogue HD Modes: HD-TVI, HD-CVI, AHD / Analogue: Composite Video (CVBS) NTSC / PAL
• Lens: 2.9mm
• Shutter Speed: Auto / Manual (1/50(60) - 1/50,000 sec)
• Horizontal Field of View: 140°
• Defog: Off / Auto
• White Balance: ATW / AWC / INDOOR / OUTDOOR / MANUAL / AWB
• Back Light Compensation: OFF / BLC / HSBLC
• D-WDR: Off / 0~8
• SENS-UP: Off / x2 ~ x30
• DNR: Off / Low / Middle / High
• Brightness: 0 - 100
• Motion Detection: Off / On
• Image Mirror: Off / Mirror / V-Flip / Rotate
• Sharpness: 0 ~ 10 Steps
• Material: 316L Marine Grade, Corrosion Resistant Stainless Steel
• Power: DC12V ±10% / 125mA (1.5W)
• Weight: 0.1Kg
• Dimensions: 28mmø x 36mm
• Environmental / EMC: EN60529 IP67 / EMC EN60945 (TBC)
• Operating Temperature: -10°C ~ + 50°C / <90% Humidity

Click here for the Manufacturers Datasheet
