Jabsco Accumulator Tank - 5 litre

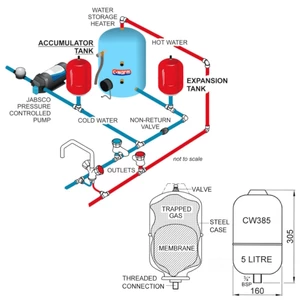

Jabsco CW385 Accumulator Tank. With a 5 litre capacity this accumulator or expansion tank is ideal for a boats pressurised water system. An accumulator tank is an important part of any pressurised water system that includes a pressure-controlled pump. Fitted close to the discharge port of the pressurised water pump, the accumulator tank acts as a pressure buffer, ensuring a smooth flow of water from the outlets. Without an accumulator tank, the pump is liable to switch itself rapidly on and off whenever its flow rate exceeds demand from the outlets. Constant on-off cycling leads to increased pump wear and unnecessary battery drain. The accumulator tank stops this rapid cycling, resulting in smooth water flow (important in showers) and an extended pump life.

Technical Specification

• Connections: - ¾" BSP external threaded.
• Dimensions: - 305mm high, 160mm diameter
• Output: - nominal 5 litres, working capacity up to approximately 2.5 litres

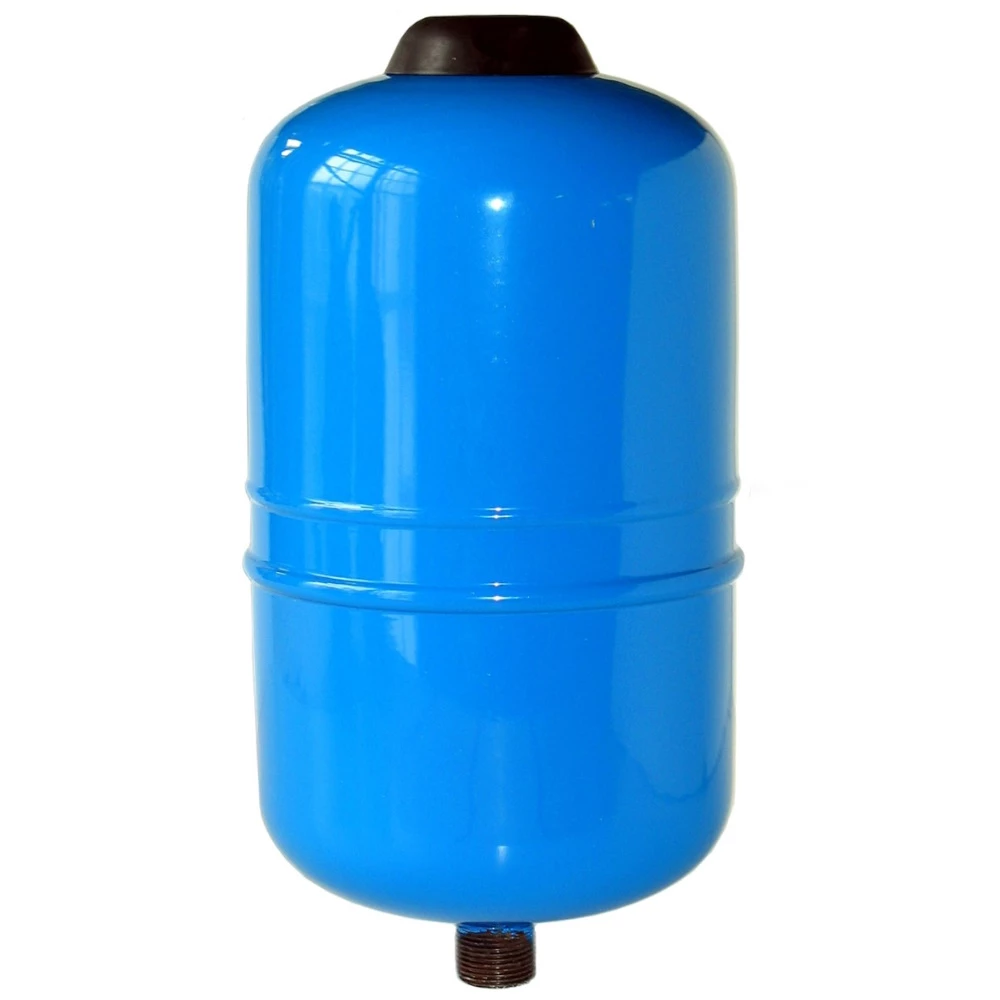

• Enameled steel vessel with stainless steel flange and internal rubber membrane
• For small to medium-sized pressure systems
• May be mounted in any attitude (optional mounting bracket P/No 830202)
• Stainless steel and rubber wetted parts
• Maximum Recommended Working Pressure - 4 bar (60psi)
• Actual Weight: 2.05 Kg

"Accumulator Tanks and Expansion Tanks - What’s the difference? There is no difference in construction. Jabsco tanks are suitable for either duty. They are cylindrical steel tanks with an internal rubber membrane. The tank is supplied charged with inert nitrogen gas, to prevent internal corrosion. The internal pressure is regulated via the air valve located beneath the black cap at the closed end of the cylinder."
