Johnson Ultima Bilge Pump with Integrated Switch

Ultima Bilge Pumps are the latest addition to the Johnson Pump line up. Integration of the patented Ultima field effect sensing technology into the bilge pump body creates a sleek reliable compact unit ready to install and run for years and years of unerring service.

Features:

• Compact, all-in-one unit Integrated Ultima Switch technology in the pump body for trouble-free, automatic operation
• Ultima Bilge 600GPH, 800GPH and 1000GPH pumps have easy-to-install Dura-Port discharge ports to eliminate stress cracking by over-tightened hose clamps. These pumps include both a straight and a 90 degree smooth 3/4" elbow Dura-Port
• Ultimage Bilge 1250GPH pump includes threaded 1 1/4" and 1 1/8" discharge port
• All versions are delivered with a removable check valve
• Removable clip on basket design
• Removable impeller cover allows for easy clean out
• No tools needed for maintenance
• Extremely energy efficient
• Water-cooled motor for long service intervals
• The Ultima Bilge pumps are 3-wire device and can be run in auto or manual override mode via the bilge control panel
• Meets the international standard, ISO 8849 marine
• Available in 600 800 1000 1250 GPH versions.
• Voltage 12V DC

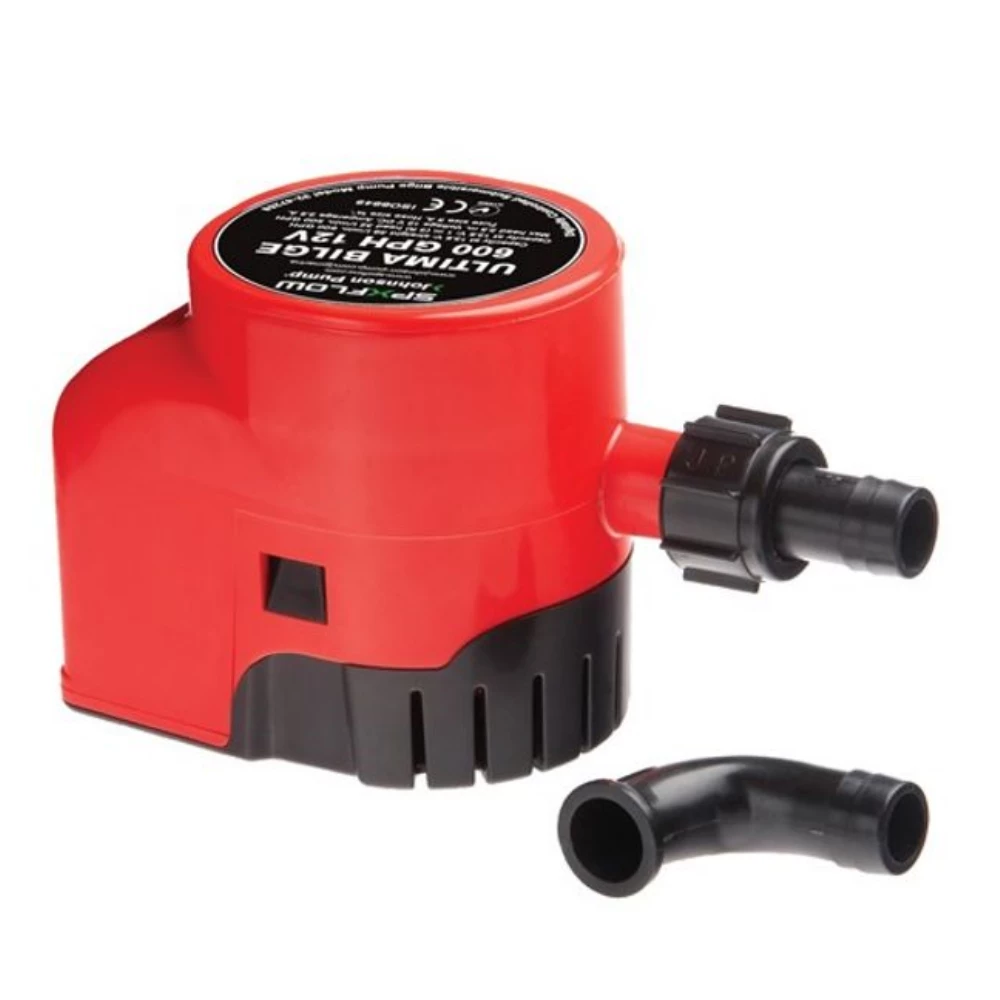

P/N: 830886-9201 600GPH 12V

• Litres per Min: 38
• Amperage: 2.5A
• Fuse Size: 5A
• Connector: 3/4"
• Length: 142mm
• Width: 82mm
• Height: 105mm
• Weight: 0.66kg
• Manufacturer P/N: 32-47258-008

P/N: 830886-9203 800GPH 12V

• Litres per Min: 51
• Amperage: 3A
• Fuse Size: 5A
• Connector: 3/4"
• Length: 142mm
• Width: 82mm
• Height: 105mm
• Weight: 0.66kg
• Manufacturer P/N: 32-47259-008

P/N: 830886-9204 1000GPH 12V

• Litres per Min: 64
• Amperage: 3.2A
• Fuse Size: 5A
• Connector: 3/4"
• Length: 142mm
• Width: 82mm
• Height: 105mm
• Weight: 0.66kg
• Manufacturer P/N: 32-47260-008

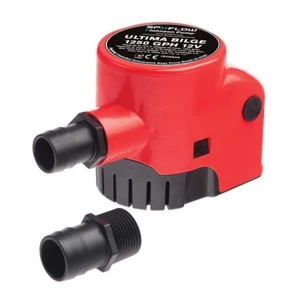

P/N: 830886-9205 1250GPH 12V

• Litres per Min: 79
• Amperage: 3A
• Fuse Size: 5A
• Connector: 1 1/8" and 1 1/4"
• Length: 142mm
• Width: 82mm
• Height: 117mm
• Weight: 0.66kg
• Manufacturer P/N: 32-47261-005



Download Instruction Manual here.
