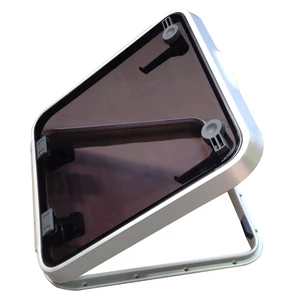

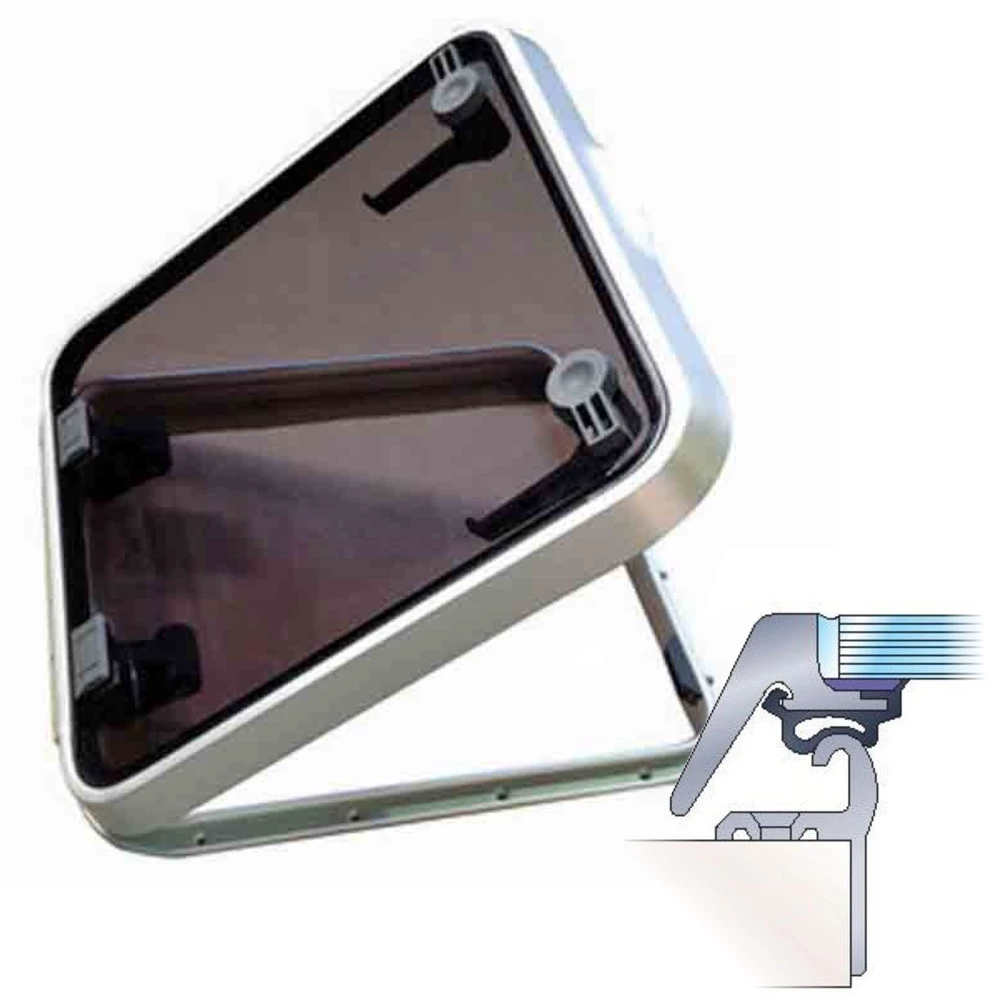

Lewmar Ocean Hatch - Flange Base

With a classic, instantly recognisable style, the Lewmar Ocean Hatch has been fitted to thousands of boats around the world.

Tough and rugged construction provides incredible protection against the elements, whatever conditions you may face at sea.

Features

• Anodised aluminium frame
• Outside handles - can be opened from deck if not locked
• Friction levers hold the lid open up to 95°

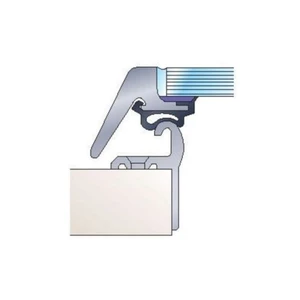

• 1" Flanged frame
• Sizes 44 and above meet the minimum size requirements for ISO 9094 escape hatches.

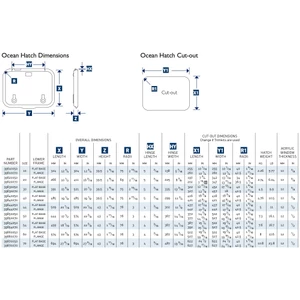

Available in a range of sizes

Size 10 (P/No. 850870)

• Cut out size 260x260mm Radii 42.5mm
• Overall size 324x324mm Radii 75mm
• Height from deck: 39.5mm
• Lower frame flange depth 25mm
• Hatch Weight 2.26kg

Size 20 (P/No. 851481)

• Cut out size 202x347mm Radii 36.5mm
• Overall size 266x411mm Radii 69mm
• Height from deck: 39.5mm
• Lower frame flange depth 25mm
• Hatch Weight 2.74kg

Size 30 (P/No. 851067)

• Cut out size 457x327mm Radii 42.5mm
• Overall size 521x391mm Radii 75mm
• Height from deck: 39.5mm
• Lower frame flange depth 25mm
• Hatch Weight 4.5kg

Size 40 (P/No. 851482)

• Cut out size 421x421mm Radii 42.5mm
• Overall size 485x485mm Radii 75mm
• Height from deck: 39.5mm
• Lower frame flange depth 25mm
• Hatch Weight 4.76kg

Size 44 (P/No. 851068)

• Cut out size 442x442mm Radii 42.5mm
• Overall size 509x509mm Radii 76mm
• Height from deck: 43mm
• Lower frame flange depth 25mm
• Hatch Weight 5kg

Size 50 (P/No. 851483)

• Cut out size 337x507mm Radii 42.5mm
• Overall size 444x574mm Radii 76mm
• Height from deck: 43mm
• Lower frame flange depth 25mm
• Hatch Weight 7.3kg

Size 60 (P/No. 850280)

• Cut out size 507x507mm Radii 42.5mm
• Overall size 574x574mm Radii 76mm
• Height from deck: 43mm
• Lower frame flange depth 25mm
• Hatch Weight 8kg

Size 70 (P/No. 851484)

• Cut out size 627x627mm Radii 42.5mm
• Overall size 694x694mm Radii 76mm
• Height from deck: 43mm
• Lower frame flange depth 25mm
• Hatch Weight 10.8kg

Size 77 (P/No. 850577)

• Cut out size 699x699mm Radii 42.5mm
• Overall size 767x767mm Radii 76mm
• Height from deck: 43mm
• Lower frame flange depth 25mm
• Hatch Weight 13.2kg

Also available with Flat base.
