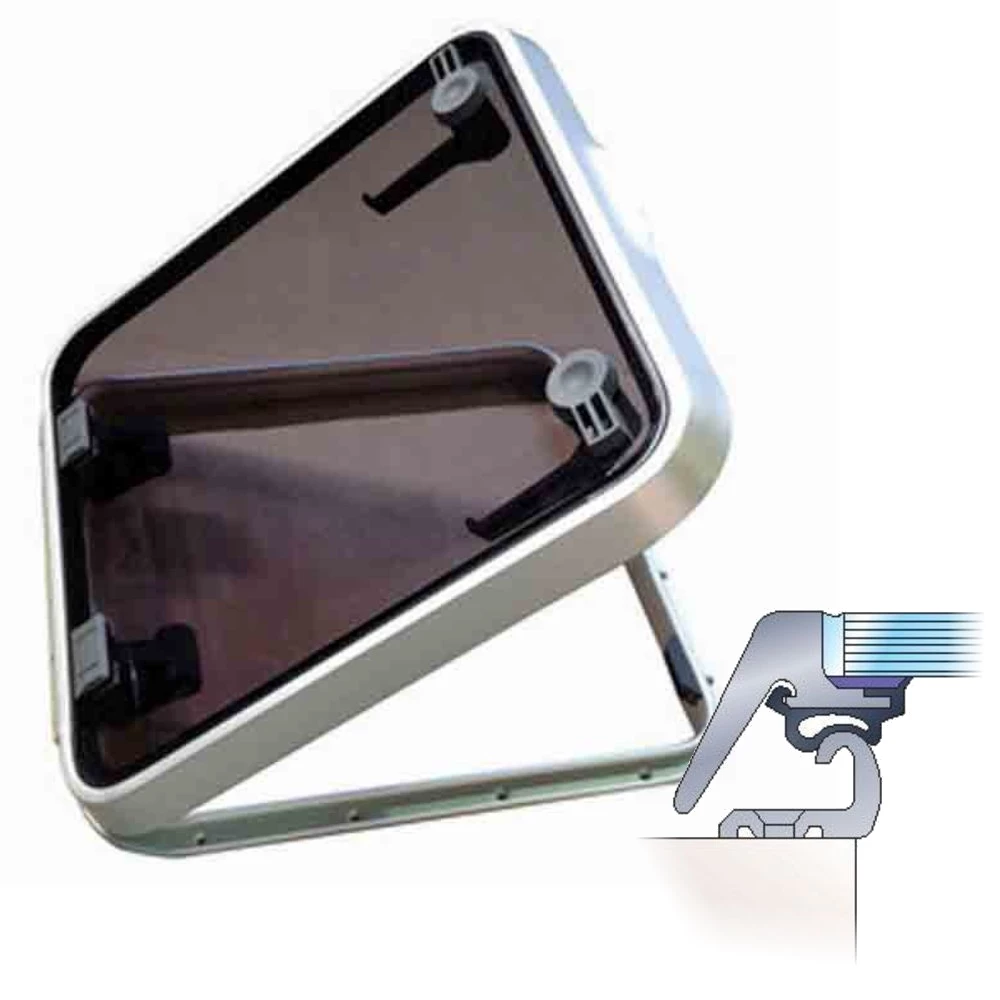

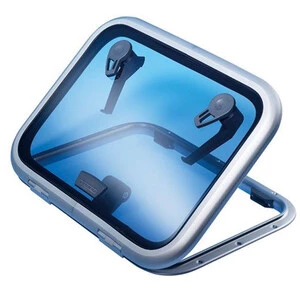

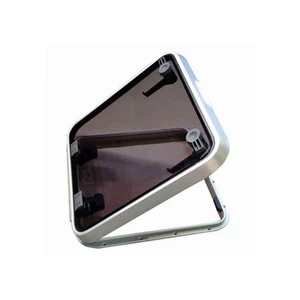

Lewmar Ocean Hatch Flat Base

With its classic style, the Ocean Hatch is fitted to many offshore cruising boats around the world. Its rugged construction provides the ultimate protection against the elements, whatever conditions you might face.

Features

• Anodised aluminium frame
• Outside handles - can be opened from deck if not locked
• Friction levers hold the lid open up to 95°
• Flat based frame
• Sizes 44 and above meet the minimum size requirements for ISO 9094 escape hatches

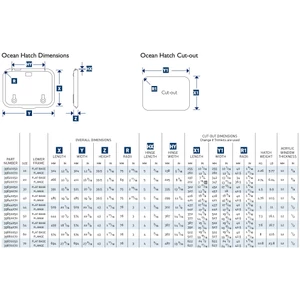

Available in a range of sizes

• Code: 850446 - Size 10 (Lewmar P/No. 39610050)
  • Size: L324 x W324 x H39.5mm
  • Cut out: L255 x W255 radii 40
• Code: 850869 - Size 20 (Lewmar P/No. 39620050)
  • Size L266 x W491 x 39.5mm
  • Cut out: L197 x W342 radii 34
• Code: 851492 - Size 30 (Lewmar P/No. 39630050)
  • Size: L391 x W521 x H39.5mm
  • Cut out: L322 x W452 radii 40
• Code: 851493 - Size 40 (Lewmar P/No 39640050)
  • Size: L485 x W485 x H43mm
  • Cut out: L416 x W416 radii 40
• Code: 851494 - Size 44 (Lewmar P/No 39644050)
  • Size: L509 x W509 x H43mm
  • Cut out: L437 x W437 radii 40
• Code: 851495 - Size 50 (Lewmar P/No 39650050)
  • Size: L444 x W574 x H43mm
  • Cut out: L372 x W502 radii 40
• Code: 851496 - Size 54 (Lewmar P/No 39654050)
  • Size: L459 x W574 x H43mm
  • Cut out: L387 x W502 radii 40
• Code: 850279 - Size 60 (Lewmar P/No 39660050)
  • Size: L574 x W574 x H43mm
  • Cut out: L502 x W502 radii 40
• Code: 851497 - Size 65 (Lewmar P/No 39665050
  • Trapezoidal shape - see Lewmar for details
• Code: 851498 - Size 70 (Lewmar P/No 39670050)
  • Size: L694 x W694 x H43mm
  • Cut out: L622 x W622 radii 40

Also available with Flange base.
