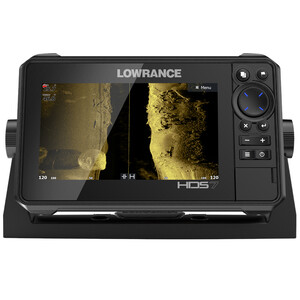

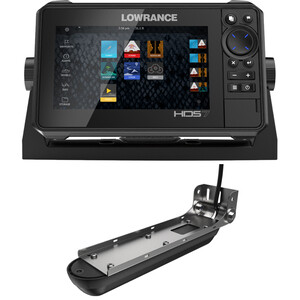

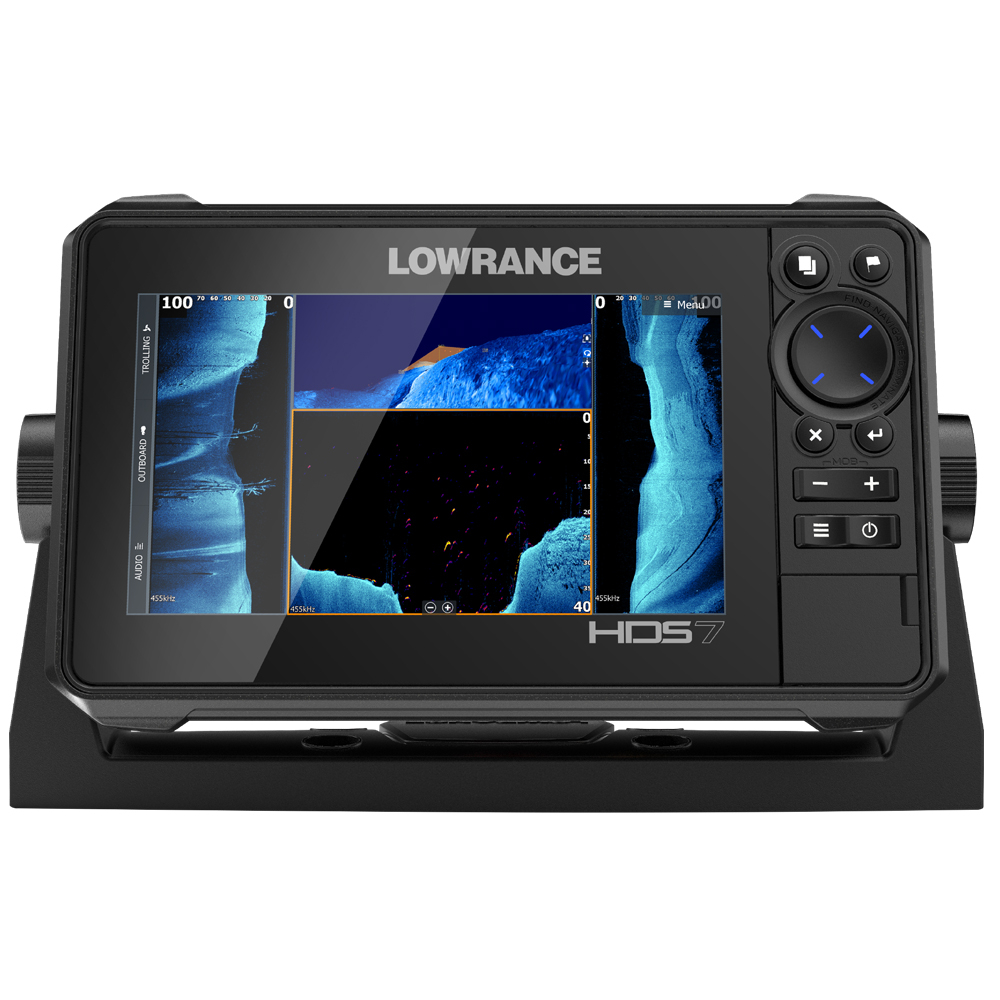

Lowrance HDS-7 Live Multifunction Display With Active Imaging Transducer

The Lowrance HDS-7 LIVE offers compatibility to the best collection of innovative sonar features available, including Active Imaging™, StructureScan® 3D with Active Imaging, FishReveal™ and LiveSight™ sonar – plus exciting functionality like C-MAP® Genesis Live mapping and LiveCast™ smartphone integration.

Features

• Active Imaging™ 3-in-1 (CHIRP/Side/Down) sonar
• LiveSight™ real-time sonar compatible
• Smartphone notifications
• High-performance dual-core processor
• C-MAP® Genesis Live onscreen mapping
• FishReveal™ Smart Target View
• High-resolution 7-inch SolarMAX™ HD multi-touch screen with the widest range of viewing angles – viewable even through polarized sunglasses
• C-MAP Easy Routing, Navionics Autorouting capability
• Dual-Channel CHIRP – dual sonar-range coverage from the same transducer
• Live Network Sonar – cover more water and mark fish targets more clearly from a network of CHIRP sonar transducers
• Wireless and Bluetooth® connectivity
• Heat Map feature allows anglers to see trends in water temperature changes to quickly target key fishing areas
• Enhanced Surface Clarity lets you see more fish targets near the surface
• Quick Access Control Bar provides one–touch access to system controls
• Touchscreen control of MotorGuide® Xi5 Trolling Motor, Power-Pole® Anchors and Lowrance Outboard Pilot
• Radar and SonicHub®2 audio server connectivity
• NMEA 2000® engine support
•  Optional mapping upgrades include C-MAP, Navionics® and more

Click here for more features on the Lowrance HDS-7 Live

Specifications

• Display: 7" Touchscreen 1024W x 600H
• Power Supply: 12 vDC (10-17 vDC min-max)
• Current Draw: 0.9 A @ 13 vDC
• Dimensions (mm) 233W x 78D x 146H
• Media port: 1 microSD slot
• Sonar range with Active Imaging 3-in-1 transducer:
  • DownScan Imaging™ at 455 kHz: Max 300 ft / 91 m
  • SideScan Imaging at 455kHz: Max 300 ft./91 m to each side
  • CHIRP Sonar High Range/200 kHz: 1000 ft / 305 m
  • CHIRP Sonar Med Range/83 kHz: 1000 ft / 305 m
• Sonar power output:  Max 500W RMS
• Transducer Connection: 9 pin or 7 pin with optional adapter
• Tansducer Cable length: 25ft
• Chart options: C-map Max-N, Navionics+
• Routes: 200
• Waypoints: 5000
• Plot Trails: Up to 100 trails with upto 10,000 points per trail
• GPS Antenna Type: 10kHz Internal high-sensitivity WAAS/EGNOS/MSAS
• Connections: NMEA 0183, NMEA2000, Bluetooth, Ethernet
  • Channel 1 Transducer port: Blue 9-pin connector for Broadband/CHIRP sonar, StructureScan 3D with Active Imaging, SideScan and DownScan Imaging™, LiveSight Forward and Down
  • Channel 2 Transducer Port: Black 9-pin connector for Broadband/CHIRP sonar, Active Imaging 3-in-1 / 2-in-1, TotalScan, StructureScan HD with SideScan and DownScan Imaging™

  In The Box

• HDS-7 Live
• Suncover
• Power cable
• Fuse & Fuse Holder
• Quick release tilt & swivel bracket
• Active imaging 3-in-1 transom mount transducer
• Transducer mounting bracket and hardware
• Documentation
