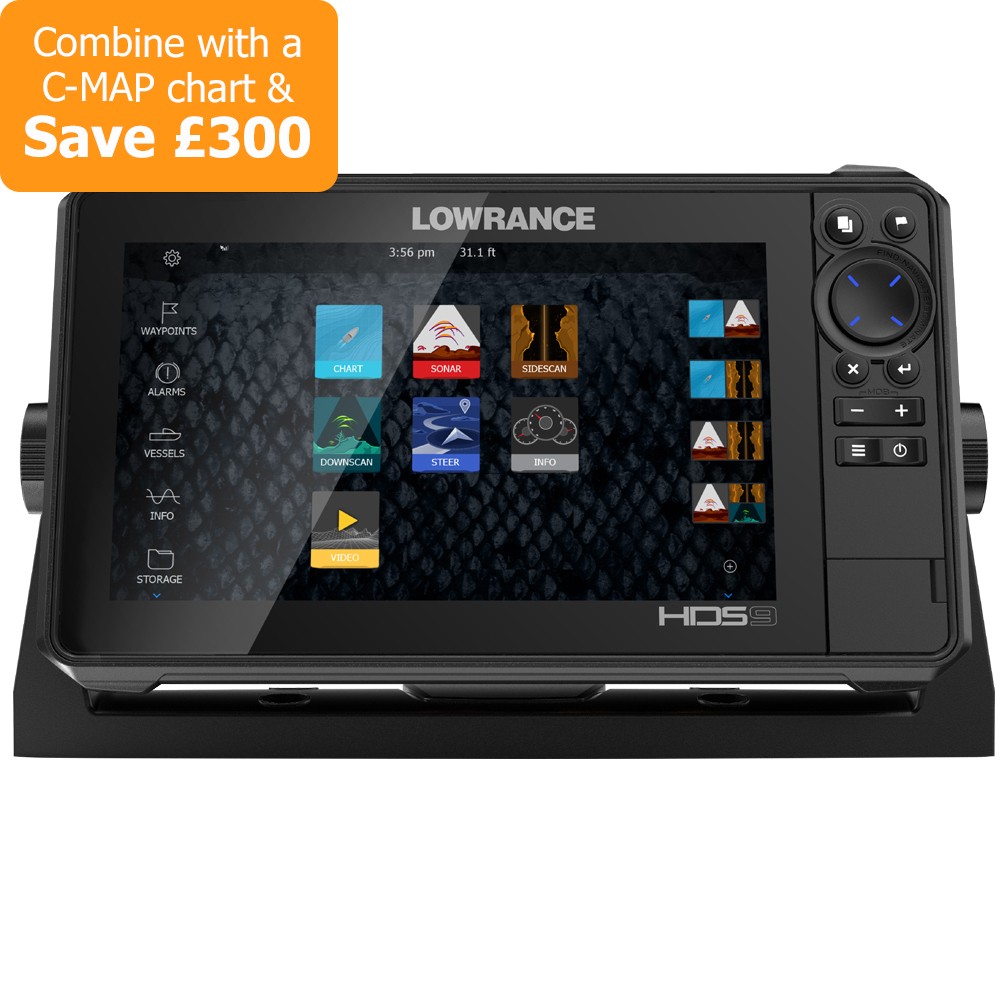

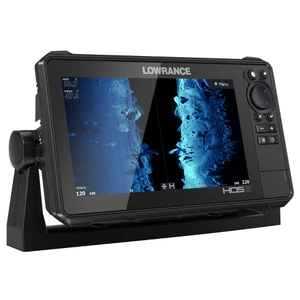

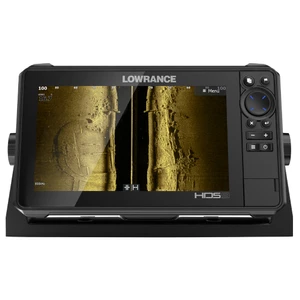

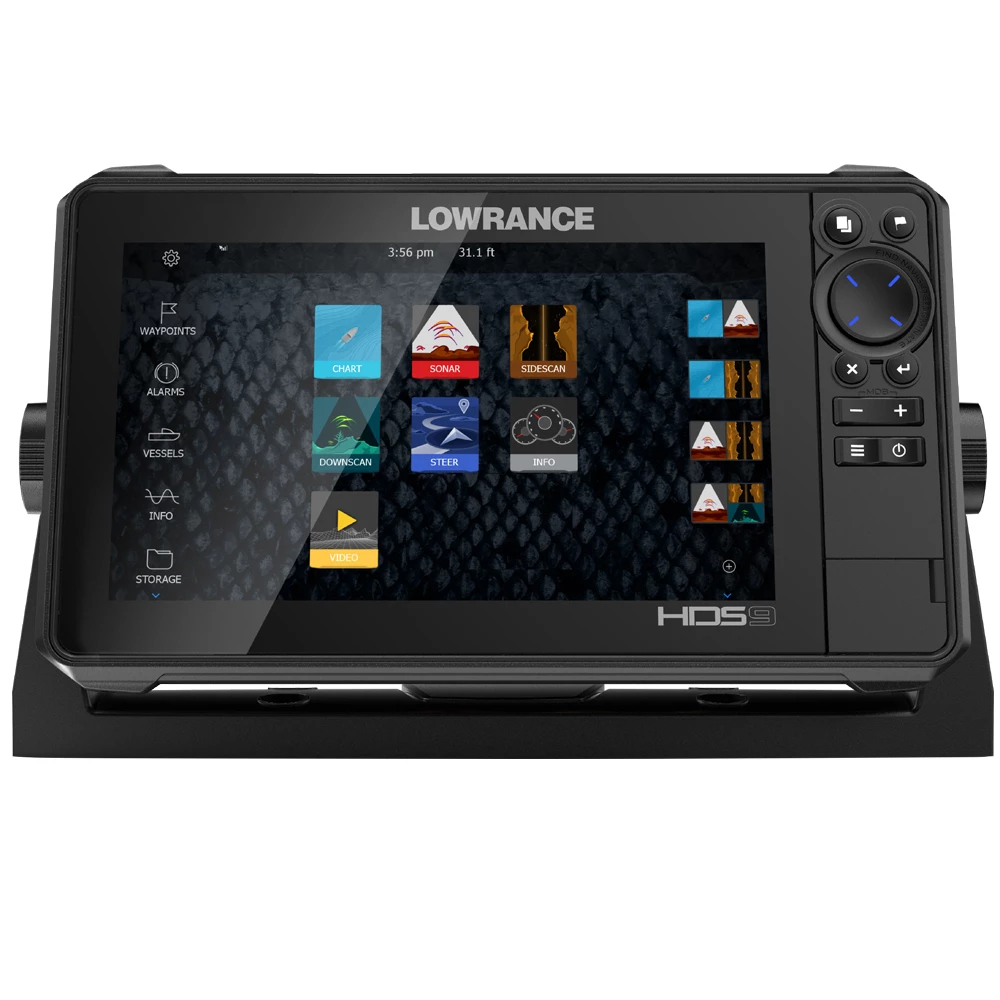

Lowrance HDS-9 Live Multifunction Display

The Lowrance HDS-9 LIVE offers compatibility to the best collection of innovative sonar features available, including Active Imaging™, StructureScan® 3D with Active Imaging, FishReveal™ and LiveSight™ sonar – plus exciting functionality like C-MAP® Genesis Live mapping and LiveCast™ smartphone integration.

Features

• Active Imaging™ 3-in-1 (CHIRP/Side/Down) sonar ready
• Active Imaging™ 2-in-1 (Side/Down) sonar ready
• LiveSight™ real-time sonar compatible
• Smartphone notifications
• High-performance dual-core processor
• C-MAP® Genesis Live onscreen mapping
• FishReveal™ Smart Target View
• High-resolution 9-inch SolarMAX™ HD multi-touch screen with the widest range of viewing angles – viewable even through polarized sunglasses
• C-MAP Easy Routing, Navionics Autorouting capability
• Dual-Channel CHIRP – dual sonar-range coverage from the same transducer
• Live Network Sonar – cover more water and mark fish targets more clearly from a network of CHIRP sonar transducers
• Wireless and Bluetooth® connectivity
• Heat Map feature allows anglers to see trends in water temperature changes to quickly target key fishing areas
• Enhanced Surface Clarity lets you see more fish targets near the surface
• Quick Access Control Bar provides one–touch access to system controls
• Touchscreen control of MotorGuide® Xi5 Trolling Motor, Power-Pole® Anchors and Lowrance Outboard Pilot
• Radar and SonicHub®2 audio server connectivity
• NMEA 2000® engine support
• Optional mapping upgrades include C-MAP, Navionics® and more

Best Screens: You will have an easier time viewing fish, structure and bottom detail on bright and clear SolarMAX™ HD screens that offers clean and crisp views from any angle, in direct sunlight – even through polarized sunglasses.
Easy and Efficient Interface: On-the-water adjustments will be quicker and easier with the refreshed HDS interface designed with a simpler feature layout to deliver next-level ease of use and efficiency.

Active Imaging: See structure and cover with a new level of refined detail at a range unmatched by anyone else with new, Lowrance Active Imaging. Active Imaging is available with 3-in-1 transducer (CHIRP, SideScan and DownScan Imaging) and Active Imaging 2-in-1 transducer (SideScan and DownScan Imaging) options.

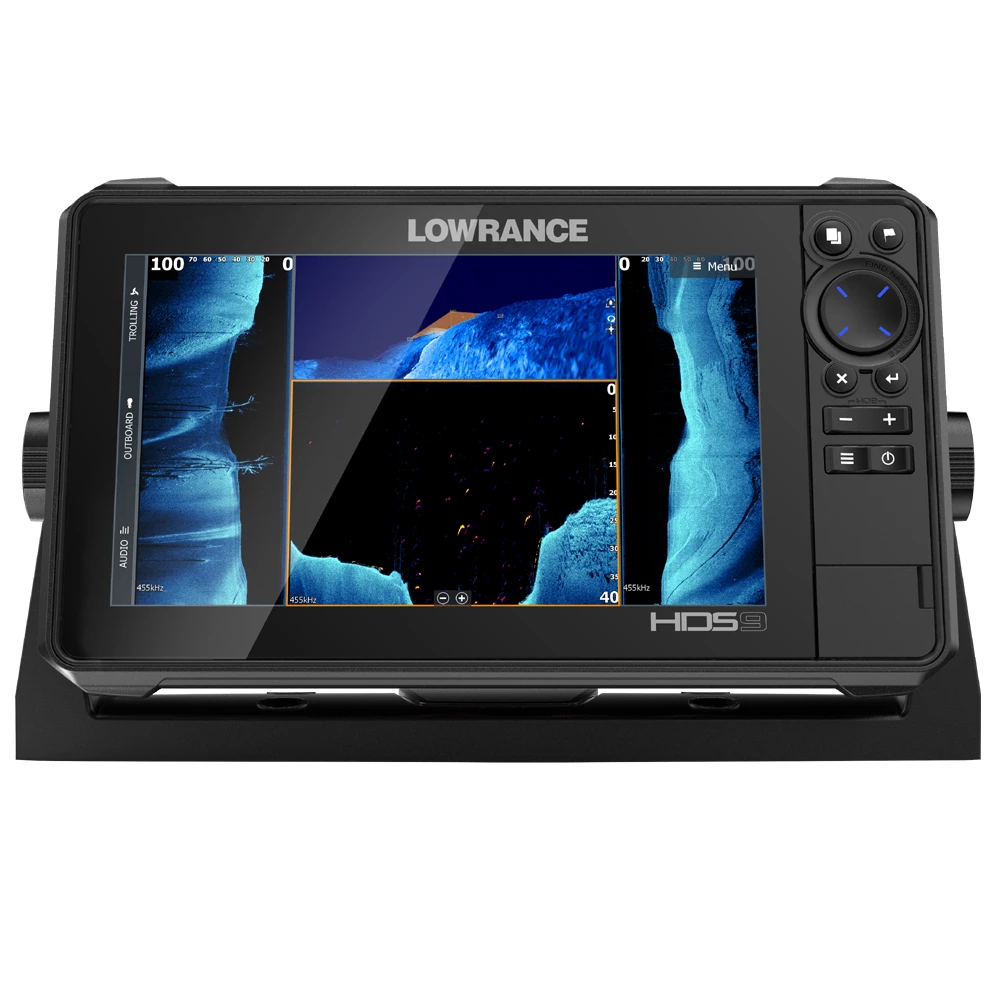

View all Structure Imaging – Side-by-Side: For the first time, you can get a side-by-side view of all your structure imaging technology with the enhanced capabilities of HDS LIVE, which supports simultaneous viewing of StructureScan 3D, SideScan and DownScan Imaging™ panels.

Most Advanced Fishfinder Technology: Simultaneously view CHIRP Sonar with Active Imaging® 3D to get the best possible view of fish and structure, below and to the sides of your boat.

LiveSight: Get live views of fish movements across the bottom, in and around cover and structure with new, revolutionary LiveSight™ sonar. Capable of showing views beneath, or in front of your boat, LiveSight™ is at its best when trolling at very slow speeds or fishing from a single spot. HDS LIVE comes LiveSight™ ready, so all you need to do is mount the LiveSight™ transducer and get after the fish.

C-MAP Genesis LIVE: Create your own high-definition 1/2-foot contour maps – in real time – on your HDS LIVE screen with C-MAP Genesis Live.

Smartphone Notifications: Keep your eyes on the fish and never miss an important text or call with smartphone notifications built into HDS LIVE. Turn off phone notifications for uninterrupted fishing, or leave them on to receive popup notifications on the screen of your HDS LIVE display.

FishReveal™ Smart Target View: Makes fish easier to see on DownScan Imaging™ by combining crystal-clear CHIRP sonar fish targets with superior, high-resolution views of bottom detail, structure and bait fish.

High Performance Processor: Whether panning the chart, tracking back through your sonar history or creating a Genesis LIVE map, you will get responsive, smooth operation with no lag from the dual-core processor at the heart of HDS LIVE. The high- performance processor can easily drive today’s technology, like Active Imaging 3D, LiveSight sonar, Genesis Live, StructureMap, Live Network sonar with power to spare for future innovations.

New, Modern, Low-Profile Design: Enhance the look of your console with the new, zero-edge glass design of HDS LIVE, featuring the exceptional crispness, vibrant images and extreme viewing angles of SolarMAX™ HD technology. Create clean, sleek look at the console with an HDS LIVE flush mount.

Live Network Sonar: Cover more water and mark fish targets more clearly from a network of CHIRP sonar transducers. Get sonar views from bow-mounted transducer and the in-hull or transom-mounted transducer at the same time on the same display.

Dual-Channel CHIRP: Deep water and trolling anglers will never miss a fish, watching two Lowrance CHIRP frequencies at the same time via a dual-channel CHIRP split screen. Run a High CHIRP panel for the best target separation close to the bottom or in tight schools, a Medium CHIRP panel to cover the widest area – ideal for watching bait schools under a transducer in shallow water, or go deeper with a Low CHIRP panel to cover more of the water column.

C-MAP® Easy Routing and Navionics® Dock-to-Dock Autorouting: You will navigate faster and easier with automatic route planning. Menu activated, the feature automatically plots the shortest and safest course based on a boat’s draft, beam and height, creating a route around a landmass, shoals and other fixed navigational hazards. Requires C-MAP MAX-N+ charts, Navionics+ or Navionics Platinum charts.

C-MAP Navigation Palette: Enhances the readability of C-MAP charts, especially near shore, where the colors used for land, docks, anchorage areas, water, and channels are nicely differentiated and water contour lines are distinct. That makes it easy to tell where the boat is in relation to a channel, navaid, ledges and drop-offs, or a point of land. The color scheme is much easier on the eye.

Wireless Connectivity: Integrated wireless connectivity with the Lowrance® LINK App and other onboard devices, allows you to download software updates and custom C-MAP® Genesis maps directly to the display and offers wireless smartphone viewing/tablet control of HDS Carbon displays.

Network All Components: Plug-and-play compatibility with Lowrance performance modules, including Broadband Radar™, SonicHub®2 Marine Audio, S, Class B AIS and DSC VHF, as well as industry-leading technologies, like Mercury® VesselView® Link, Bluetooth® control of Power-Pole® shallow water anchors equipped with the C-Monster™ Control System and the SmartSteer™ interface, featuring control of MotorGuide® Xi5 trolling motor and the Lowrance® Outboard Pilot.

Specifications

• Display: 9" Touchscreen 1280W x 720H
• Power Supply: 12 vDC (10-17 vDC min-max)
• Current Draw: 2.9 A @ 13 vDC

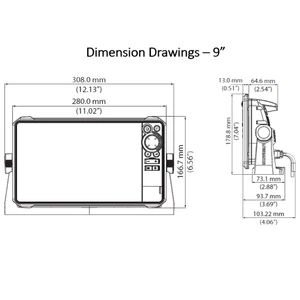

• Dimensions (mm) 308W x 78D x 167H
• Media port: 2 microSD slots
• Max Depth Per Sonar Operation:
  • DownScan Imaging™ at 455 kHz: Max 300 ft / 91 m
  • SideScan Imaging at 455kHz: Max 300 ft./91 m to each side
  • CHIRP: 3,500 ft / 1067 m (transducer dependent)
• Sonar power output:  Max 500W RMS
• Transducer Connection: 9 pin or 7 pin with optional adapter
• Chart options: C-map Max-N, Navionics+
• Routes: 200
• Waypoints: 5000
• Plot Trails: Up to 100 trails with upto 10,000 points per trail
• GPS Antenna Type: 10kHz Internal high-sensitivity WAAS/EGNOS/MSAS
• Connections: NMEA 0183, NMEA2000, Bluetooth, Ethernet
  • Channel 1 Transducer port: Blue 9-pin connector for Broadband/CHIRP sonar, StructureScan 3D with Active Imaging, SideScan and DownScan Imaging™, LiveSight Forward and Down
  • Channel 2 Transducer Port: Black 9-pin connector for Broadband/CHIRP sonar, Active Imaging 3-in-1 / 2-in-1, TotalScan, StructureScan HD with SideScan and DownScan Imaging™

  In The Box

• HDS-9 Live
• Suncover
• Power cable
• Fuse & fuse holder
• Mounting bracket & knobs
• Documentation
