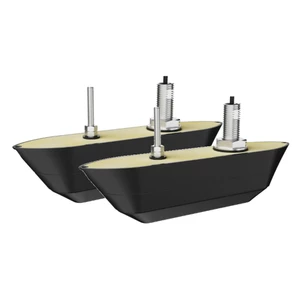

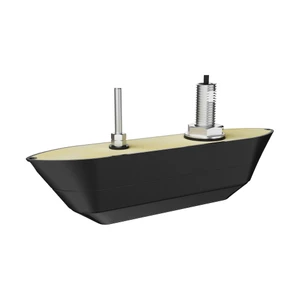

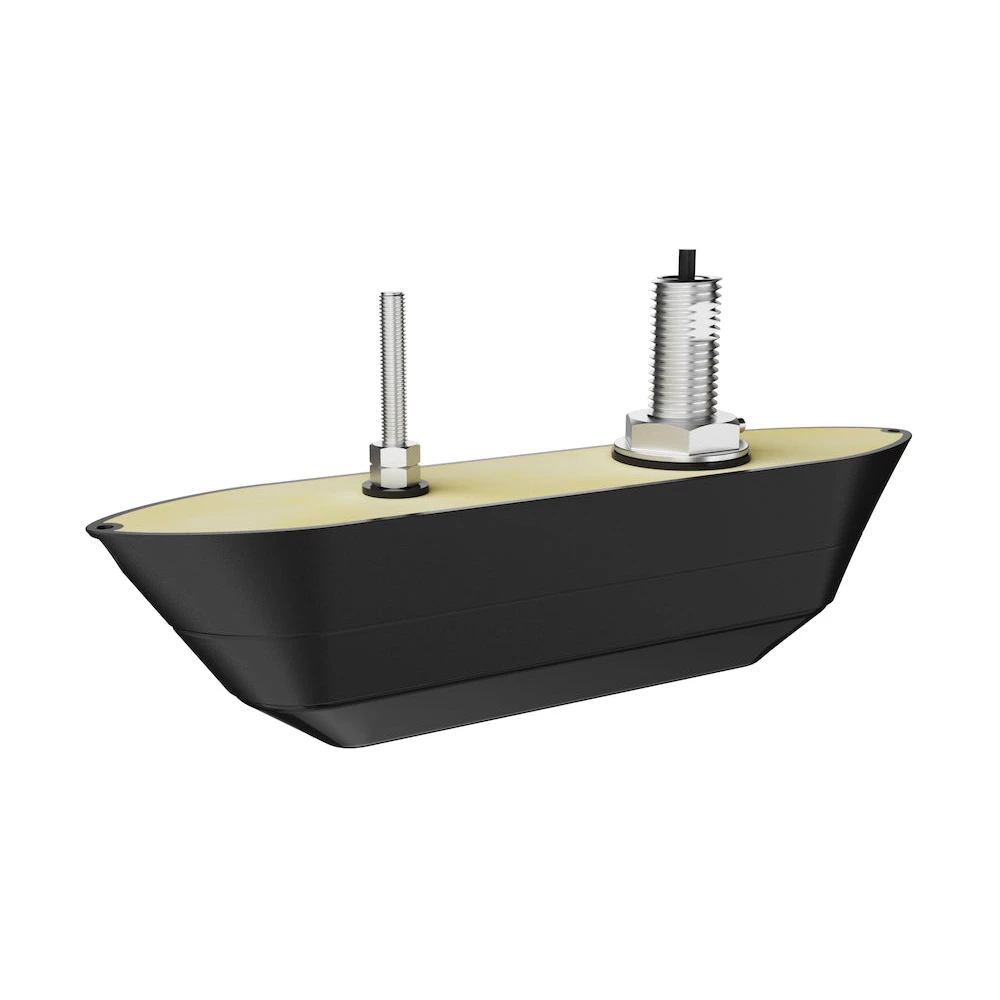

Navico Active Imaging HD 3-IN-1 Thru Hull Transducer

The clearest sonar ever, Active Imaging™ HD Thru-Hull Transducer delivers the highest-definition views of CHIRP, SideScan and DownScan Imaging™. Experience a new level of clarity and improved target separation with extremely detailed views of fish and fish-holding structure like rockpiles, standing timber, weedbeds, ditches, drop-offs and more.

FishReveal™

Get the best of CHIRP sonar and DownScan Imaging™ on one screen with the FishReveal DownScan view, a Lowrance exclusive that helps you easily recognize fish from structure and cover on high-detailed DownScan images.

Designed for Clarity

The Active Imaging™ HD Thru-Hull Transducer not only delivers three key sonar technologies – CHIRP, SideScan and DownScan Imaging™ – in one convenient package, but also features a new transducer design that boosts signal clarity.

• High definition (up to 1.2 MHz) SideScan and DownScan Imaging™ deliver the clearest images of fish and structure
• CHIRP with superb clarity and target separation
• FishReveal™ DownScan view makes fish identification easy
• Supports Medium and High CHIRP (83/200kHz) and 455/1.2 MHz frequencies
• Thru-Hull Installation
• Compatible with Lowrance HDS® PRO or with a S3100 module with HDS® LIVE and Elite FS™ & Simrad® NSX, NSSevo3s, NSOevo 3s

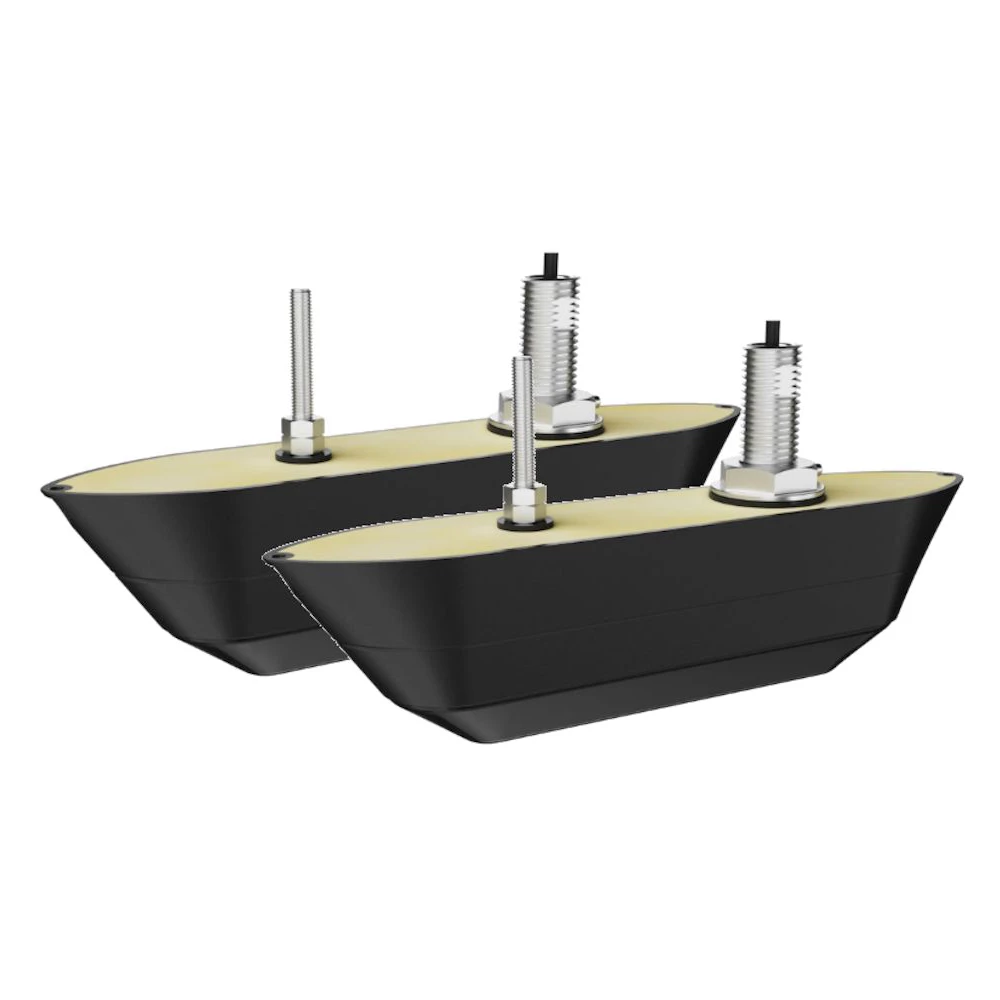

• Available as a Single or Pair

• Specifications

• Frequencies: CHIRP:High CHIRPMedium CHIRPBroadband:83 kHz200 kHzActive Imaging HD:SideScan:Low CHIRP: 455 kHz (445 kHz - 495 kHz)High CHIRP: 1075 kHz (1065 kHz - 1115 kHz)DownScan:Low CHIRP: 700 kHz (690 kHz - 740 kHz)High CHIRP: 1200 kHz (1190 kHz - 1240 kHz)
• Max Depth 2D Sonar:Broadband/CHIRP:200 kHz/High CHIRP - 500' (152.4m)83 kHz/Medium CHIRP - 1000' (304.8m)SideScan:High Frequency: 150' (45.72m)Low Frequency: 300' (91.44m)DownScan:High Frequency: 150' (45.72m)Low Frequency: 300' (91.44m)
• Transducer plug: Xsonic 9 pin

In The Box

• Active Imaging HD Transducer or pair of transducers
• Y cable (Pair only)
• Stainless Steel Mounting Brackets
• Fixing Hardware
