20A MPPT Pro Plus Solar Charge Controller
20A MPPT Pro Plus Solar Charge Controller
20A MPPT Pro Plus Solar Charge Controller
20A MPPT Pro Plus Solar Charge Controller 20A MPPT Pro Plus Solar Charge Controller 20A MPPT Pro Plus Solar Charge Controller

PV Logic 20A MPPT Pro Plus Solar Charge Controller

Catalogue Code: 120597
£119.95
In Stock Online
Save £30.05 RRP £150.00
See Product Description Check Stock in Store Add to Wish List
  • Get it on Tuesday, 12th November if ordered within the next --:--:-- and select Next Day Delivery *UK Mainland Only
  • Ask a question
  • Description
  • Availability
  • Delivery & Returns
  • Reviews
Description

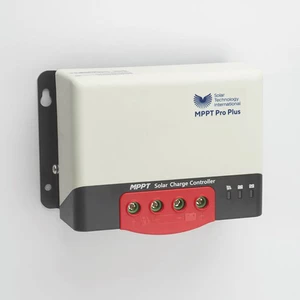

PV Logic 20A MPPT Pro Plus Solar Charge Controller

MPPT (multi power point tracking) technology increases solar yield by up to 20% over a standard PWM charge controller by artificially modifying the voltage coming from the solar panel by actively matching it to suit what a battery or batteries require, whatever state of discharge they may be in. This advanced algorithm ensures that whatever the weather conditions, a solar panel or panels will deliver the maximum power to a battery and with the minimum of electrical losses.

To ensure you have complete visibility of how your solar system is performing, a free to download Bluetooth App delivers live and historic data to monitor charge and discharge rates

The 20Ah MPPT Pro Plus provides protection for a battery against overcharging for any 12v solar panel or solar array up to 260w (520w for 24v) and is either an excellent choice for new installations or as an upgrade to an existing solar systems. Whether for leisure (caravan, motorhome, boat), industrial or solar off grid systems the MPPT Pro Plus will more than pay back its cost through the extra power it delivers.

  • Reverse current protection.
  • Efficient MPPT charging, increases battery lifetime and improves solar system performance up to 20%.
  • 12/24V automatic recognition.
  • Overload protection
  • Open circuit protection
  • Lightning surge protection
  • Deep discharge protection
  • Charge current protection up to 20A
  • Bluetooth with Apple and Android apps available

Specifications

  • Nominal System Voltage: 12/24VDC (automatic system voltage recognition)
  • Battery Voltage Range: 9-32V
  • Rated Battery Current: 20A
  • Self-consumption: ≤10mA
  • Over Voltage Disconnect Voltage: 16V/32V
  • Charging Limit Voltage:  15.5V/31V
  • Equalize Charging Voltage: 14.4V/28.8V
  • Float Charging Voltage: 13.8/27.6V
  • Operating temperature:               -35oC to +45oC
  • Overall dimensions: 150 x 105.6 x 61.5mm
  • Mounting hole size (in case): 3.8mm
  • Terminal size: 10mm2
  • Net weight: 650g

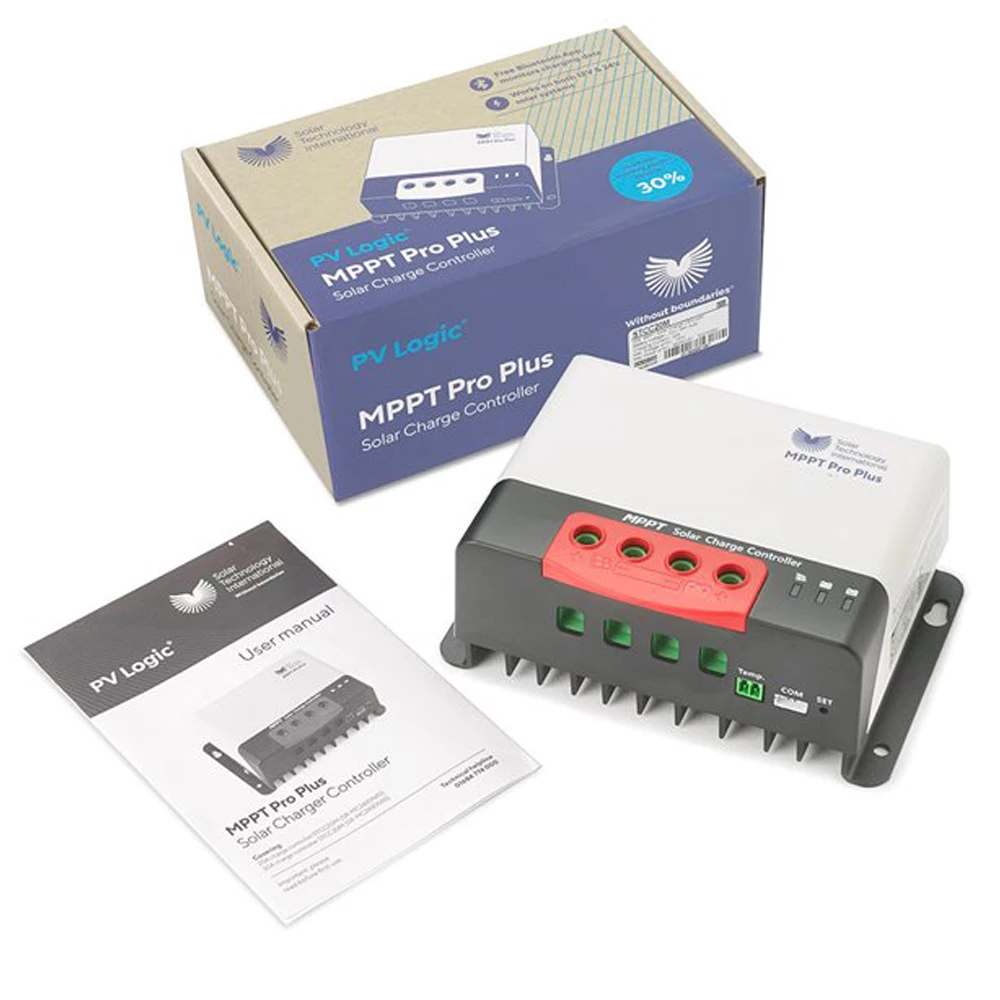

In The Box

  • 1 x 20A MPPT Pro Plus charge controller
  • 1 x instruction sheet
