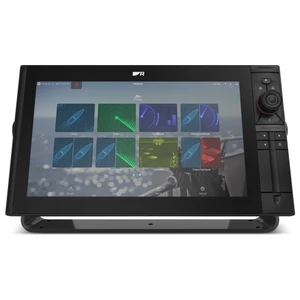

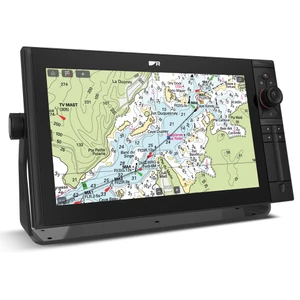

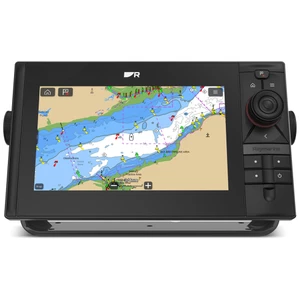

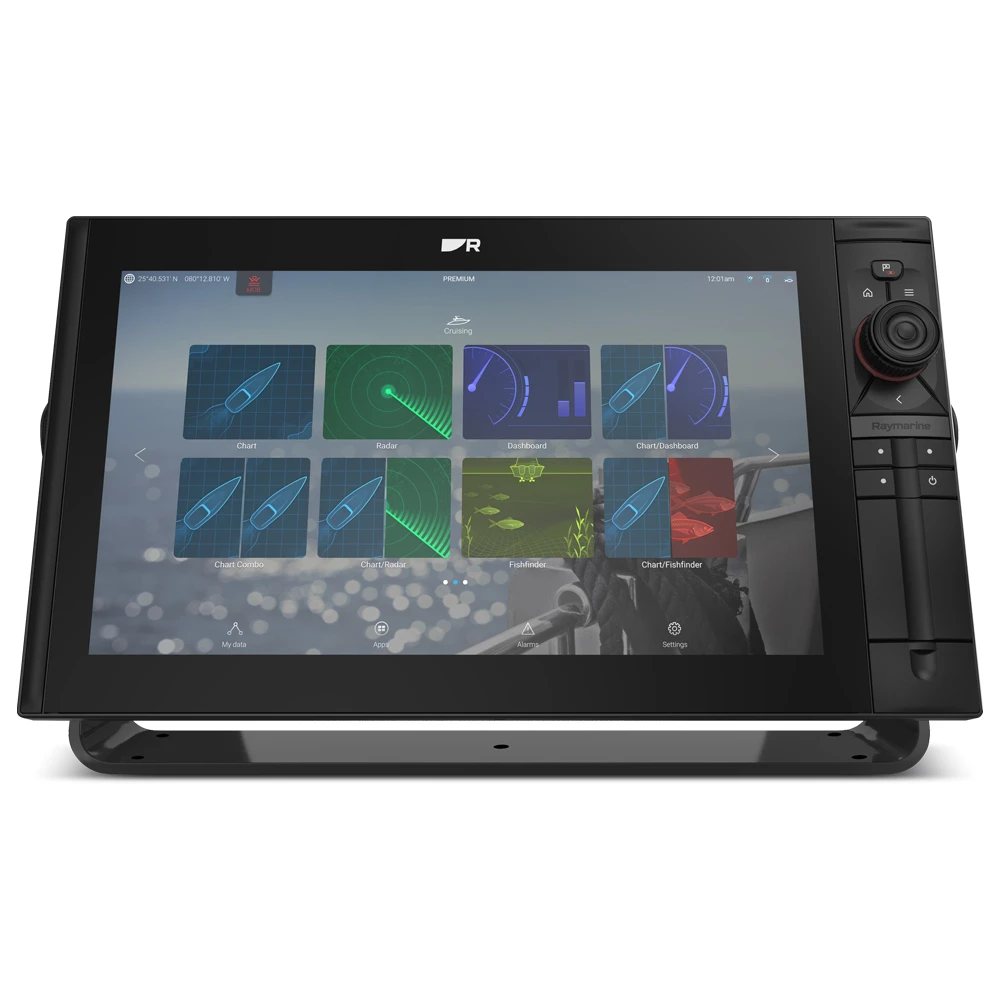

Raymarine Axiom2 Pro S

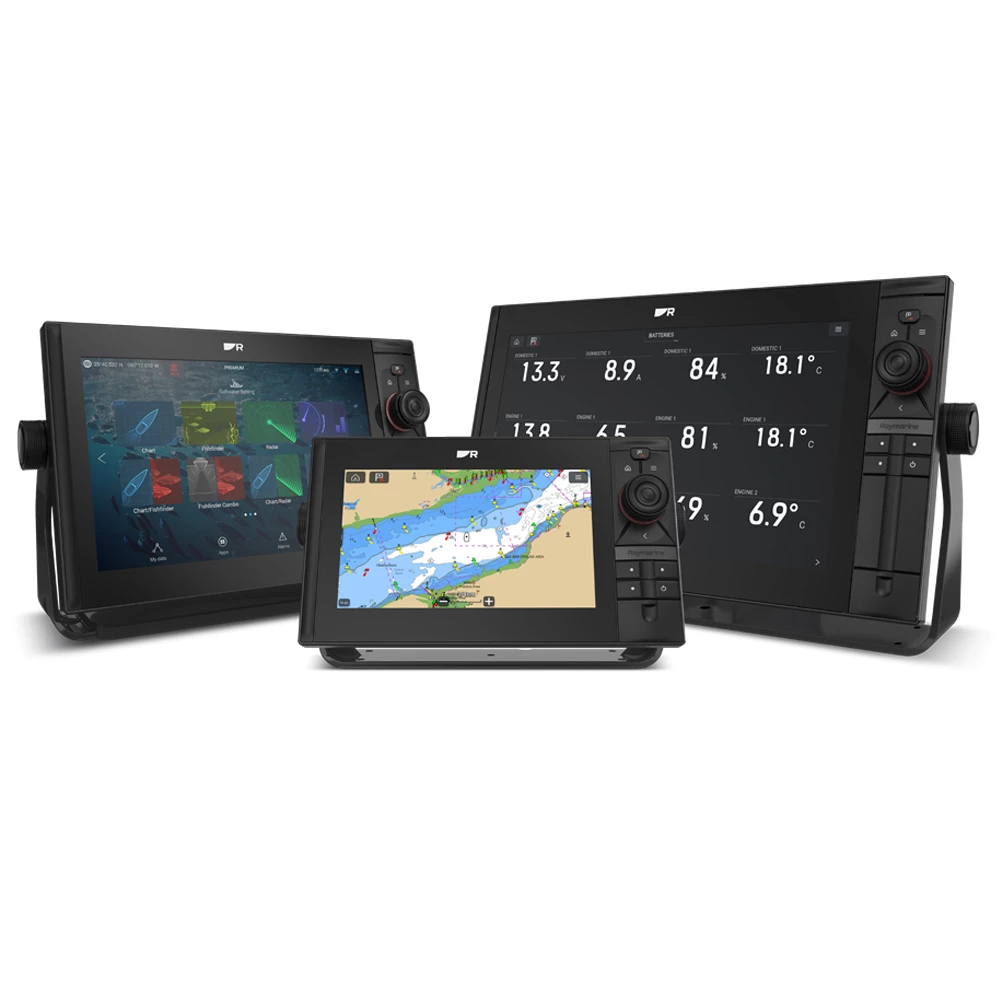

9, 12, and 16 inch HybridTouch chartplotters with single channel CHIRP sonar

Axiom 2 Pro S combines chartplotter, sonar, radar, autopilot, and video into a powerful all-in-one navigation system. Plan your next cruise and get underway confidently with Axiom 2 Pro’s HybridTouch™ — a simple touchscreen and keypad experience made possible by the intuitive LightHouse operating system. Use Axiom 2 Pro as a single GPS chartplotter or create a network of multiple Axiom displays with a simple RayNet cable connection. More than just a chartplotter, Axiom Pro 2 S features an integrated high CHIRP sonar, the ideal sonar for reliable depth soundings and underwater discovery.

POWER THAT PUSHES THE LIMITS

Get underway quickly with Axiom 2 Pro’s powerful 6-core processor. Chartplotter, radar, autopilot, and video are integrated seamlessly and faster with the super intuitive LightHouse operating system.

READY FOR ALL CONDITIONS

Axiom 2 Pro's HydroTough™ nano-coating technology repels water for reliable touchscreen control, enhanced colors, and excellent sunlight visibility.

Smart backlighting and an ambient light sensor automatically adjust display brightness for day and evening lighting conditions.

CONFIDENT CONTROL

Plan and plot your course with HybridTouch™ control and take command with reliable keypad control when seas are rough.

Customize your Axiom 2 Pro with interchangeable keypads. Choose a dedicated Evolution autopilot keypad or user-programable soft keys.

ADVANCED SAILING TOOLS

Axiom 2 Pro offers a suite of powerful features to help you optimize your performance under sail.

Polars and Dynamic Laylines

Axiom is preloaded with over 500 racing and cruising sailboat polar profiles. Load your polar profile and see how you measure up against your boat’s maximum potential. View real-time, dynamic laylines on your chart based on polars or fixed angles.

Race Like a Pro

Adjustable race timers, data dashboards, and a SmartStart™ starting line tool help you anticipate and visualize the start of your race. See line bias, time to burn as well as the favored end. Cross the line on time, at maximum power.

Tactical Advantage

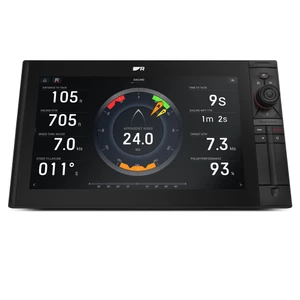

Sailing and tactical-specific dial indicators let you see the direction to steer at a glance to maximize your boat’s Velocity Made Good (VMG) to windward. Trimming sails for optimum performance is now easier than ever.

Advanced Engine Integration

Connect with NMEA2000-compatible engines or experience advanced integration with Mercury SmartCraft and Yamaha Command Link engines

Stream, Watch, and Listen

Stream Netflix and Spotify, connect and control Fusion, JL Audio, and Rockford Fosgate marine audio systems, or view Axiom 2 Pro on the big screen with HDMI output.

Axiom on your Smartphone

Built-in Wi-Fi lets you view and control your Axiom 2 Pro on your phone or tablet with the Raymarine Mobile App.

Specifications

Display

• Type: IPS (In-Plane Switching)
• Axiom 2 Pro 9: 9.0" 1280 x 720 HD 1300 nits
• Axiom 2 Pro 12: 12.1" 1280 x 800 WXGA 1200 nits
• Axiom 2 Pro 16: 15.6" 1920 x1080 FHD 1200 nits
• Viewing Angle: Top 88° / Bottom 88° / Left 88° / Right 88°

Sonar

• Type: CHIRP conical sonar
• Depth range: 0.6 m (2 ft) to 274 m (900 ft) Depending on water conditions
• Transducer connection: 25 pin RealVision type connector. Requires the A80490 adaptor cable for CPT-S style transducers

GPS (GNSS)

• Antenna: Internal - Ceramic chip mounted near top of unit
• GNSS compatibility: GPS, Galileo, GLONASS, Beidou
• Refresh rate: 10 Hz (10 times per second)

Power

• Nominal supply voltage: 12 V dc / 24 V dc
• Power consumption @ 12 V dc: 9” - 33.12W, 12” – 29.88W, 16” - 42.36W

Environmental

• Operating temperature : -25°C to +55°C (-13°F to 131°F)
• Relative humidity: Up to 93% @ 40°C (104°F)
• Waterproof rating: IPx6, IPx7

Connections

• Ethernet connection: 2 RayNet (10/100/1,000 Mbits/s) ports
• NMEA 2000 connection: DeviceNet connector
• Wi-Fi: Multiband - 2.4GHz, and 5Ghz 802.11b/g/n
• Bluetooth: v4.0
• Accessory connection: USB Micro B
• External storage: 2 front mounted MicroSDXC card slots
• Digital Video and Audio: HDMI Out Micro connector type D
• Analog video connections: BNC Analog video input (on power cable)
• Analog audio connections: RCA connectors via power cable
• External GPS antenna: TNC connector

Dimensions

Trunnion Mounted

• Axiom 2 Pro 9 (mm): 186.2H x 329.5W x 234.9D (including cables)
• Axiom 2 Pro 12 (mm): 246.13H x 388.5W x 233.4D (including cables)
• Axiom 2 Pro 16 (mm): 281.2H x 482.5W x 233.4D (including cables)

Surface/Flush Mounted

• Axiom 2 Pro 9 (mm): 173.8H x 299.3W x 234.9D (including cables)
• Axiom 2 Pro 12 (mm): 222.8H x 358W x 233.4D (including cables)
• Axiom 2 Pro 16 (mm): 258H x 452W x 240.4D (including cables)

In The Box

1. Display unit
2. User Configurable Keypad
3. Suncover
4. Gasket
5. Trunnion bracket (Axiom 2 Pro 9 and 12 Only)
6. Trunnion knobs (x 2)
7. Optional grounding connection (Screw (M3x5), Spring washer (M3), Crimp terminal (M3))
8. DeviceNet to SeaTalkng adaptor cable 1m (3.28 ft)
9. RayNet (Female) to RayNet (Female) network cable 2 m (6.56 ft)
10. Mounting fixings x4
11. Documentation
12. Power/Video/Audio cable 1.5 m (4.92 ft)
