Raymarine EV-200 Autopilot Hydraulic Pack

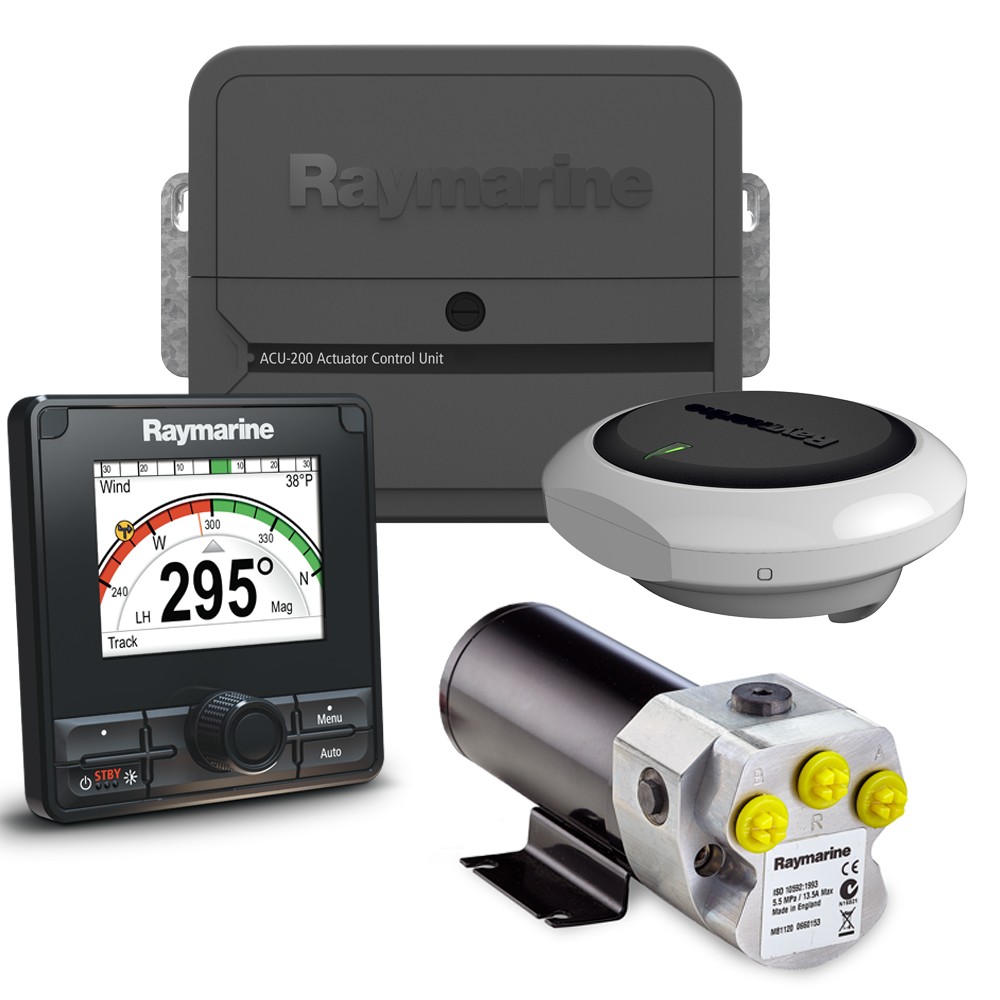

Evolution Autopilot with p70R, ACU-200 & Type 1 Hydraulic pump designed for mid-sized power vessels with hydraulic steering.

Raymarine SKU: T70157

EV1 Sensor Core
The EV-1 is designed for Evolution mechanical and hydraulic autopilot systems. SeaTalkng networking enables a single cable connection for power and data to the Evolution ACU (actuator control unit) and extended SeaTalkng and NMEA2000 networks.

ACU-200
The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus.

p70R Autopilot Control Head (Power)
The p70R autopilot control head is designed for power craft with push buttons and a rotary control dial. Advanced LED backlighting offers low power consumption and delivers vibrant colour and contrast. Wide horizontal and vertical viewing angles ensure the display can be seen clearly from acute positions.

The p70R control head also features the LightHouse user interface and a start up wizard to help you configure the pilot quickly and easily.

Type 1 Hydraulic Pump (12V)
The Type 1 Hydraulic Pump is intended to operate the boat’s steering mechanism as part of a Raymarine autopilot system. It is primarily designed for use on boats with an existing hydraulic steering system. Alternatively, you can use this pump on a boat with mechanical steering in conjunction with a secondary steering ram.

The hydraulic pump contains a precision gear pump and a check valve driven by a servo motor.

Features

• Automagic™ - No lengthy calibration procedures to perform. No compass calibration required. Plug and play connections
• Easy to install - Freedom from the restrictions of conventional heading sensors. EV sensor core can be installed above or below deck. Install upside-down or off the vessel's centre line.
• Aerospace technology - 9-axis precision monitoring of pitch, roll, yaw and heading
• Fuel efficient - Evolution autopilots steer so accurately they will save fuel and get you to your destination faster

Specifcations

EV-1 Sensor Core

• Nominal supply voltage 12 V (powered by SeaTalkng system)
• Power consumption (taken from SeaTalkng system) 30 mA
• Sensors: 3-axis digital accelerometer, 3-axis digital compass,3-axis gyro digital angular rate sensor
• Data connections: SeaTalkng
• Waterproof rating: IPX 6
• Diameter: 140 mm (5.5 in)
• Depth (including mounting enclosure): 35 mm (1.4 in)
• Depth (including wall bracket): 95 mm (3.8 in)
• Weight: 0.29 kg (0.64 lbs)

ACU-200

• Nominal power supply: 12 V or 24 V
• Drive current output: maximum continuous 15 A at supply voltage
• Drive clutch output: up to 2.0 A continuous, selectable between 12/24 V
• Connections: Rudder reference sensor, Sleep switch, Power, Drive motor, Drive clutch, Ground
• Power consumption (standby) main power supply: ACU-200/300/400: 300 mA (12/24 V)
• Power consumption (standby) SeaTalkng power supply: 20 mA (12 V)
• SeaTalkng power out: 3 A at 12 V (fuse protected at 3 A)
• Data connections: SeaTalkng
• Waterproof rating : Drip resistant
• Dimensions (mm): 285W x 211.5H x 64.5D
• Weight: 2.2kg (4.84 lbs)

Type-1 Hydraulic Pump

• Ram Capacity: 80cc – 230cc
• Maximum Stall Pressure at 12V: 50bar (750psi)
• Peak Flow Rate (No Load): 1000cc/min (67in3/min)
