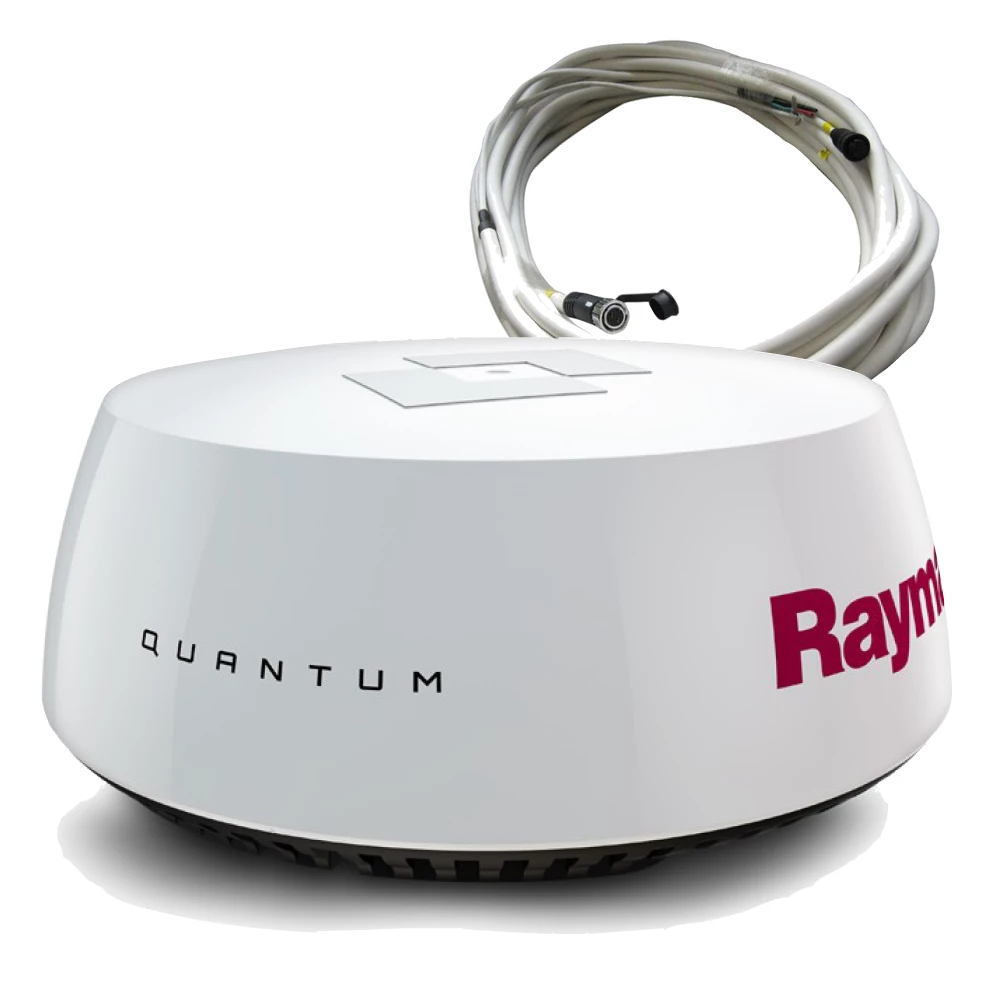

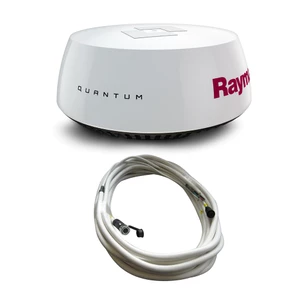

Quantum Q24C Wireless Chirp Radar With 10m Data Cable
Quantum Q24C Wireless Chirp Radar With 10m Data Cable
Quantum Q24C Wireless Chirp Radar With 10m Data Cable Quantum Q24C Wireless Chirp Radar With 10m Data Cable
Raymarine

Raymarine Quantum Q24C Wireless Chirp Radar With 10m Data Cable

Catalogue Code: 220386
£1,849.95
Out Of Stock
Save £245.05 RRP £2,095.00
See Product Description Check Stock in Store Add to Wish List
  • Ask a question
Optional Extras Tick to add optional extras to your basket
4 degree Radar Wedge
4 degree Radar Wedge £159.95 Save £26.05 RRP £186.00
Composite Power Tower PT2004 White
Composite Power Tower PT2004 White £454.95 Save £71.85 RRP £526.80

View all 11 optional extras

  • Description
  • Availability
  • Delivery & Returns
  • Questions & Answers
  • Reviews
Description
Raymarine Quantum Q24C Wireless Chirp Radar With 10m Data Cable

Raymarine Quantum Radar is the next generation of marine radar featuring CHIRP pulse compression technology.

Setting a new standard for compact solid state radar, Quantum delivers superior radar imaging on both long and extremely short ranges. Integrated Wi-Fi and thin cabling simplifies installation plus Quantum’s energy efficient and lightweight design provides safe radiated emissions and substantially reduced power consumption

Superior Radar Imaging
Raymarines exclusive ATX™ advanced target separation technology displays targets like boats, landmarks, rocks, buoys, and weather cells with unsurpassed resolution and separation quality

CHIRP Pulse Compression
Excellent short-range detection and enhanced target detail with 18’ (6m) minimum range
CHIRP Pulse compression ensures more energy reaches each target, resulting in superior imaging on long ranges

Small Target Detection
Quantum’s CHIRP Pulse Compression technology identifies small, weak targets, even when positioned close to strong returns.

Immediate Awareness
Quantum solid-state technology is ready to use in seconds, without any lengthy warm up period.

Simplified Installation
Simple Wi-Fi connection between Quantum and any Raymarine LightHouse II powered MFD
Quantum’s small diameter power cable is easy to route through tight spaces
Easy to upgrade – Quantum uses the same bolt pattern as previous generation radars. Optional Quantum adapter cable eliminate the need to run new radar cables

Energy Efficient and Lightweight Design
Weighs 50% less than traditional magnetron radars
Safe Emissions thanks to Quantum’s low power solid state radar transmitter
Very low power consumption (17 Watts transmit and 7 watts standby)
Extended vessel battery life when under sail

Specifications

  • Input Voltage: 12 or 24 Vdc (Min: 10.8V, Max: 31.2 V)
  • Networking Wi-Fi or wired Ethernet (RayNet)
  • Power Consumption:Transmit mode 17W; standby mode 7W; sleep mode 2W
  • Range Scales: From 1/16 to 24 nautical miles
  • Transmit Frequency: 9354 to 9446 MHz
  • Peak Power Output: 20W
  • Noise Less than 4 dB
  • Max. Range Scale from 1/16 to 24 nautical miles
  • Beamwidth (nominal) 4.9º horizontal and 20º vertical
  • Waterproofing: IPX6
  • Weight: 5.6 kg (12.3 lb)
