Rocna Mark II Anchor

ROCNA MK II: PERFECTING THE IDEAL

An idealized form of the Rocna design, the Rocna Mk Il is based on the same proven design pattern as the original, but refines every element close to perfection.

The Rocna has established the highest performance and consistency of behavior when put to the test both by a worldwide array of boaters and in numerous independent tests. This performance is the result of careful design and engineering by Rocna designer Peter Smith, and it is all completely retained and tuned in the new Rocna Mk II.

ANCHOR ANXIETY IS A THING OF THE PAST

Rocna anchors set fast and hold in all conditions, so you and your family or crew don’t have to be on constant tenterhooks. For the safety of your vessel, and everyone aboard, invest in the best anchor available. The anchor made by those who understand that when the storm hits, you need a rock solid anchor.

KEY FEATURES

• HIGH QUALITY BUILD AND FINISH Compare welds and finish on a Rocna anchor to other alternatives. A top performing product should be built like one, so the Rocna is manufactured with the highest standards of production and quality control to ensure a superior finished anchor.
• GUARANTEED FOR LIFE Each anchor comes with a Lifetime Warranty against manufacturing defects plus both breakage and bending.
• WIDE COMPETITIVELY PRICED PRODUCT RANGE Available initially in sizes from 4 kg (9 lb) to 100 kg (220 lb) to suit small boats all the way to large yachts. Larger sizes coming soon.
• PRECISION SETTING: the roll-foil™ (A) ensures the anchor always arrives at the ideal angle for penetration, and helps the skids guide the fluke tip which chisels into the seabed for an instant reliable burial.
• ROCK SOLID HOLDING POWER: A concave fluke (C) gives the greatest resistance. In soft seabeds, this provides the secure holding power you need. On hard or weedy sea floors, the weighted chisel tip (B) cuts through and bites deep.

• ROLL-FOIL™: Sculpted from the Rocna roll-bar, the patented roll-foil™ (A) providing even surer self-righting for the most dependable set. The roll-foil’s sections vary in profile, each designed for its own dynamic role: to provide extra assistance if the anchor lands upside-down, to help during setting for deeper penetration and greater holding once buried (1), and to improve soil flow for reduced clogging.

• FLUKE The Rocna fluke (C) has been redesigned and optimized for weight distribution, penetration, and strength. It enjoys a new weighted and reinforced tip (B). Steel moved (2) from where it is extraneous, to where it aids. The tried-and-true Rocna fluke is increased in surface area (3), for a substantial boost in holding power. And all attained with no trade-offs.

ANCHOR DIMENSIONS

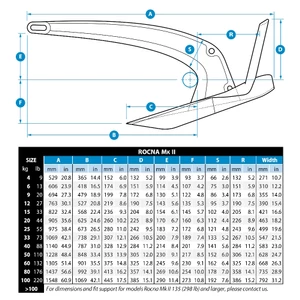

The below dimensional drawing provides a good guide to the fit of the Rocna Mk.2. For more precise fitment, you can download one of the full sized PDF files below. These can be printed at full size on a few sheets of A4 paper, laid onto a piuece of scrap cardboard and cut out to give a life size side profile of the anchor.

WHAT SIZE ANCHOR DO I NEED?

The size guide below will help identify the correct anchor for your vessel. Remember the below is based on an anchor suitable for use in up to 50kts of wind, so for most people you won't need to 'go up a size', but it's also only a guide, so feel free to interpret it as you see fit. As a general rule we recommend that perhaps multihul vessels, large flybridge boats and those who may encounter extreme weather should consider increasing the anchor size slightly, or if they are between two sizes, picking the larger.

WILL IT FIT?

Download the PDF drawing here: 4kg/9lb | 6kg/13lb | 9kg/20lb | 12kg/26lb | 15kg/33lb | 20kg/44lb | 25kg/55lb | 33kg/73lb | 40kg/80lb | 50kg/110lb | 60kg/132lb | 80kg/176lb | 100kg/220lb
