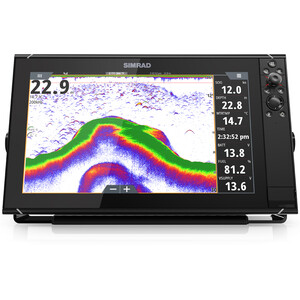

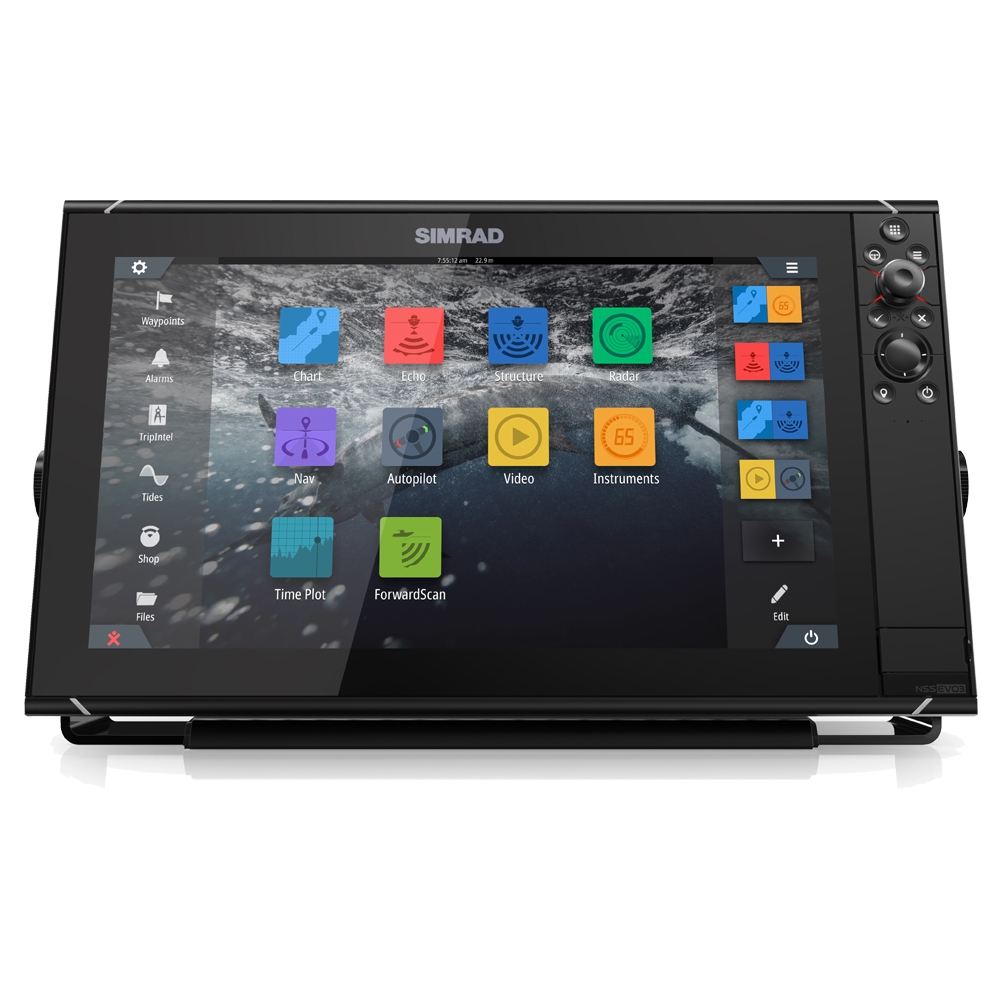

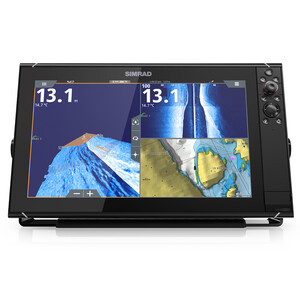

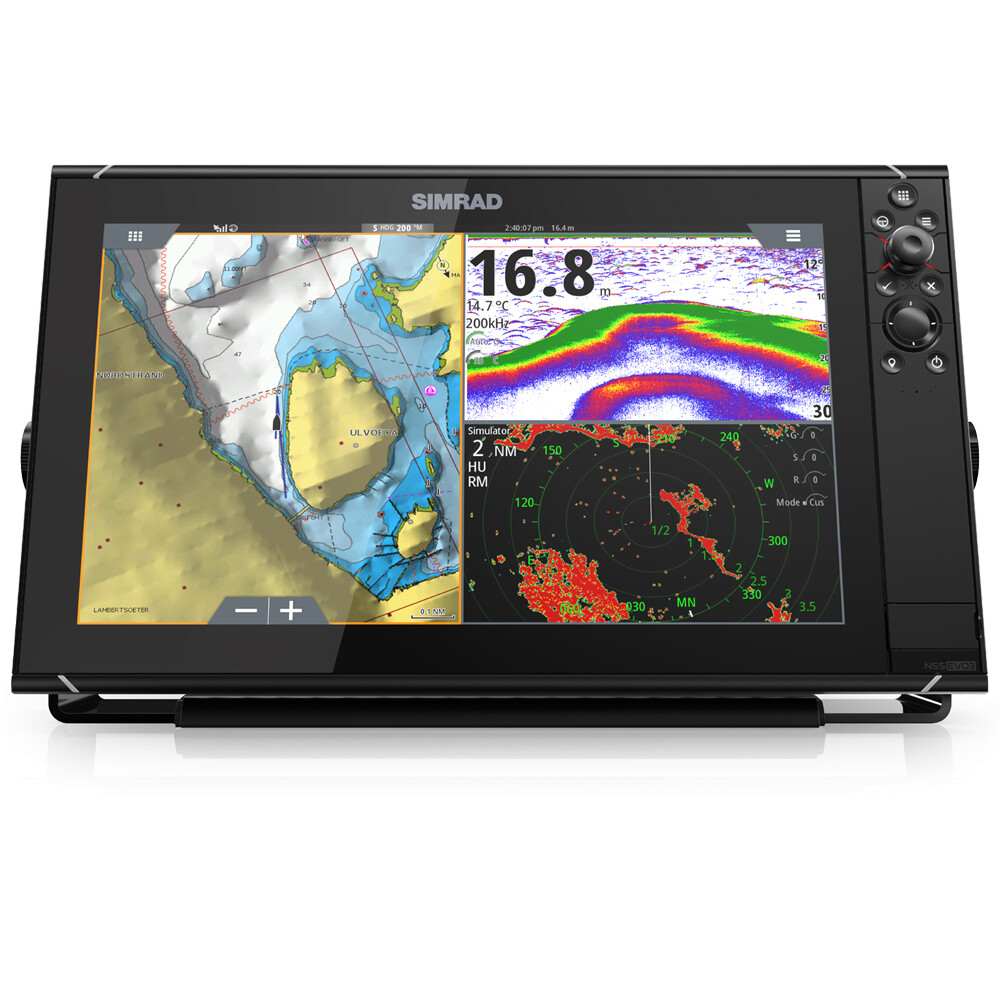

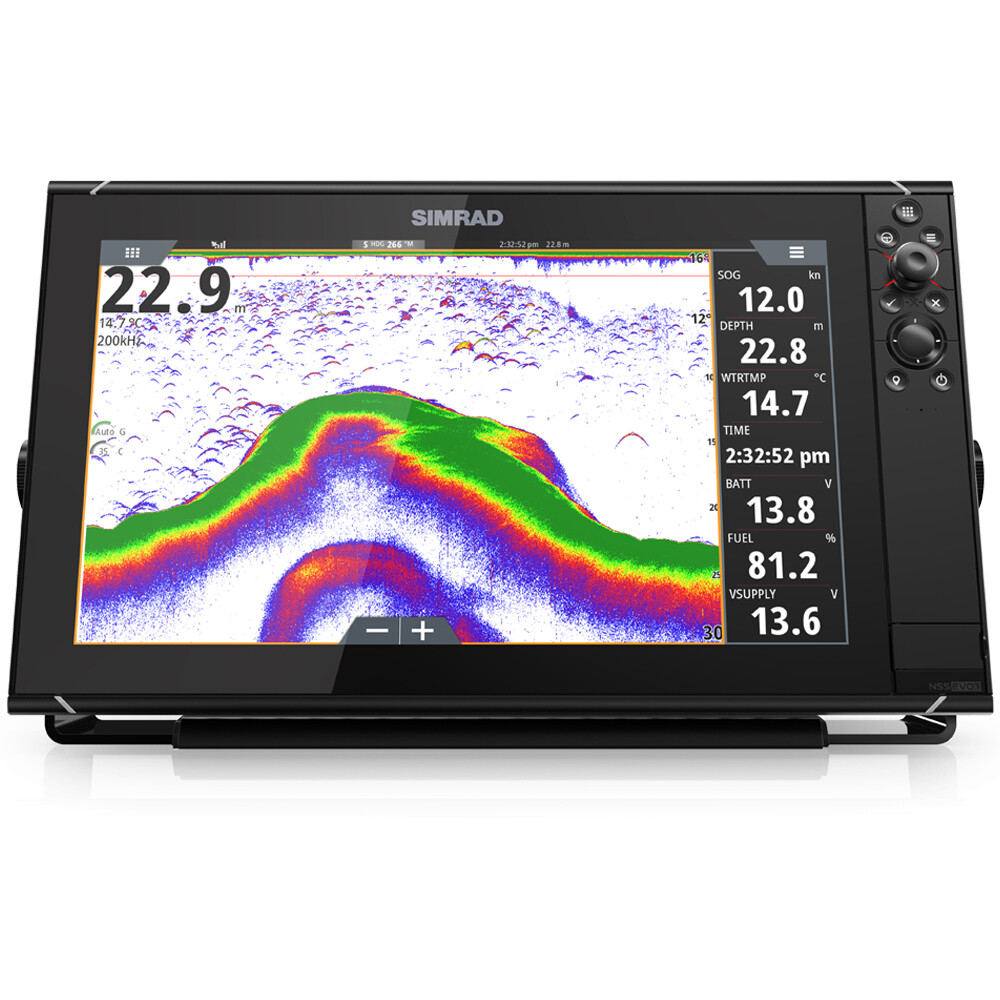

Simrad NSS Evo3 16 Multifunction Display

Navigate, take control, and enjoy an unprecedented level of built-in functionality with NSS evo3. SolarMAX™ HD display technology offers exceptional clarity and ultra-wide viewing angles, combined with an all-weather touchscreen and expanded keypad for total control in all conditions. Cruise confidently with ForwardScan sonar, or fish easier with StructureScan® HD imaging and dual-channel CHIRP-enabled Broadband Sounder™ technology. Built-in Wi-Fi enables access to GoFree® online services, and delivers smartphone monitoring and tablet control to extend your display’s reach well beyond the helm. The NSS16 evo3 features a 16-inch display perfect for centre consoles and other installations where space is at a premium. Includes world basemap.

Key Features

• 16-inch widescreen SolarMAX™ HD display
• Reliable control in all conditions: switch seamlessly between multi-touch and a full keypad with rotary dial
• Integrated echosounder featuring dual-channel CHIRP, ForwardScan® sonar, and StructureScan® HD imaging
• Add StructureScan® 3D imaging, advanced Broadband Sounder™ capabilities and more via Simrad modules
• Expand your view with Halo™ Pulse Compression radar, Broadband 3G™/4G™, and other Simrad radar solutions
• Take complete control of Simrad autopilot systems with the NSS evo3 touchscreen or keypad
• NMEA 2000® connectivity enables integrated engine monitoring, sound system control, and much more
• Navigate accurately with an embedded high-gain 10 Hz GPS/GLONASS receiver
• Enjoy easier trip planning with TripIntel™ technology and support for Navionics Autorouting/C-MAP Easy Routing
• Built-in GoFree™ Wi-Fi enables online features and smartphone monitoring/tablet control
• Choose flush-mount installation for a low-profile Glass Bridge look, or bracket-mount to install almost anywhere
• Includes world basemap

Specifications

• Dimensions (W x H x D) 437 x 1256 x 98 mm (1719 x 10.08 x 3.82")
• Size and Type 16" IPS optically bonded TFT
• Resolution 1080 x 1920
• Interface Full touch screen (multi-touch )
• Weight 456kg (10.25 lbs.)
• External Storage 2 MicroSD slots, max. 32GB each
• Internal Storage 16GB
• Waterproof rating IPX6 and 7
• Supply Voltage 10 - 31.2 V DC
• Operating Temperature Range -15°C to +55°C (5° F to 131° F)
• Connectivity: WiFi, Bluetooth, NMEA 0183, NMEA 2000, Ethernet
• Video 2 x composite (RCA connectors) video inputs.
• Waypoints, Routes, Tracks 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.
• Cartography included World basemap (no detailed charts)
• Cartography supported Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts)
• Compatible with Radar, AIS, Sonichub, Fusion Link
• Weather : GRIB
• GPS: Internal GPS & GLONASS
• Autopilot Support Full auto pilot control and commissioning
• Sonar (inc. compatibility) Two 9 pin Xsonic Sonar ports. Sonar port 1: Single channel CHIRP, 50/200 khz, HDI. Sonar port 2: Single channel CHIRP, 50/200 khz, TotalScan, LSS HD, ForwardScan.

In the box

• NSS Evo3 16 MFD
• Mounting bracket
• Dash mount Kit
• Edge bezels
• Sun cover
• 2m power cable
