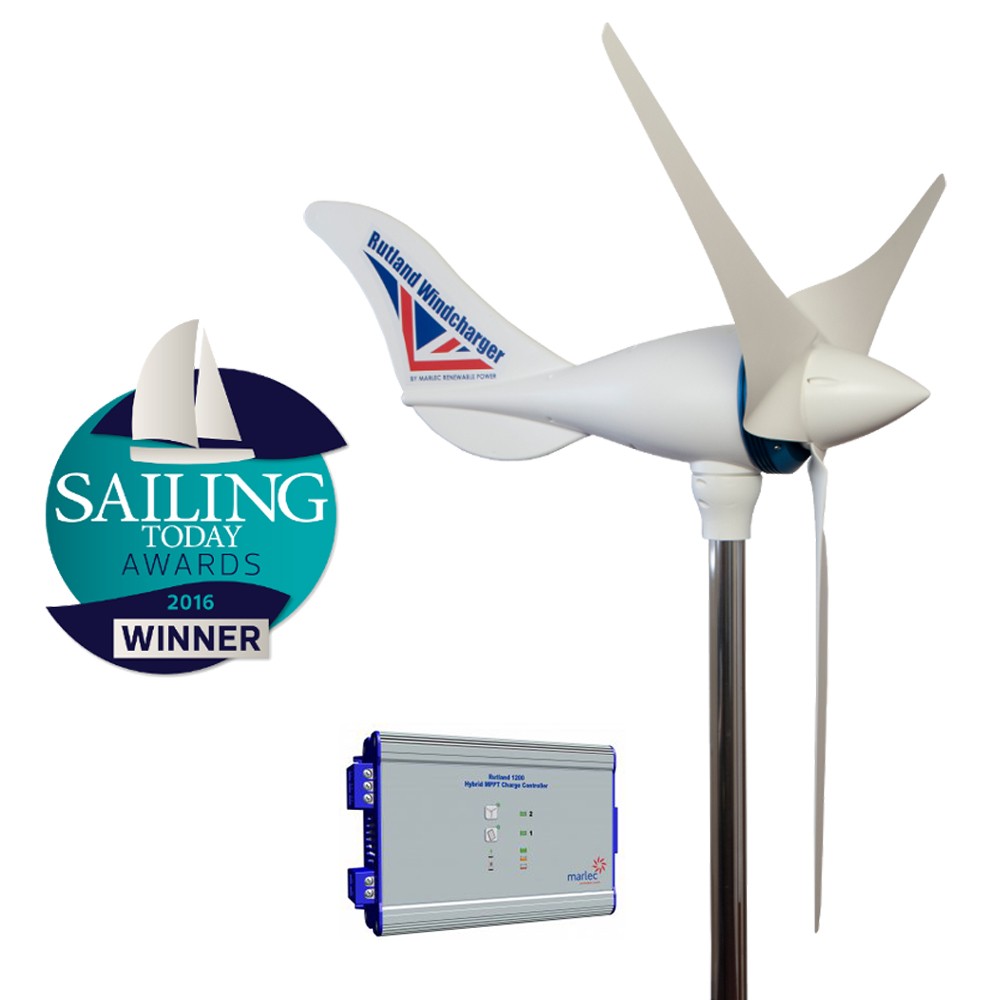

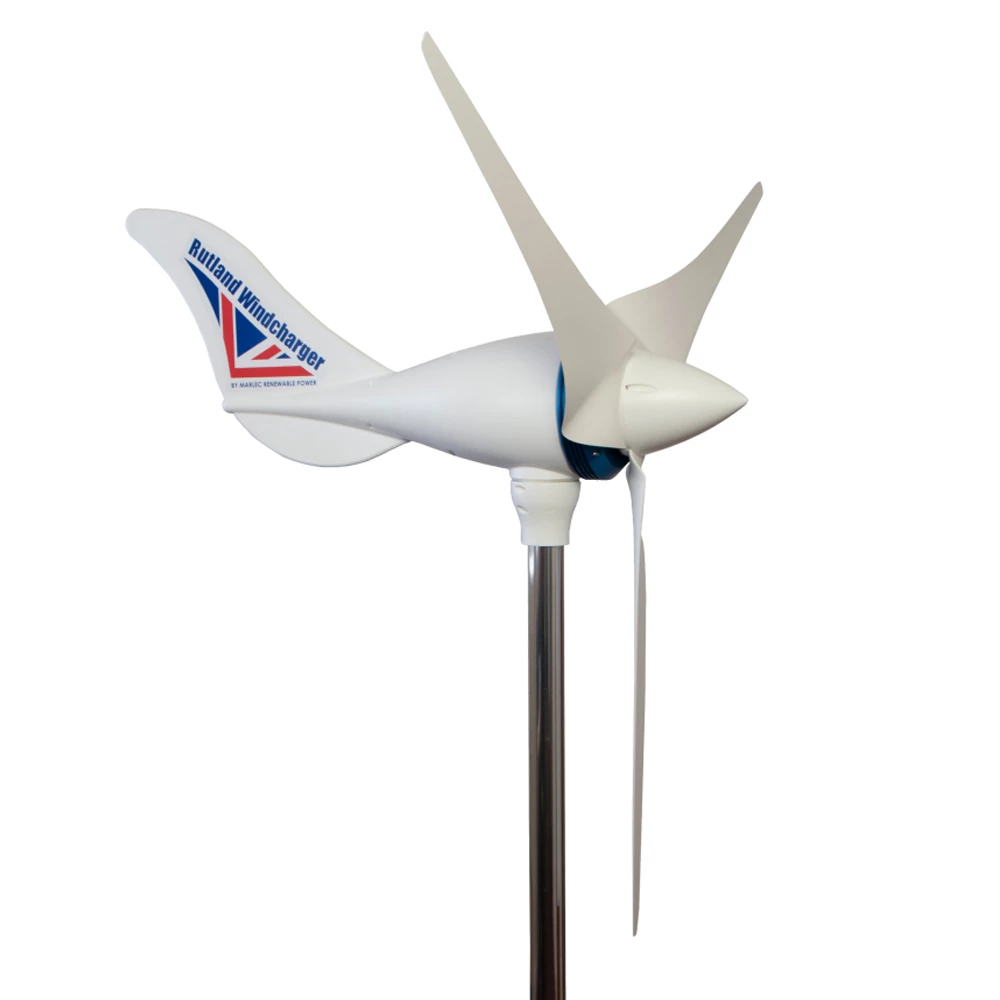

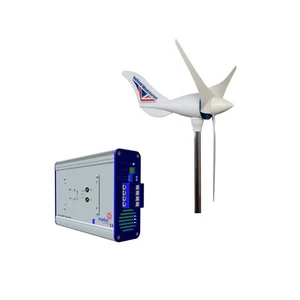

rutland WG1200 Windcharger 24V

With new Tri-namic profile blades, the Rutland 1200 is designed for users seeking higher generating capacity. The Tri-namic blade design delivers very low windspeed start up & almost silent operation across all wind speeds whilst delivering more power than other turbines in its diameter range.

Typical Applications:

• Long distance cruising
• Coastal cruising
• Narrowboats and barges
• Electric Boats

Features:

• Includes the controller - also accepts input from up to 20A of solar panels, for charging up to 2 separate battery banks
• Automatic turbine speed reduction as batteries reach capacity, resumes as batteries deplete
• Manual shutdown switches for wind & solar inputs
• LED charge & battery condition indicators
• 3 Phase AC power delivered from the turbine to the controller minimises voltage drop on long cable runs
• Low friction generator responds rapidly to windspeed changes & its inertia drives the turbine on between gusts to capture more energy
• Power optimising Maximum Power Point Tracking (MPPT) boosts the turbine#s output
• Marine grade stainless steel & aluminium construction

Specifications:

• Cut in Wind Speed: 5knots / 2.5 m/s
• Turbine Output:
  • 40W @ 10 knots / 5 m/s
  • 290W @ 21.5 knots / 11 m/s
  • 483W @ 29 knots / 15 m/s
• Blade Circle Diameter: 1220mm
• Turning Radius: 620mm
• Fits Pole Diam: 41mm
• Minimum Tower Height: 2.7 metre / 9 ft
• Weight: 7.8kg

Hybrid MPPT Controller

This purpose designed Rutland 1200 Marine Hybrid Controller incorporates hi-tech features to fully optimise power generation from both the turbine and solar panels and to prevent overcharging the batteries. The facility for charging 2 battery banks is an especially useful feature on-board.

By design the controller will operate with lead acid, AGM and gel batteries. The charge parameters can be programmed using the Rutland Controller Interface cable and PC App for other battery technologies.

Contoller Dimensions & Weight:

• 258mm x 164mm x 68mm / 10" x 6.45" x 2.67"
• 1.3kg / 2.86lbs
