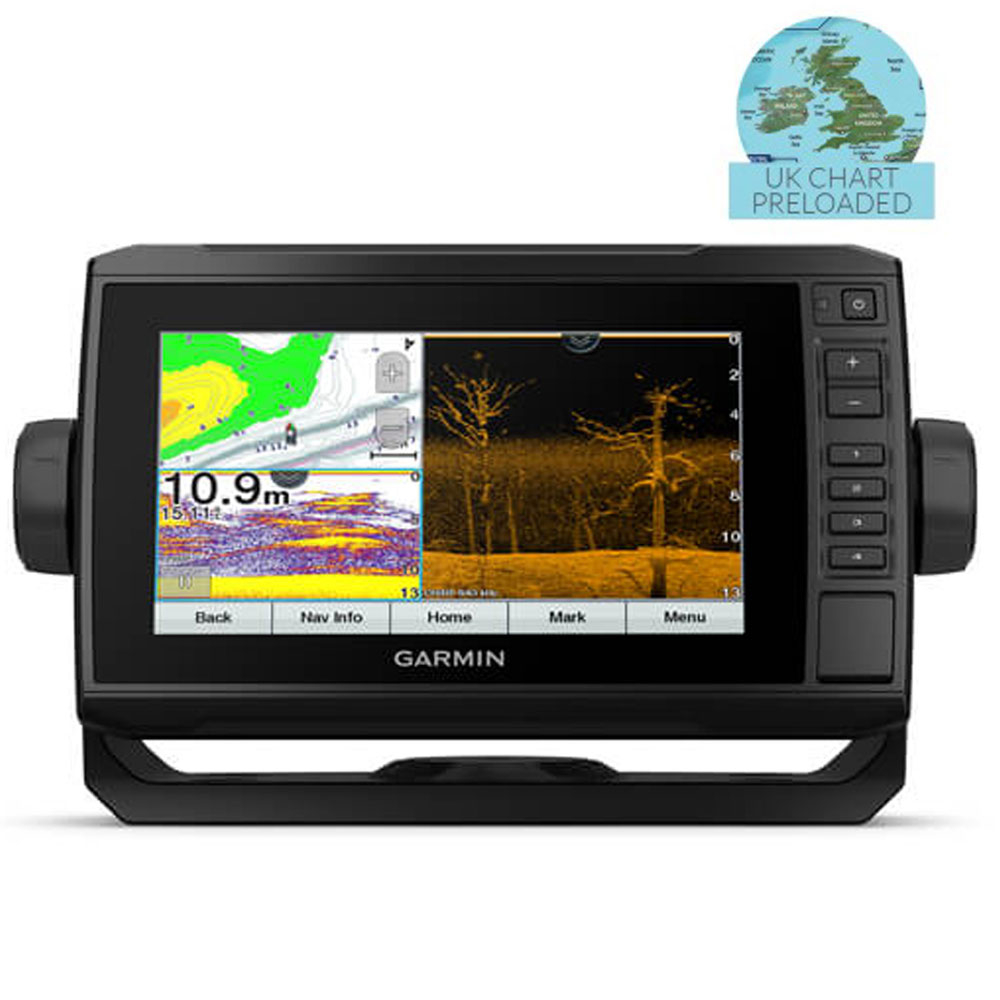

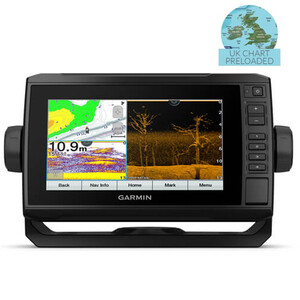

Garmin Echomap UHD 75cv Chartplotter Fishfinder Combo

The new ECHOMAP UHD 75cv chart plotter features Ultra High Definition (UHD) ClearVü sonar support for improved underwater imagery. Its preloaded with Bluechart g3 charts with Navionics data for the UK, Ireland and the NW coast of mainline Europe and includes Quickdraw Contours map drawing software.  Also compatible with optional Bluechart g3 Vision charts to add features such as Auto guidance, 3D mariners eye view, port images and satellite imagery. Supplied with a quick-release bail mount for easy removal and NMEA® 2000 and NMEA 0183 network support

• Bright, sunlight-readable 7” touchscreen with keyed assist
• Supports Ultra High-Definition ClearVü scanning sonar and Garmin high wide CHIRP traditional sonar
• Preloaded BlueChart® g3 charts for the United Kingdom, Ireland and Northwest mainland Europe coast
• Supports Panoptix™ all-seeing sonar, including Panoptix LiveScope™ sonar
• Sonar sharing capabilities with other ECHOMAP™ Plus, ECHOMAP UHD and ECHOMAP Ultra units
• NMEA 2000® and NMEA 0183 network support for autopilot and engine data
• Quick-release bail mount for fast and easy mobility
• Compatible with Force™ trolling motor for full control of the motor from the screen plus the ability to route to waypoints, follow tracks and more



Get connected with ActiveCaptain app
Our free all-in-one ActiveCaptain app allows you to manage your marine experience from nearly anywhere. It creates a simple yet powerful connection between your compatible mobile device and your chartplotter, charts, maps and the community. Use the combo’s built-in Wi-Fi to pair with the free ActiveCaptain app for access to OneChart, which allows you to update or purchase and download new charts. ActiveCaptain also gives you access to smart notifications¹, the ActiveCaptain community for marina and other points of interest details, Quickdraw Community data and more.

SailAssist features
SailAssist features include laylines, enhanced wind rose and heading and course-over-ground lines. See true and apparent wind angle and speed as well as set and drift and a glance. To help you gain a wind-maximising competitive edge, a pre-race guidance page that shows your virtual starting line along with data fields showing laylines, time to burn before the start and a race timer.

Preloaded BlueChart g3 charts (With Navionics Data)
Preloaded with highly detailed Garmin BlueChart g3 mapping covering the British Isles in their entirety, including the Thames Estuary, Caledonian Canal, Outer Hebrides, Shetland and Orkney Islands, Isle of Wight, Isle of Man, Lough Neagh, The Shannon river (up to Lough Kee) and the Irish Sea. Continental coverage from Brest, FR to Kiel, DE including the Channel Islands, the Waddenzee, the IJsselmeer, the canals of The Netherlands, the Meuse River to Liege, BE; the Rhine River to Dusseldorf, DE and the Kiel Canal.

CHIRP Sonar
The built-in sonar capabilities of ECHOMAP UHD 75cv includes CHIRP traditional sonar, one of the most sophisticated sonar technologies available for the fishing and boating public. CHIRP traditional sonar provides amazingly clear target separation and definition, because it puts even more energy onto the target than traditional sonar

Clear scanning sonar images
Garmin Ultra High-Definition (UHD) CHIRP ClearVü sonar operates at a higher frequency which gives sharper images of what’s below your boat. You clearly see structure, submerged objects and fish.

Quickdraw Contours to create your own maps
Instantly create personalised fishing maps on-screen with 1 foot contours, then tailor them to fit your needs. These are your maps — you own them. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect™.

See fish swimming in real time
All 7- and 9-inch ECHOMAP UHD units are also compatible with PanoptixTM all-seeing sonar transducers, including the Panoptix LiveScope System, so anglers can see real-time sonar imagery at video-like speed. Panoptix shows an image of fish swimming and moving toward or away from the boat – even while stationary – in real time and up to 100 feet away.



Specifications

• GPS Antenna: Internal 5Hz
• Waypoints: 5,000
• Routes: 100
• Supports AIS (tracks target ships position)
• Supports DSC (displays position data from DSC-capable VHF radio)
• NMEA 0183 in/out ports:1
• NMEA 2000 connection
• Sonar transmit power: 500 W (RMS)
• Maximum depth:2,300 ft @ 77 kHz, freshwater 1,100 ft @ 77 kHz, saltwater
• Bottom lock (shows return from the bottom up)
• Water temperature log and graph
• Sonar recording
• Sonar history rewind
• Sonar transmit power: 500 W (RMS)
• Maximum depth:2,300 ft @ 77 kHz, freshwater 1,100 ft @ 77 kHz, saltwater
• Physical dimensions: 9.8" x 5.5" x 2.0" (25 x 13.9 x 5.1 cm)
• Weight:1.7 lbs (0.77 kg)
• Water rating: IPX7
• Display size: 6.1" x 3.4"; 7.0" diagonal (15.5 x 8.6 cm; 17.8 cm diagonal)
• Display resolution: 480 x 800 pixels
• Power consumption: 15W
• Mounting options:Bail or flush

In the Box

• ECHOMAP Plus 75cv with BlueChart g3 for UK, Ireland and Northwest mainland Europe coast
• Power/data cable
• Tilt/swivel mount with quick release cradle
• Flush mount
• Protective cover
• Hardware
• Documentation
