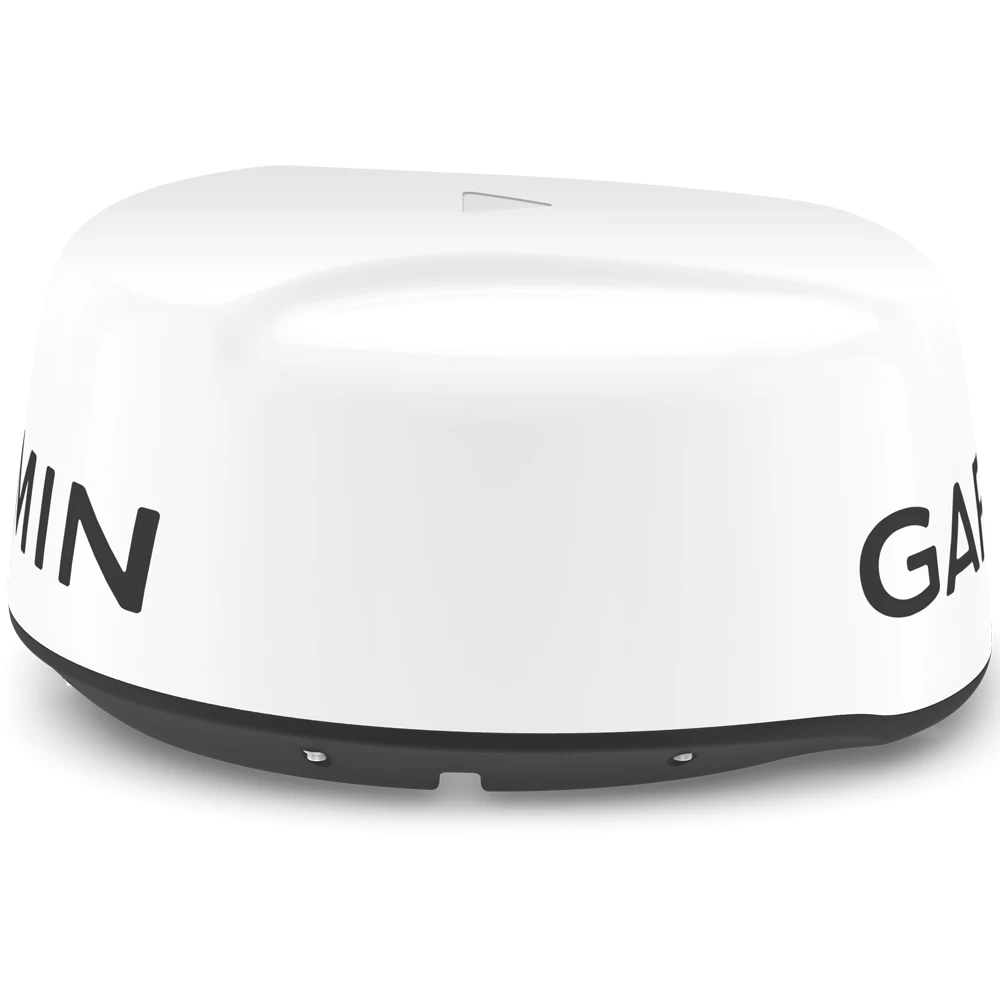

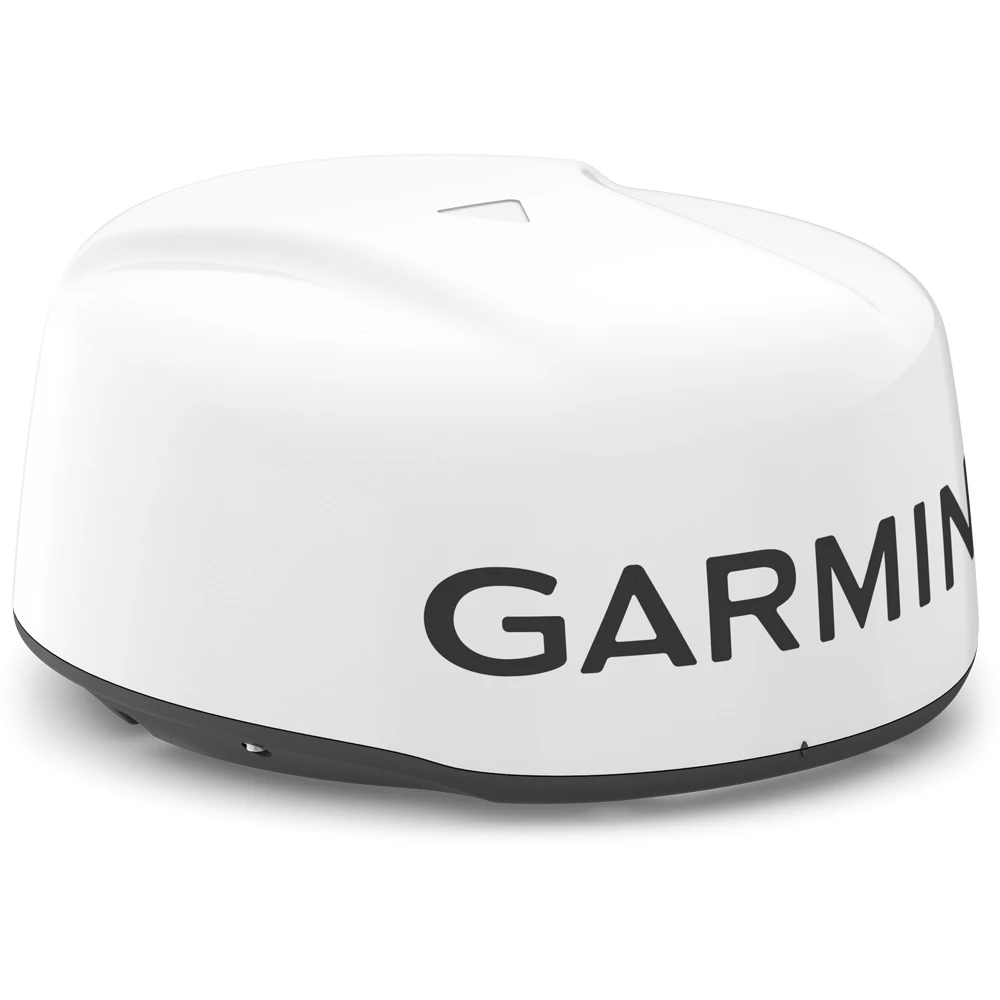

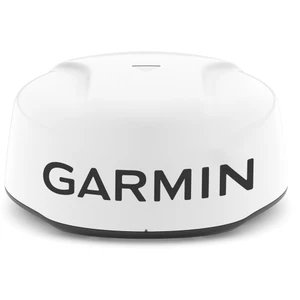

Garmin GMR 18 HD3 Radar

For high-performance scanning at an entry-level price, the GMR™ HD3 18” dome radar is designed for mariners who want to make the most of their time on the water. Combining high-definition imaging with Garmin’s latest magnetron platform technology, these robust 4-kW radars offer reliable target detection to maximize situational awareness in low-visibility conditions. The reliable dome drive motor offers low-noise operation and low power consumption to keep things running smoothly at sea. Plus, these radars easily connect to your compatible Garmin chartplotter or MFD via the Garmin Marine Network, delivering crisp, high-resolution image quality and a 36-nautical mile detection range.

• 18” magnetron dome radar features improved target detection on your compatible Garmin chartplotter/MFD
• Dual radar support allows each of your compatible chartplotters on your boat to pull data from one of two different radar sources to provide redundancy
• Dynamic Auto Gain automatically adjusts to your surroundings for optimal performance in all conditions
• Dynamic Sea Filter automatically adjusts sea clutter based on sea conditions
• MARPA technology tracks selected targets, helping users keep track of other vessels and avoid collisions (requires heading sensor, sold separately)
• Radar overlay displays radar images over maps on your compatible chartplotter (requires heading sensor, sold separately)
• The reliable dome drive motor offers low-noise operation
• Radar detection range extends from 20 meters out to 36 nautical miles

DUAL-RADAR SUPPORT

Using dual radar provides redundancy and allows each display unit on the boat to pull data from one of two different radar sources.

DYNAMIC AUTO GAIN

Gain automatically adjusts levels to optimum settings.

DYNAMIC SEA FILTER

Radar gain automatically adjusts sea clutter for calm, medium and rough sea conditions.

RADAR OVERLAY

Overlay radar images onto your chartplotter's map page. You can add an optional autopilot or heading sensor (sold separately) for best results.

MARPA TARGET TRACKING

MARPA tracks selected targets to help keep track of other vessels and avoid collisions (with appropriate sensors, sold separately).

LOW-NOISE SCANNING

The reliable GMR HD3 dome drive motor spins at a fixed 24 rpm, offering reliable, low-noise operation and minimal power consumption.

Specifications

• Maximum range: 36 nm
• Radar type: Radome
• Dimension: 20″ diameter, 9.8″ high (508 mm diameter, 248 mm high)
• Transmit power: 4 kW
• Beam width: 5.2° horizontal, 25° vertical
• Power Input: 11 - 32 V DC
• Antenna Length: 17″ (43 cm)
• Rotation speed (RPM): 24 rpm
• Minimum range: 20 metres
• Waterproof: IPX7
• Weight: 7.0 kg

In The Box

• GMR 18 HD3 dome radar
• Power cable (15 m/49.21 ft)
• Network cable (15 m/49.21 ft)
• Mounting hardware kit and template
• Installation instructions
