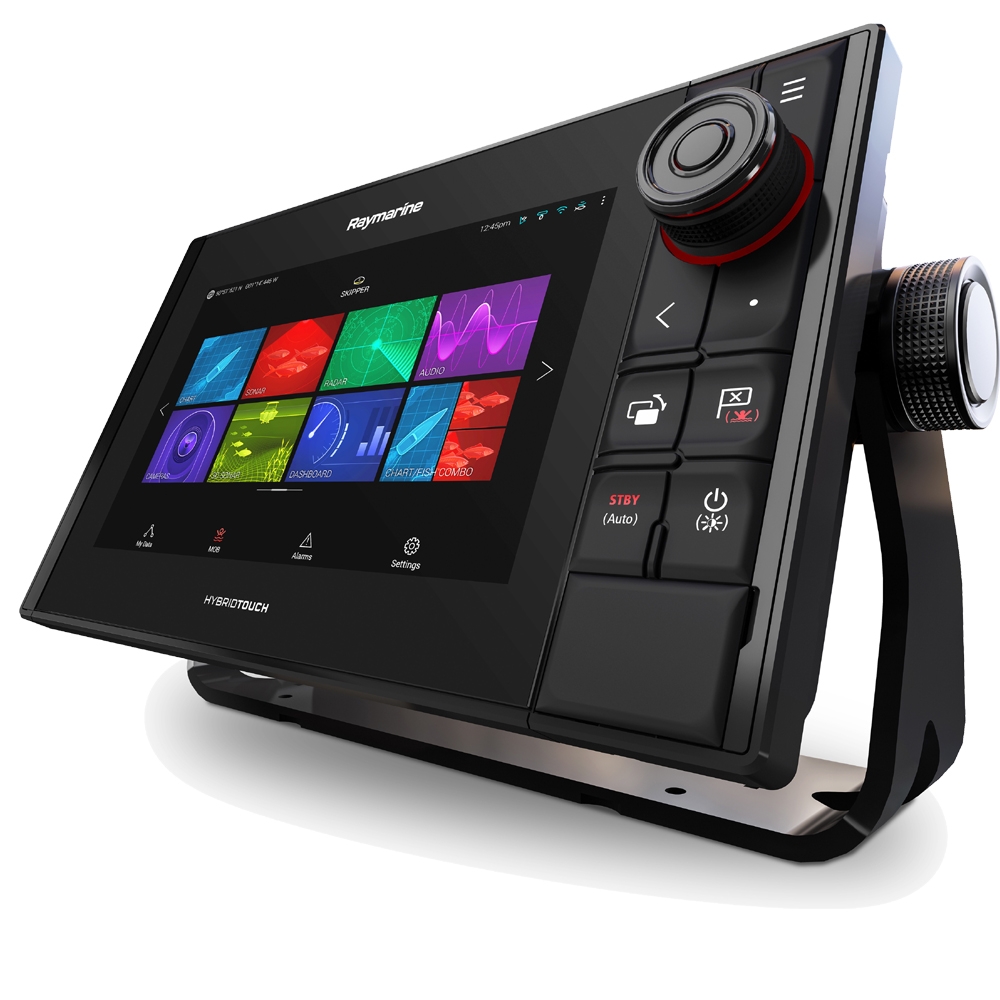

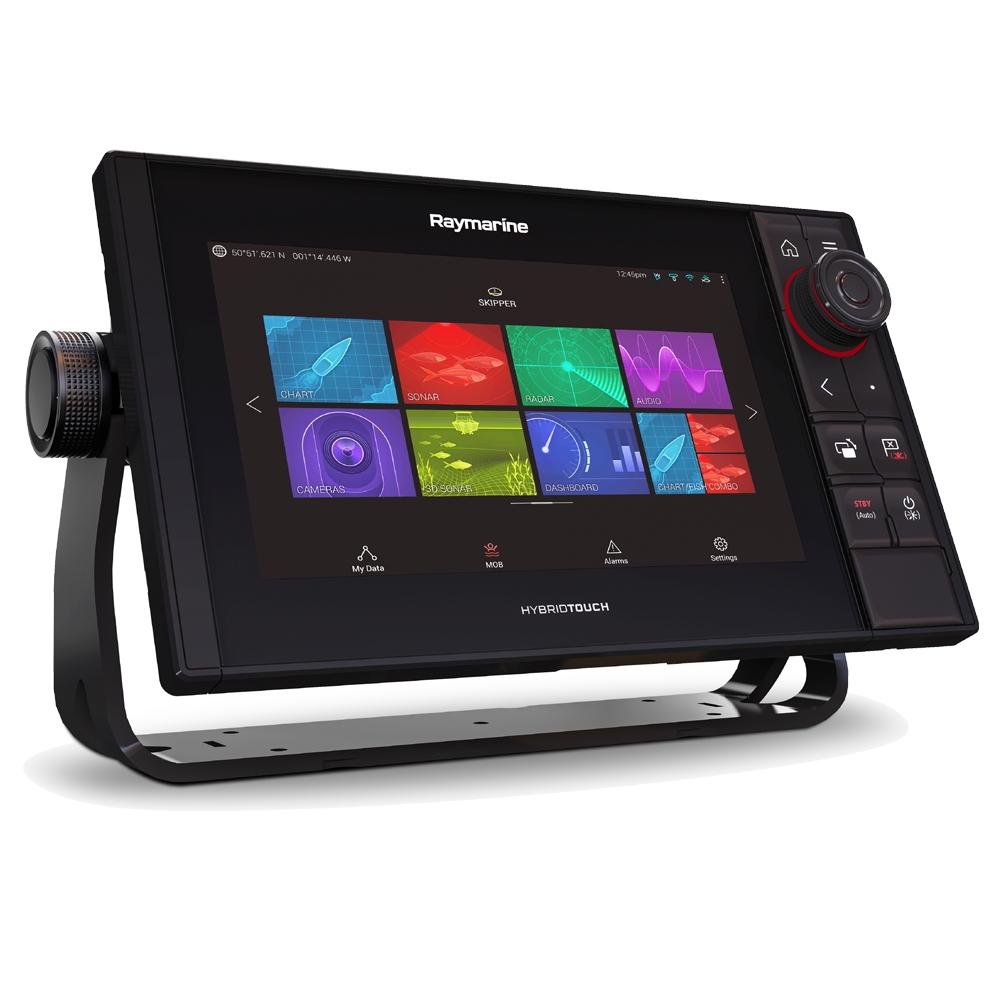

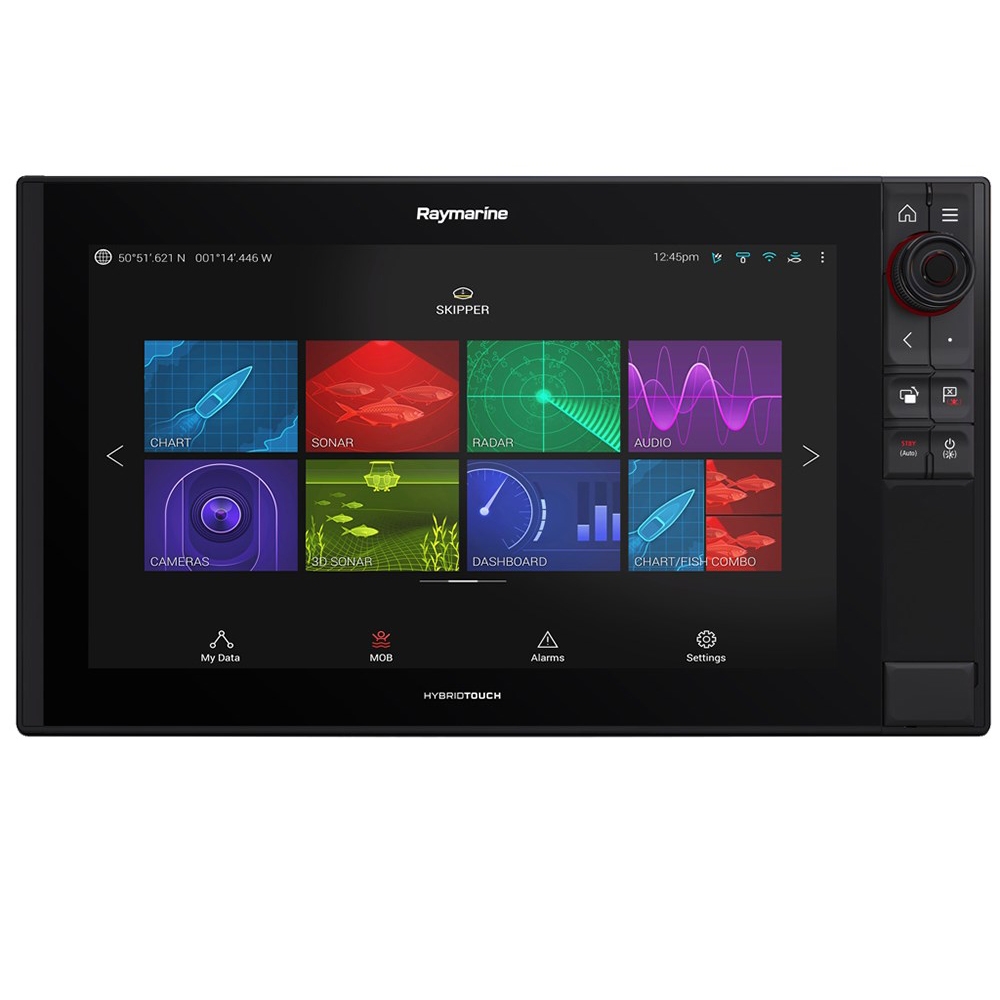

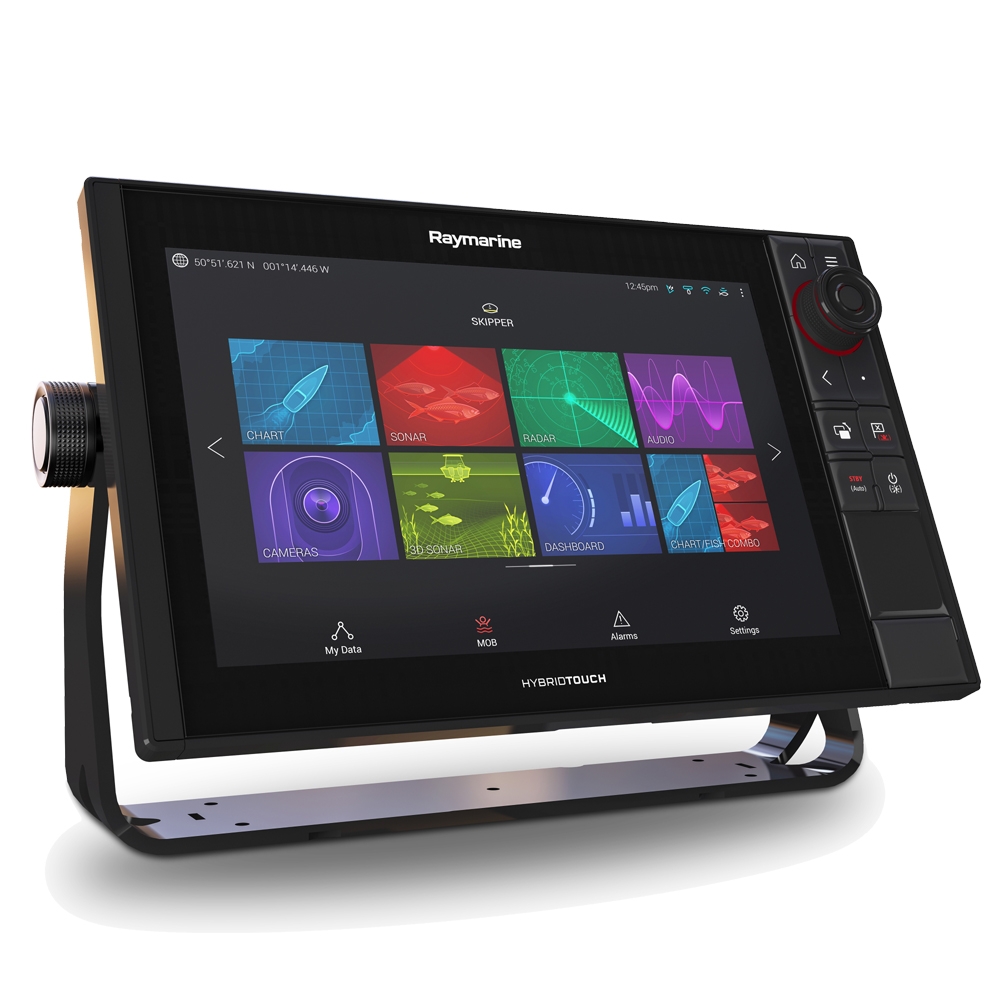

Raymarine Axiom Pro

Axiom Pro is the new standard for “all-in-one” display. And with a blazing fast quad core processor, a super bright IPS display, and the smart LightHouse OS, Axiom Pro delivers a fluid and intuitive navigation experience. Axiom Pro is easy to expand into an advanced navigation network that includes multiple Axiom displays, CHIRP radar, Evolution autopilot, FLIR thermal night vision technology, and more.

HIGH PERFORMANCE NAVIGATION

Axiom Pro is engineered for captains that want it all. Available with RealVision 3D, 1kW CHIRP sonar, and Raymarine HybridTouch control, Axiom Pro is the new standard for “allin-one” multifunction devices. And with a blazing fast quad core processor, a super bright high-defi nition IPS display, and the smart LightHouse OS, Axiom Pro delivers a fl uid and intuitive navigation experience. Axiom Pro is easy to expand into an advanced navigation network that includes multiple Raymarine Axiom displays, CHIRP radar, Evolution autopilot, FLIR thermal night vision technology, and more.

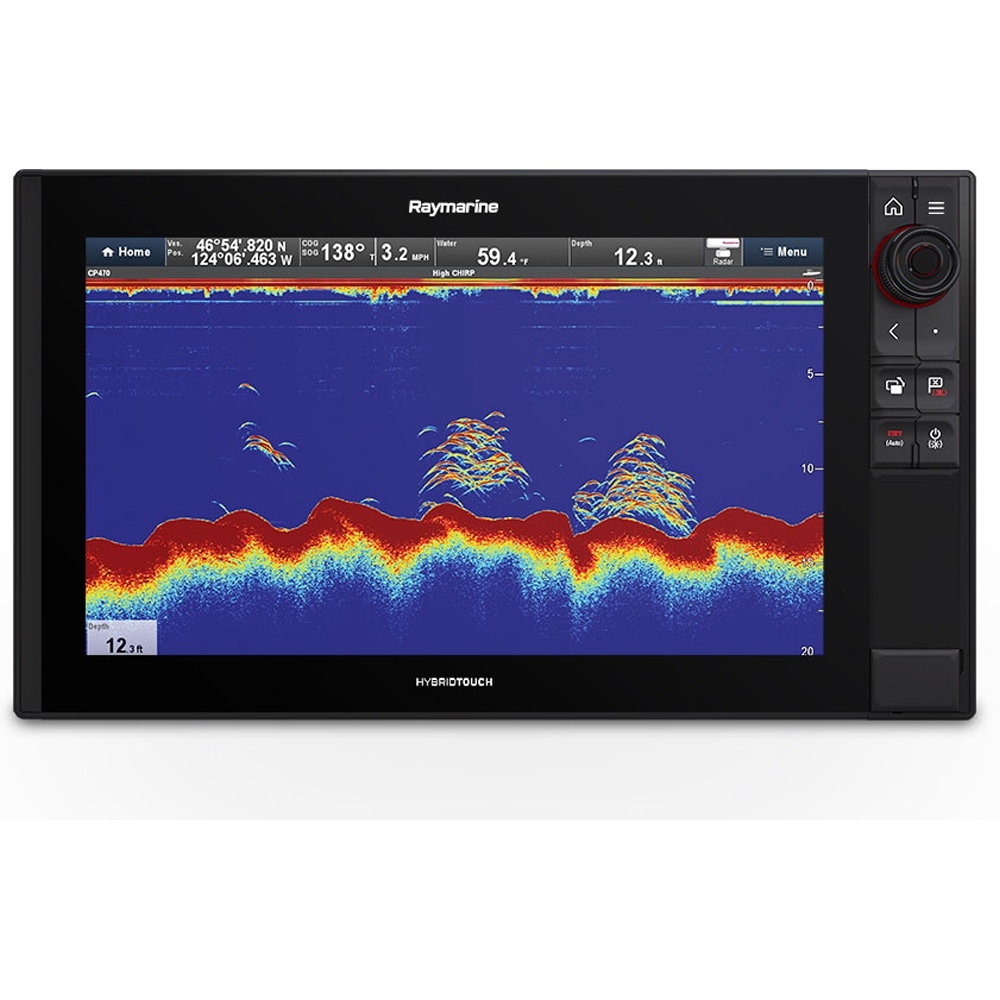

Sonar is Standard

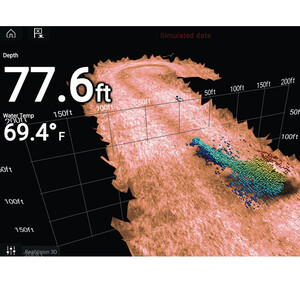

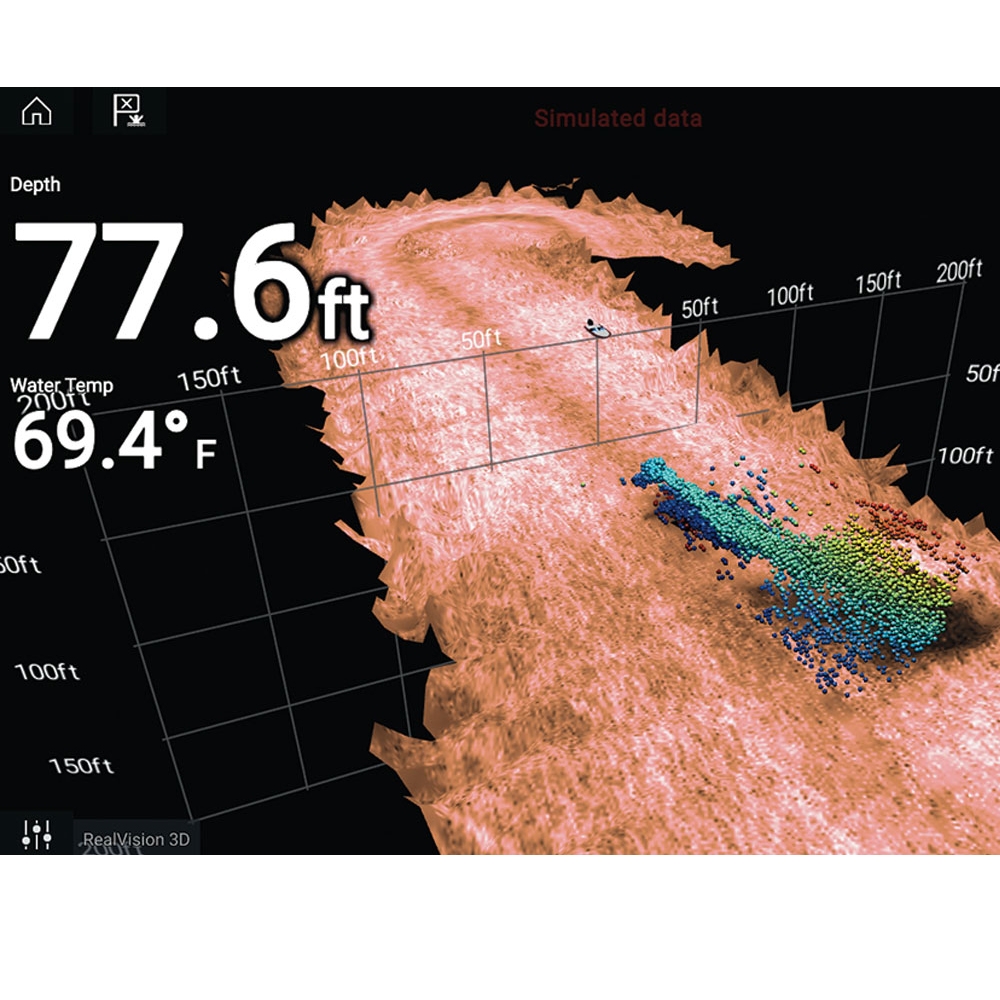

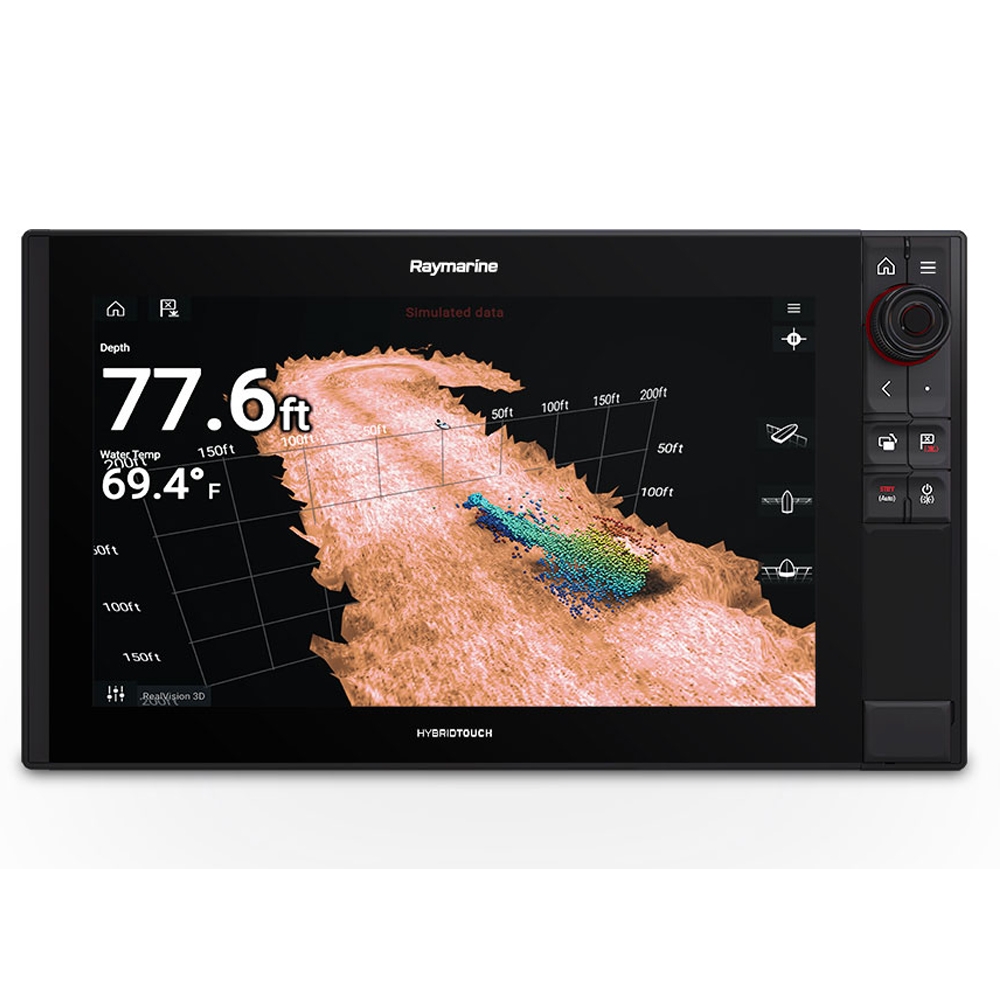

Axiom Pro is available with a single channel High CHIRP sonar built in. For offshore anglers choose Axiom Pro with RealVision 3D sonar plus a 1kW sonar built-in.

Intuitive Control

Simple-to-use Lighthouse 3 OS with HybridTouch control gives captains the flexibility of multi-touch interaction and rough weather keypad control.

Powerful Performance

Quad Core processing combined with super bright, high definition IPS display technology delivers blazing speed and stunning clarity.

• Powered by the all new, fast and fluid LightHouse 3 OS
• Blazing-fast quad core performance
• Rugged and sleek, all-glass construction for any helm
• Fast 10 Hz 72 Channel GPS/GLONASS Receiver for rapid position updates and smooth on screen tracking

New LightHouse 3 OS is fast, fluid, and easy to learn. An uncluttered interface that is easily personalized for your style of navigating

Rugged, All-glass Touch Screen Display delivers a big screen experience in a small footprint. Optical bonding eliminates fogging and delivers brighter colours and great sunlight visibility

Support for the best charts from Navionics including Navionics+ and Platinum +

Built-in Wi-Fi lets you to stream and control Axiom right from your smartphone or tablet. You can also sync Axiom’s waypoints, routes, and charts with Navionics mobile apps.

Radar Compatible with Quantum CHIRP Radar and Raymarine’s family of Digital, HD, and Super HD radars.

Mounting: AXIOM can be surface, bracket or rear-panel mounted using dedicated hardware options

USB Port for external drives, remote card readers and Smartphone charging.

Ready to Network with Raynet Ethernet and NMEA2000. Connect multiple Axiom displays or expand with Quantum, HD radar, IP cameras, engine gauges, autopilots, instruments, and more.

Marine Audio Control – Turn up the volume and control NMEA2000 compatible marine audio systems

Uncluttered Radar New radar modes simplify operation along with quick access to sensitivity controls and enhanced status and range displays. LightHouse Live View Menu lets you see radar adjustments in real time.

User Profiles LightHouse 3 User Profiles saves your personal home screen and configuration preferences.

New Chart Modes Uncluttered menus with quick access to Simple, Detailed, and Fishing chart modes.

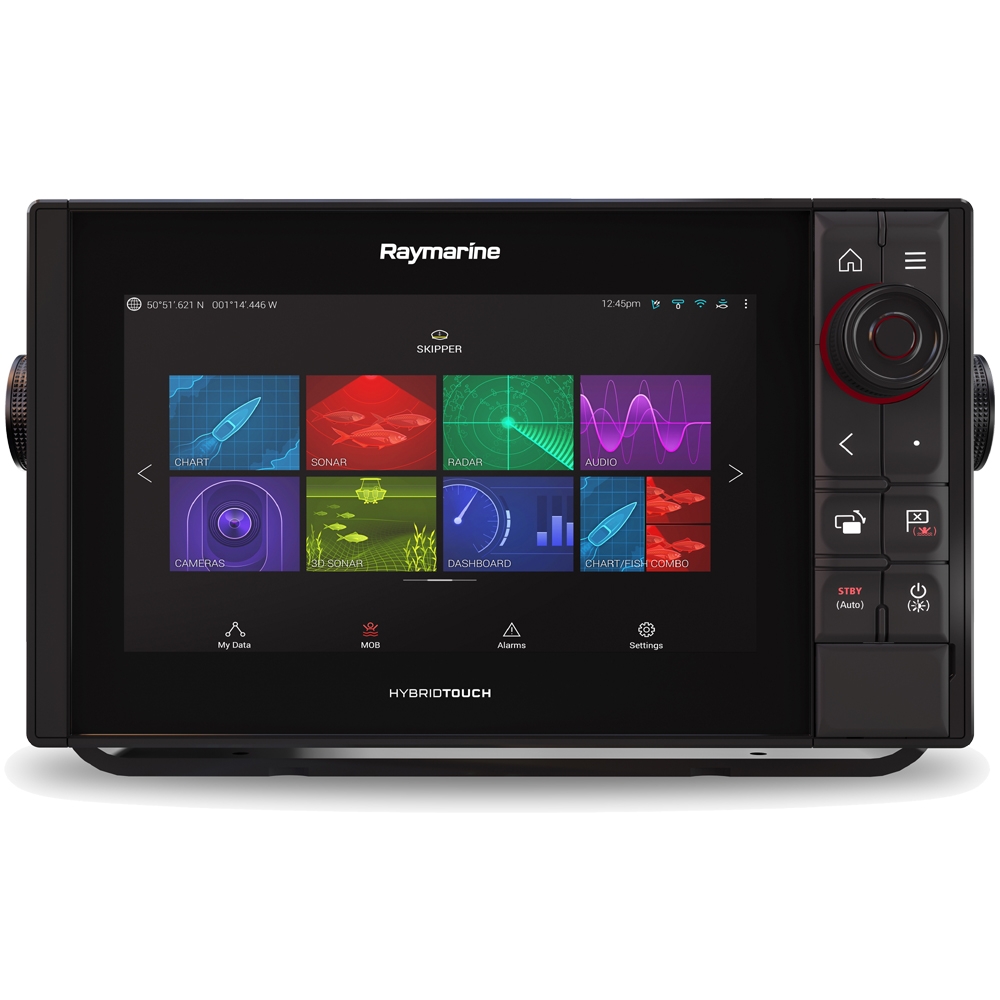

Specifications

• Display Size 9" IPS Optically Bonded LCD
• Display Resolution 1280 x 720 WXGA
• Display Type Multitouch
• Brightness 1,200 nits
• Viewing Angle Degrees: 88 / 88 / 88 / 88 (Top / Bottom / Left / Right)
• Dimensions 300 x 174 x 65mm (11.9" x 6.85" x 2.56")
• Weight 1.52kg (3.35lbs)
• Mounting Top, Front, Bracket
• Waterproof Rating IPX6 / IPX7
• Operating Temperature -25deg C to +55deg C (-13deg F to 131deg F)
• Storage Temp -30deg C to +70deg C (- 22deg F to 158deg F)
• Voltage 12 & 24VDC (8 V to 32 VDC)
• Waterproofing IPX6
• Sonar Type - Built-in High CHIRP
• Max Depth CHIRP Sonar = 900 feet (274 m)
• Video/Camera: 1 x Analogue input (BNC) Up to 10 IP Cameras
• Radar - Quantum, Digital, HD Color and Super HD Color Radars
• AIS Compatible
• Ports: NMEA 0183, NMEA 2000, Ethernet, USB, Wifi, Bluetooth, Dual Micro-SD

In The Box

• Axiom 9 Pro-S MFD
• Surface and trunnion mounting kits
• Screen Cover
• Mounting hardware
• Power/data cable
• Installation instructions

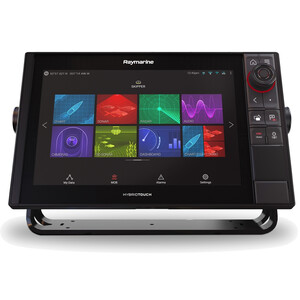

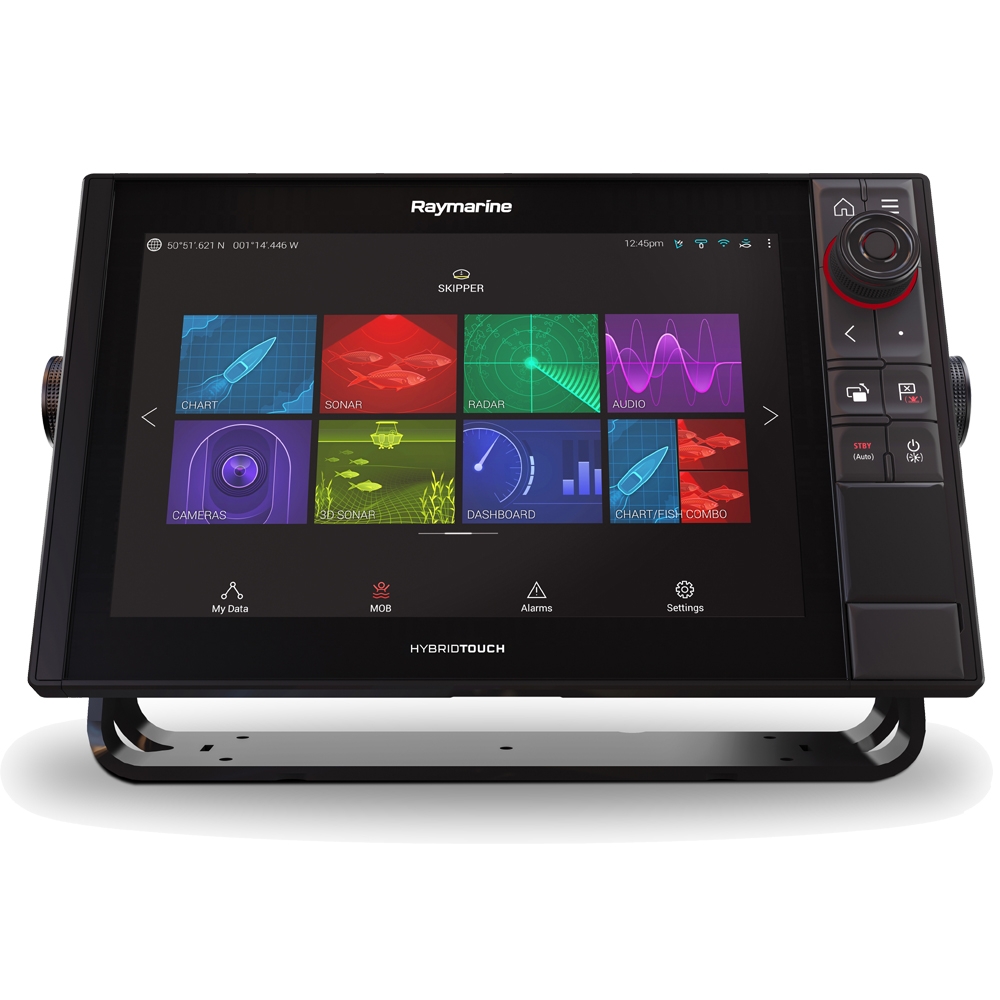

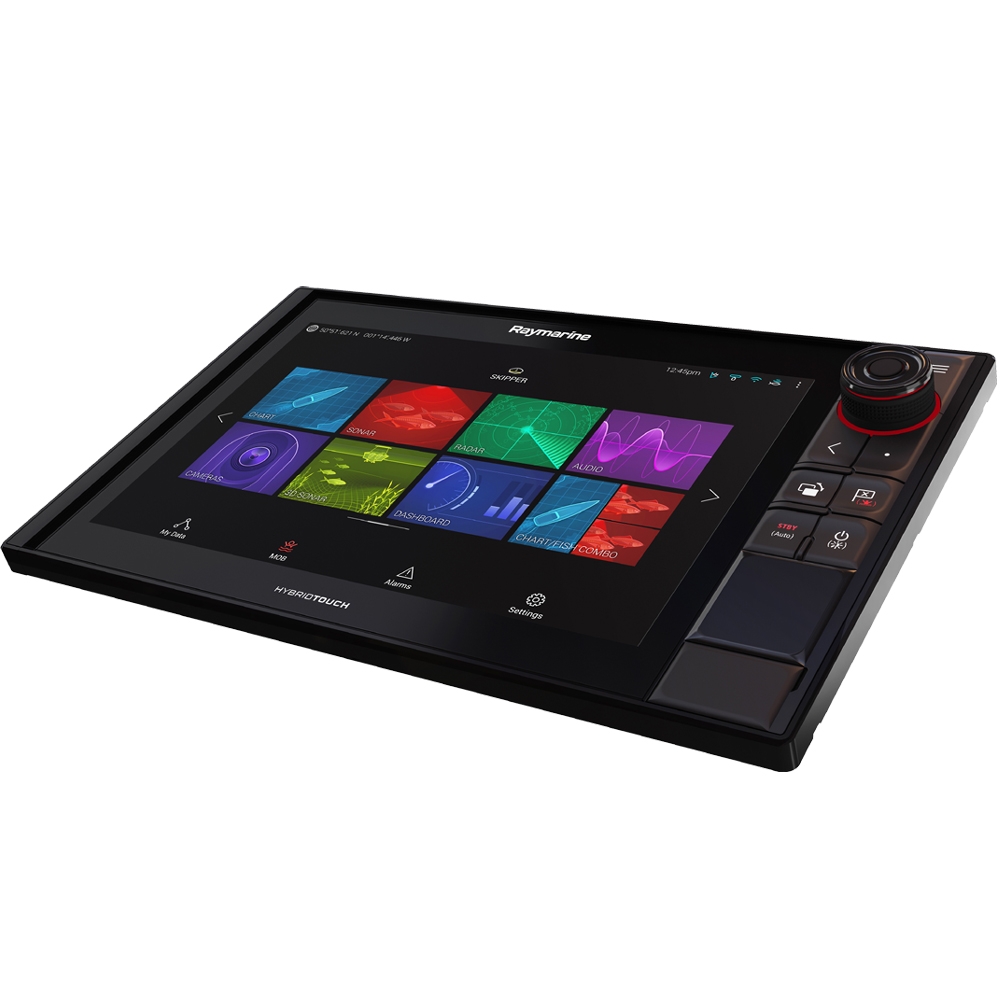

Specifications

• Display Size 12.1" IPS Optically Bonded LCD
• Display Resolution 1280 x 800 WXGA
• Display Type Multitouch
• Brightness 1,200 nits
• Viewing Angle Degrees: 88 / 88 / 88 / 88 (Top / Bottom / Left / Right)
• Dimensions 358 x 223 x 65mm (14.1" x 9.17" x 2.56")
• Weight 2.04kg (4.5lbs)
• Mounting Top, Front, Bracket
• Waterproof Rating IPX6 / IPX7
• Operating Temperature -25deg C to +55deg C (-13deg F to 131deg F)
• Storage Temp -30deg C to +70deg C (- 22deg F to 158deg F)
• Voltage 12 & 24VDC (8 V to 32 VDC)
• Waterproofing IPX6
• Sonar Type - Built-in High CHIRP
• Max Depth CHIRP Sonar = 900 feet (274 m)
• Video/Camera: 1 x Analogue input (BNC) Up to 10 IP Cameras
• Radar - Quantum, Digital, HD Color and Super HD Color Radars
• AIS Compatible
• Ports: NMEA 0183, NMEA 2000, Ethernet, USB, Wifi, Bluetooth, Dual Micro-SD

In The Box

• Axiom 12 Pro-S MFD
• Surface and trunnion mounting kits
• Screen Cover
• Mounting hardware
• Power/data cable
• Installation instructions
